emerald Quick Installation Guide
15
Fail secure lock
The fail secure configuration means that in the event of a power loss to the terminal the lock
will remain secure. A lock that requires power to open such as a shear lock must be used.

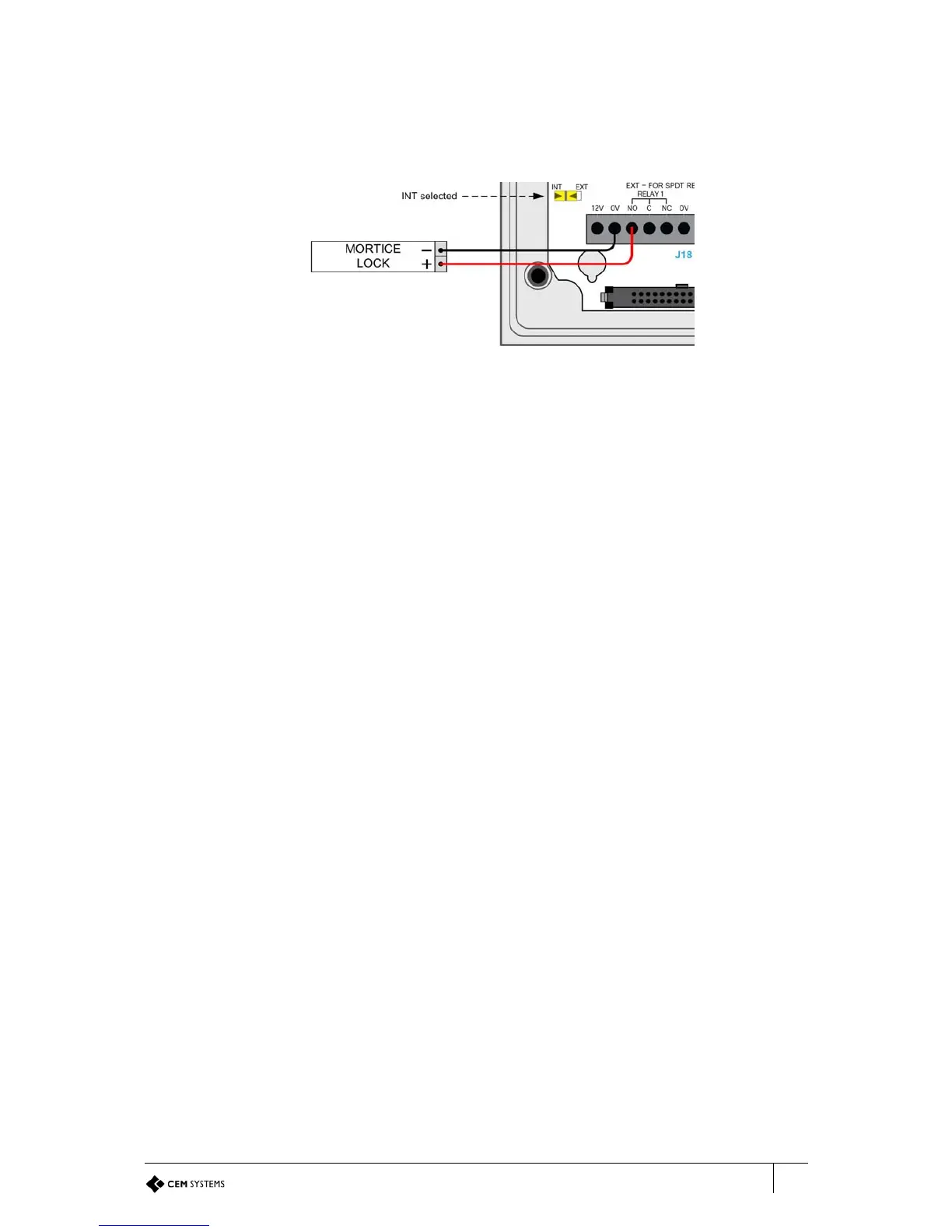

Figure 12 Illustration of wiring for a fail secure lock
