CHAPTER 6 : Diagnostics and Testing
36
Input tests
The default Input tests screen displays the status of each of the four inputs.

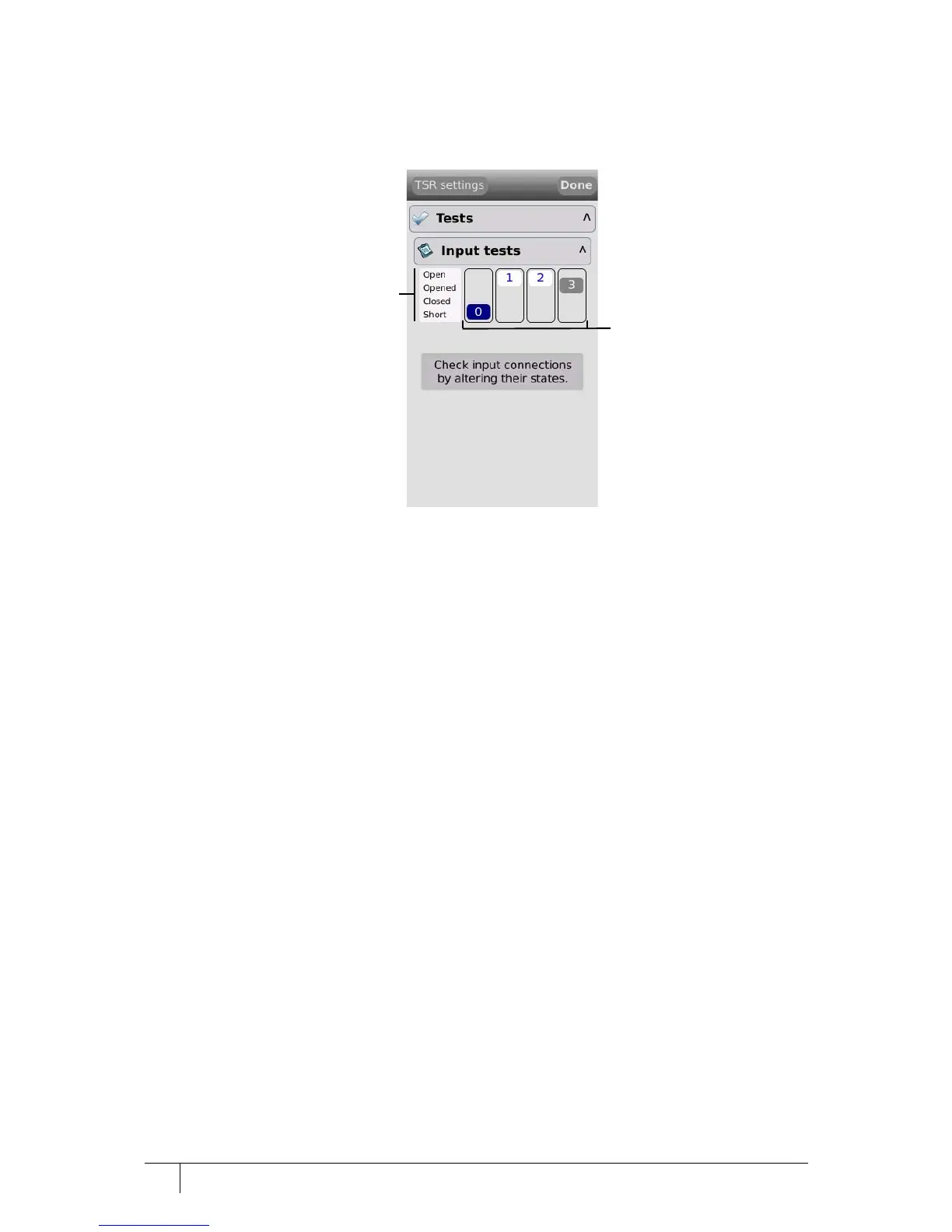

Figure 28 The input tests screen
Two state input test
When an input has been wired in a 2 state open and closed configuration only the Open and
Short tests can be administered.
Open - The input is opened.
Short - The input is closed.
Four state input test
When an input has been wired in a 4 state configuration as described in section 3.9.1 on page
21, all four input state tests can be administered.
Open - Indicates a tamper cut fault condition.
Opened - The input is open.
Closed - The input is closed.
Short - Indicates a tamper short fault condition.
Inputs. Each number
correlates with a
terminal input number
as detailed in chapter
3. e.g input 0 is door
position.
The vertical position
of each highlighted
number indicates the
input state as defined
on the left of the
screen.
Input state. To test the
inputs, change the
state of the input e.g.
open and close the
door to test if the
terminal is registering
the state change.
