Note:
Accuracy: Given at 18
to 28
o
C (64
to 82
℉), less
than 80 % RH.
Field of View: Make sure that the target is larger than
the unit’s spot size. The smaller the target, the closer
you should be to it. When accuracy is critical, make
sure the target is at least twice as large as the spot
size.

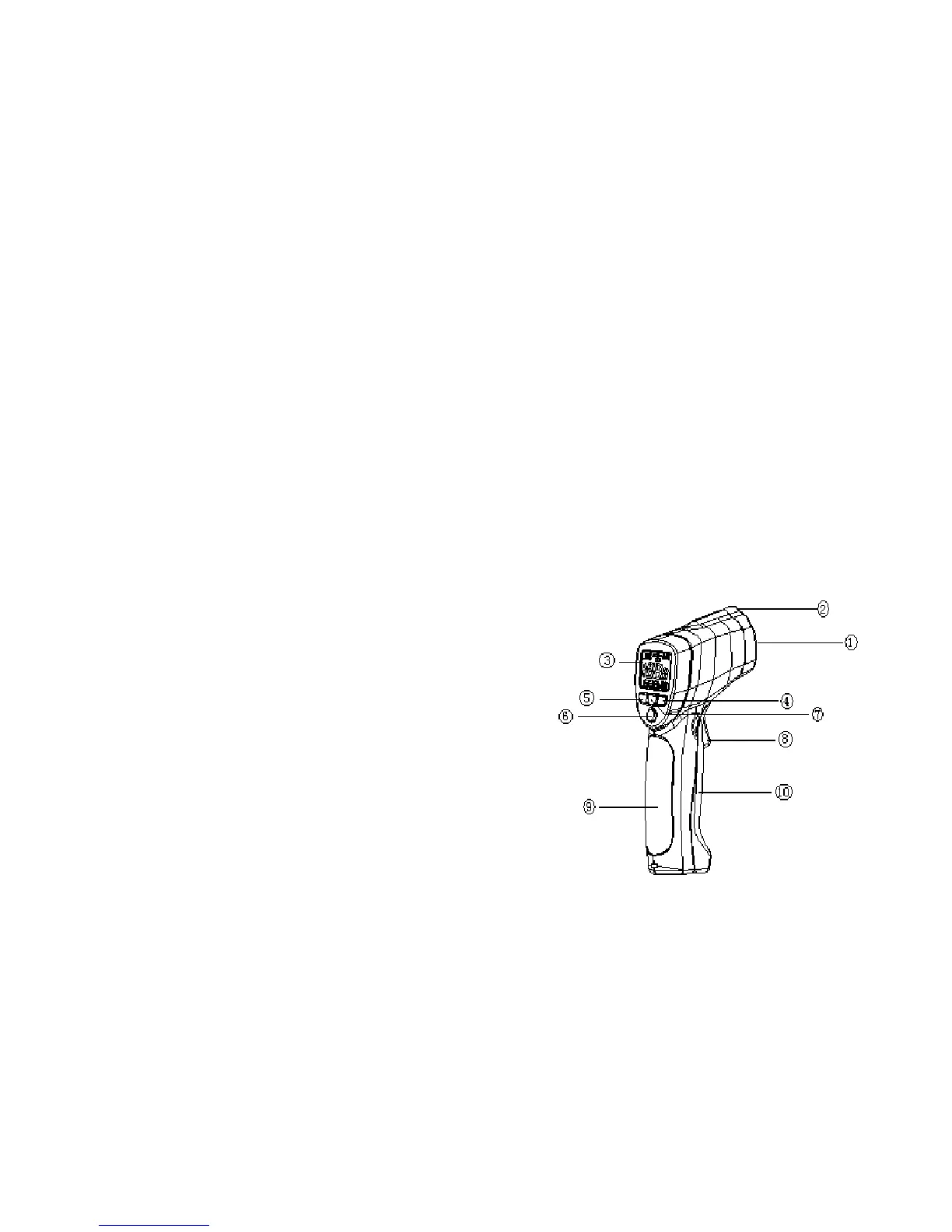

3. FRONT PANEL DESCRIPTION
① IR sensor
② Laser pointer beam
③ LCD Display
④ down button
⑤ up button
⑥ mode button
⑦ laser/backlight button
⑧ Measurement Trigger
⑨ Handle Grip
⑩
⑩⑩
⑩
Battery Cover
