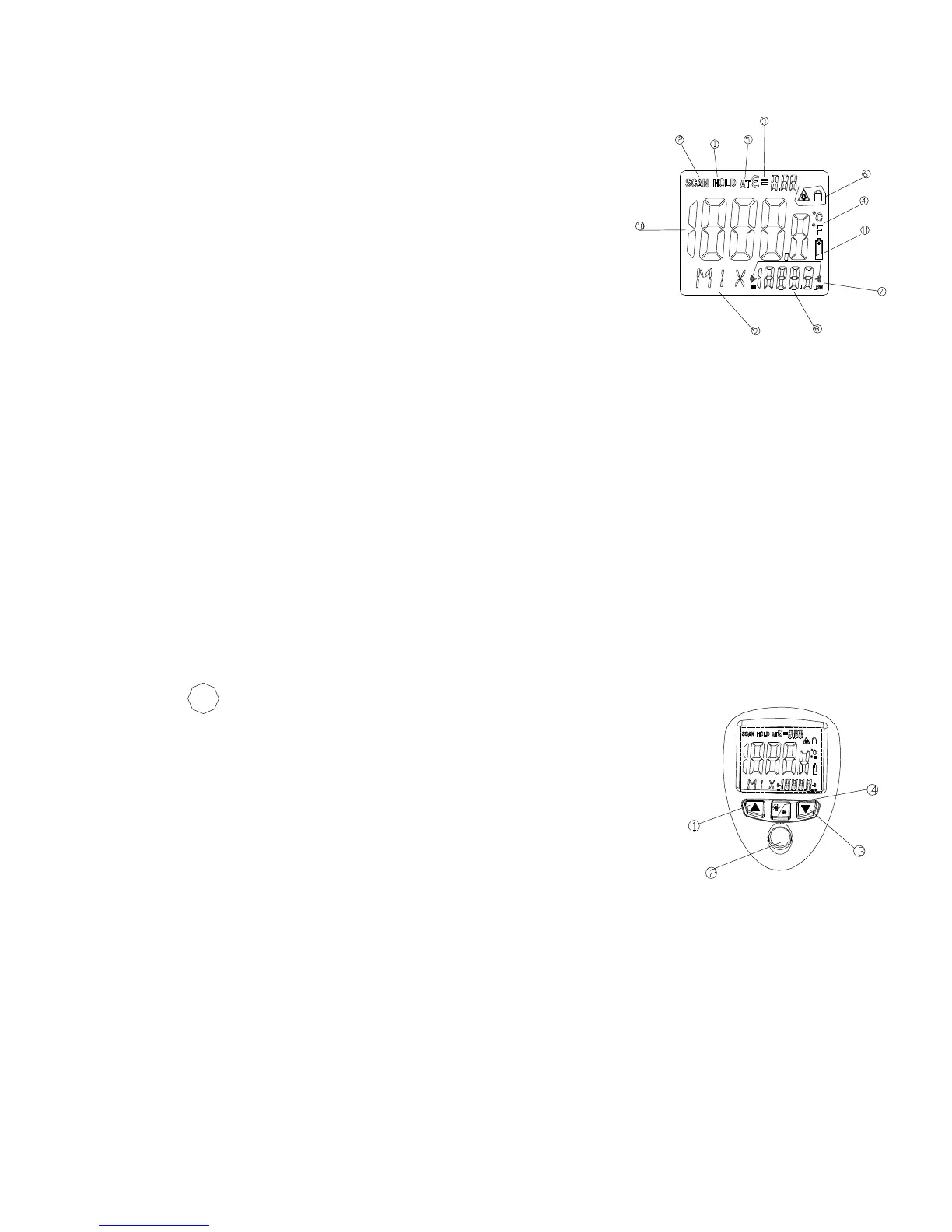

4. INDICATOR
① Data hold
②
②②
② Measuring indication
③
③③
③ Emissivity symbol and value
④
④④
④ ℃/℉ symbol
⑤
⑤⑤
⑤ Auto obtain Emissivity
⑥
⑥⑥
⑥ lock and laser” on” symbols
⑦
⑦⑦
⑦ High alarm and low alarm symbol
⑧
⑧⑧
⑧ Temperature values for the MAX, MIN, DIF, AVG
HAL, LAL. And TK
⑨
⑨⑨
⑨ Symbols for EMS MAX, MIN, DIF, AVG, HAL, LAL
and TK
⑩
⑩⑩
⑩ Current temperature value
11
Low battery
5. Buttons
①
①①
① pbutton(forEMS,HAL,LAL)
②
②②
② MODE button
(for cycling through the mode loop)
③
③③
③ Down button (for EMS,HAL,LAL)
④
④④
④ Laser/Backlight on/off button
(pull trigger and press button to activate
laser/backlight)
MODE
