For a different combination of the type or position of the
weights on the rim, press the buttons near the rim symbol
(
CORRECTION MODES).

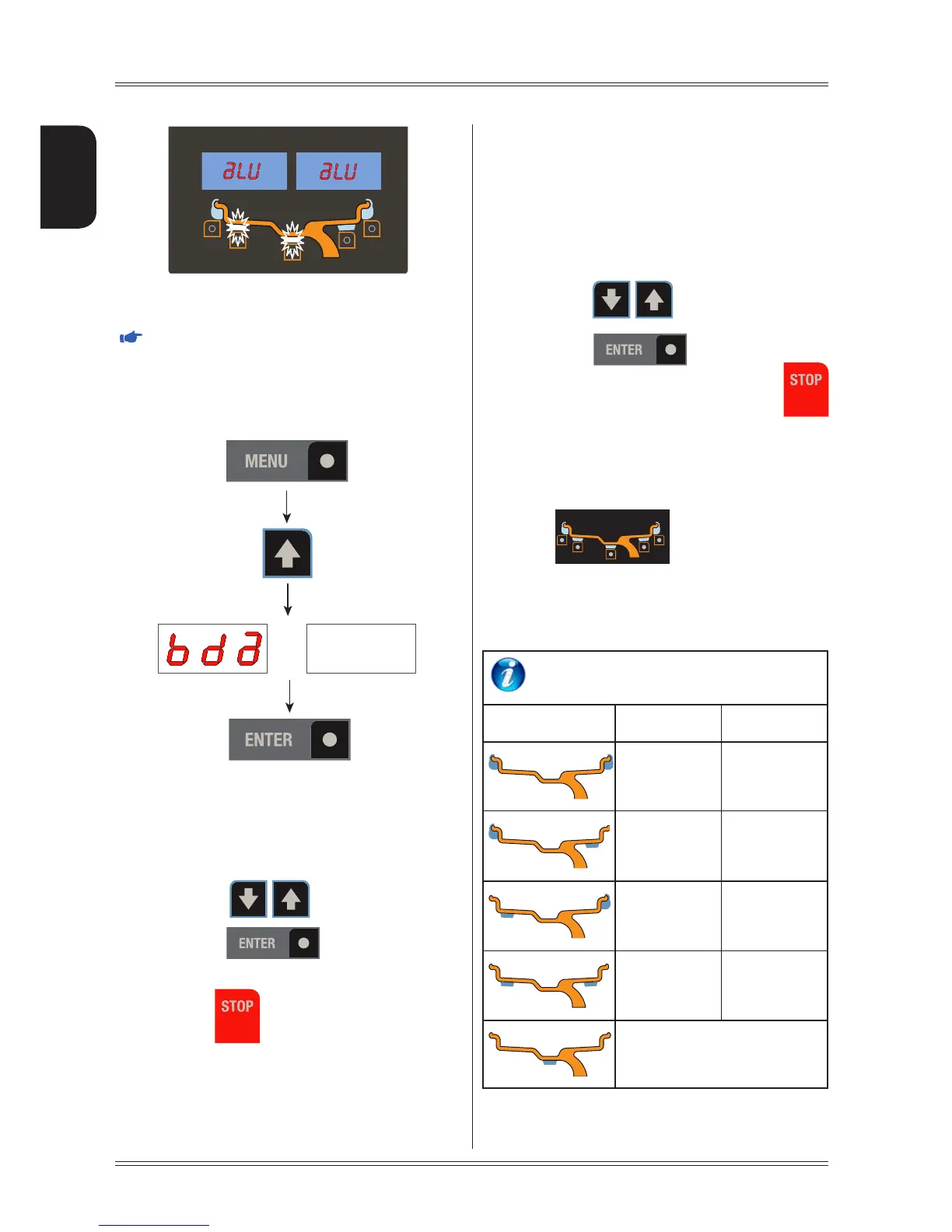

5.1.3 Modifying set dimensions
If you enter the wheel dimensions incorrectly, you can
change them without having to repeat the balancing spin:
5.1.3.1 Standard correction method
Set the value of the dimensions in sequence:
b=width
d=diameter
a=distance
using the buttons
.
Press the button
to confirm the setting
and go to the next dimension.
Press the button
at any time to interrupt dimension
setting and return to the main screen.
5.1.3.2 Correction method with adhesive
weights (ALU)
Set the value of the dimensions in sequence:
dI=inside weight distance
dE=outside weight distance
aI=inside weight distance
aE=outside weight distance
using the buttons
.
Press the button
to confirm the setting
and go to the next dimension. Press the button
at any time to interrupt dimension setting and return to
the main screen.
5.1.4 Correction modes
After dimension acquisition in standard mode, pressing
the buttons
1
2
3
4
5
you can select one of the
following correction modes.
The adhesive weight application distance and diameter
are deduced from the dimensions acquired in standard
mode through some fixed parameters.
WEIGHT APPLICATION POSITION
Correction type Inside Outside
Clip-on weight at
12 o’clock
Clip-on weight at
12 o’clock
Clip-on weight at
12 o’clock
Adhesive weight
at 12 o’clock
Adhesive weight
at the point
indicated by the
internal laser
Clip-on weight at
12 o’clock
Adhesive weight
at the point
indicated by the
internal laser
Adhesive weight
at 12 o’clock
Adhesive weight at the point
indicated by the internal laser
To Next Page
