Center 211 - Instrument Familiarization; Symbol Definition

3
ACV (Autorange)
Range Resolution Accuracy Input Impedance Overload Protection
400V 0.1V
750V 1V
±
( 1.2%rdg + 5dgts )
50 ~ 500Hz
10M
Ω
1200Vpp
DCV (Autorange)
Range Resolution Accuracy Input Impedance Overload Protection
400V 0.1V
1000V 1V
±
( 0.75%rdg + 2dgts ) 10M
Ω
1200Vpp
Ohm ( Resistance ) (Autorange)
Range Resolution Accuracy Overload Protection
400
Ω
0.1
Ω
4000
Ω
1
Ω
±
( 1%rdg + 3dgts ) 600Vrms
( Diode )
Range Active Region Overload Protection
0.6mA 600Vrms
Continuity ( )
Range Active Region Overload Protection
<100
Ω
600Vrms
Frequency (Hz) (Autorange)
Function Range Resolution Sensitivity Accuracy
4k 1Hz 2Arms
A-Hz
10k 10Hz 5Arms
(20~10KHz)
±
( 0.1%rdg + 1dgts )
4K 1Hz 5Vrms
V-Hz
10K 10Hz 10Vrms
(10~10KHz)
±
( 0.1%rdg + 1dgts )

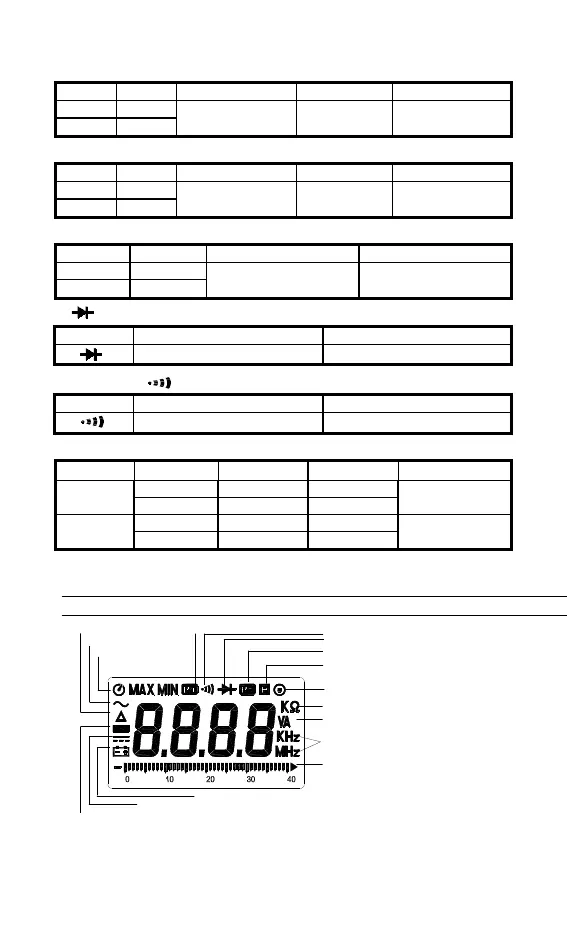

III. Instrument Familiarization:
Symbol Definition:
Polarity indication
Direct Source indication
Low battery indication
Relative indication Positive Peak detect indication
Alternative
Auto Power Off indication
Continuity with beeper
Diode function indication
Negative Peak detect indication
Data Hold indication
Manual range indication
Resistance measurement indication
Voltage & Current measurement indication
Frequency Measurement indication
Analog Bar display
