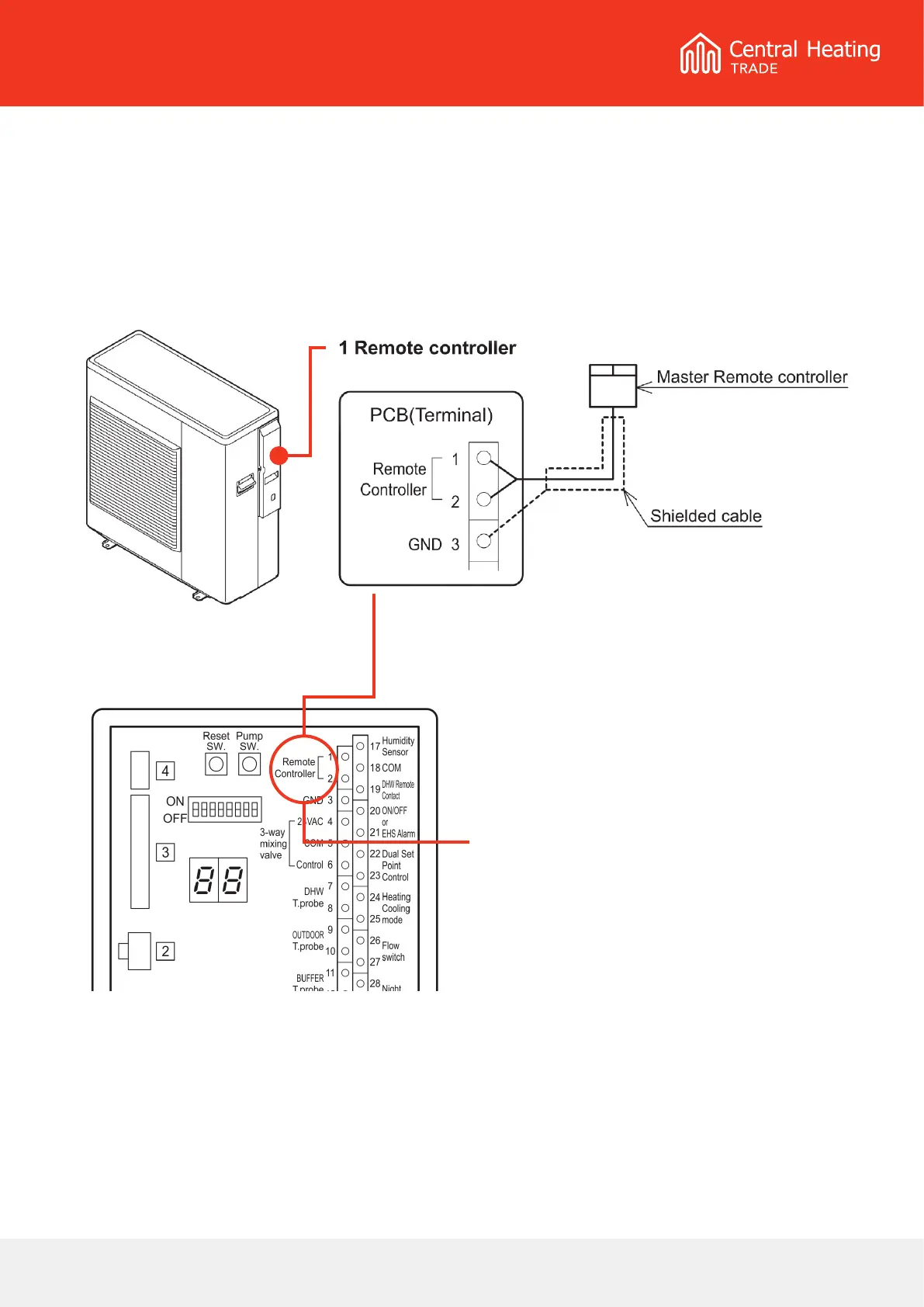

Heat Pump Controller (connection)
The Chofu heat pump controller must be installed to manage the heat pump operation. The controller is not rated
for outdoor use, installation indoors in a dry place is recommended; i.e. garage or service cupboard.
Terminal #1 and #2.
Low voltage, not polarity sensitive.
DO NOT APPLY 230V TO THESE TERMINALS.
