Page 5
For technical questions, please call 1-800-444-3353.
SKU 32879
SPECIFICATIONS
Maximum
Capacity
20 Tons
(40,000 pounds)
Oil Type Hydraulic Oil
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, make sure that the
item is intact and undamaged. If any parts
are missing or broken, please call Harbor
Freight Tools at 1-800-444-3353 as soon
as possible.

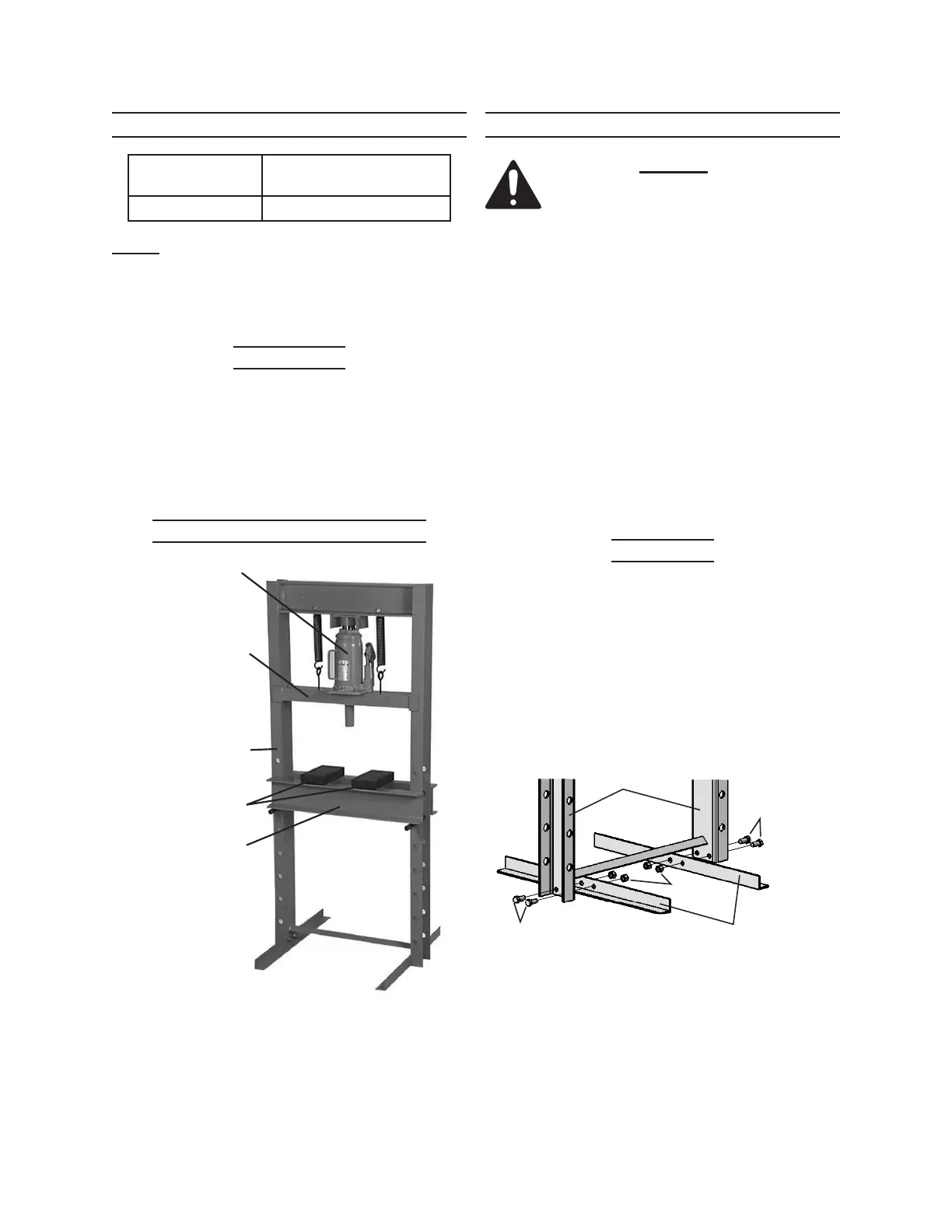

Components and Controls
Jack Plate (2)
Figure 1
Bottle Jack (14)
Arbor Plates (3)
Press Apron (5)
Press Frame (1)
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect tool before use, looking
for damaged, loose, and
missing parts. If any problems
are found, do not use tool until
repaired.
Components of this Shop Press
are heavy. You will need a
helper to safely assemble this
product.
Assembly
Using the Components photo (left)
and the Parts List and Diagram near
the end of the manual, lay out and
identify all pieces before assembly.
Have a helper stand the Press Frame
(1) upright and hold it steady until the
Feet (4) are secured in place.
Foot Bolt (9)
Press Frame (1)
Nut (12)
Foot (4)
Foot Bolt (9)
Figure 2
1. Slide each Foot (4) under the Press
Frame legs, lining up the bolt holes,
as shown above. Insert the Foot Bolts
(9) through the Press Frame (1) and
the Feet (4), then secure in place with
the Nuts (12).
To Next Page
