Central Hydraulics 37555 - Parts Identification; Parts List and Quantities; Assembly Parts Illustration

Page 6SKU 37555
PARTS LIST
Part Description Qty
01 Base 1
02 Post 1
03 Grease Fitting 1
04 Boom Retracted 1
05 Pin 12x84 1
06 Cotter Pin 3
07 Extendible Boom 1
08 Pin, Boom Extendible 1
09 Windlass 1
10 Hook and Steel Cable 1
11 Angle Steel 2
12 3 Ton Jack 1
13 Bearing 1
14 Jack Support 1
15 Washer 1
16 Spring Washer 1
17 Bolt M6x15 1
18 Pin 12x78 1
19 Pin 12x48 1
20 Lock Pin 1
21 Jack Handle 1
22 Bolt M12x50 5
23 Washer 5
24 Spring Washer 5
25 Nut M12 5

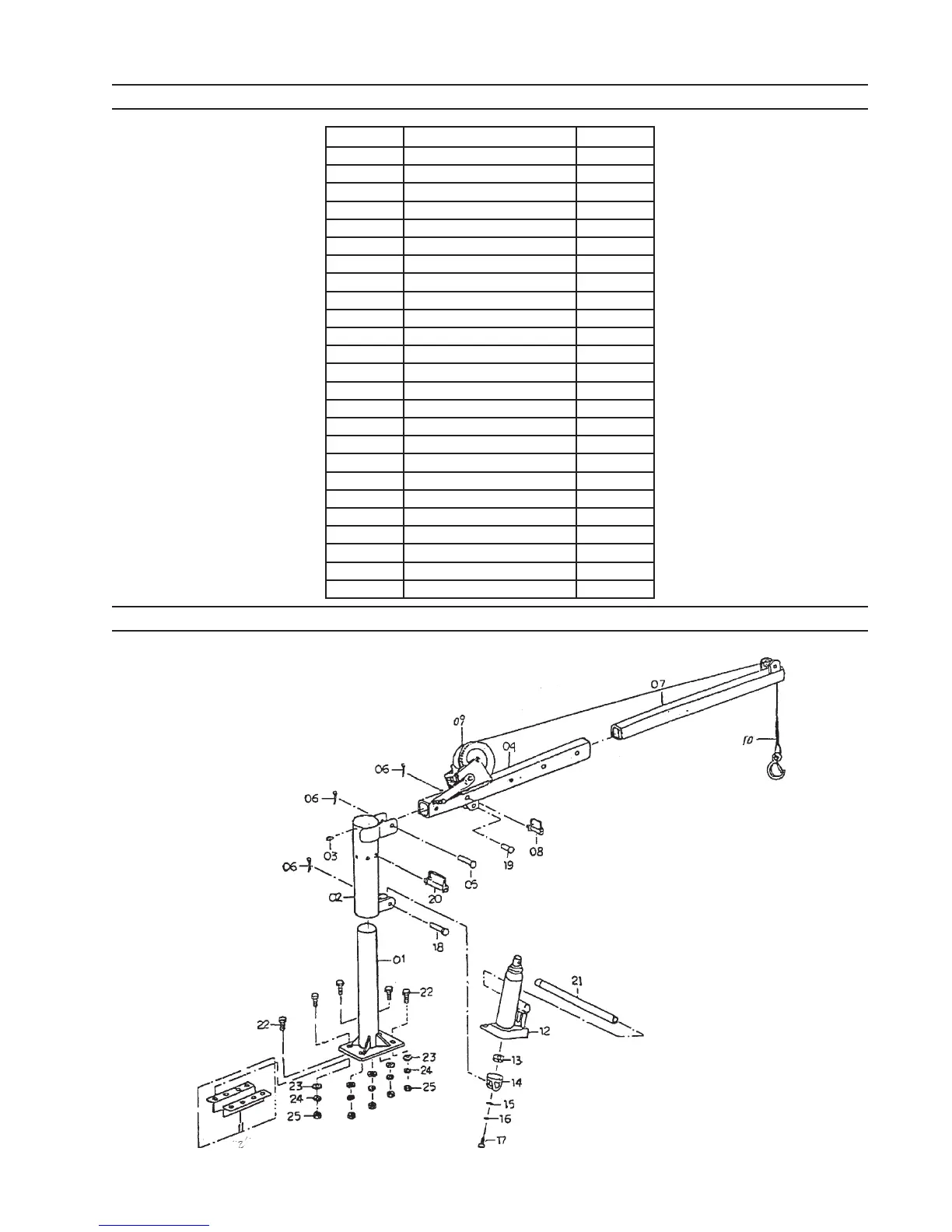

ASSEMBLY PARTS ILLUSTRATION
