Page 7For technical questions, please call 1-800-444-3353.SKU 46149

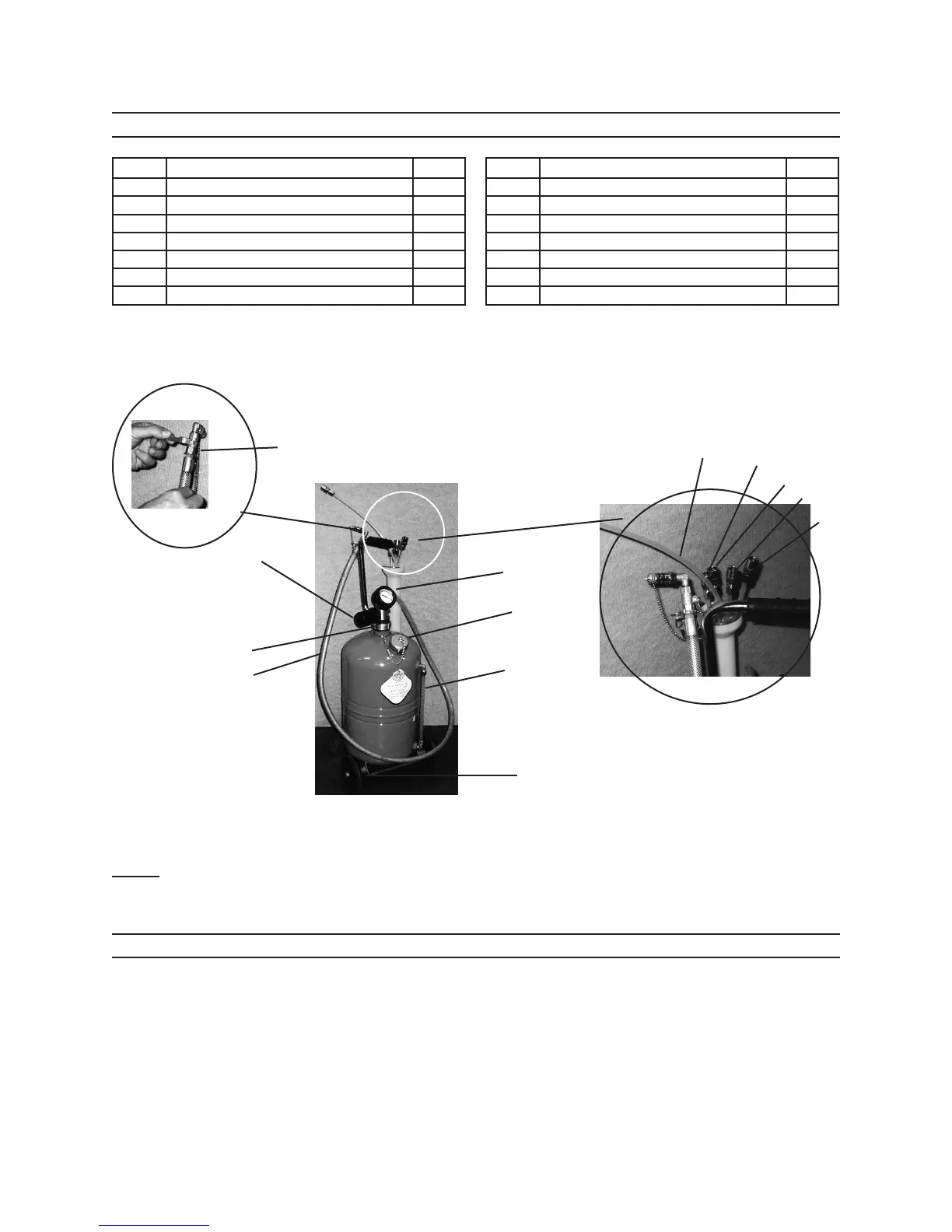

PARTS LIST AND ASSEMBLY DIAGRAM

(shown closed)

Probes

Note: Some parts are listed and shown for illustration purposes only and are not

available individually as replacement parts.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS MANUAL

AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY

REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE

ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE

PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS

AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS

AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER

REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR

HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Part Description Qty

1 Oil Extractor Tank Reservoir 1

2 Air Pressure Gauge 1

3 Air Inlet 1

4 Ball Valve with Lever 1

5 6 Ft. 2-1/2” Long Hose/Nozzle 1

6 Wheels 2

7 5/16” x 39-1/4” Long, Nylon Probe 1

Part Description Qty

8 Oil Level Tube 1

9 Emptying Cap 1

10 1/4” X 27-1/2” Copper Probe 1

11 1/4” x 27-1/2” Long, Nylon Probe 1

12 5/16” x 27-1/2” Long, Nylon Probe 1

13 9/32” x 27-1/2” Copper Probe 1

14 Mufer 1
