Specifications
Electrical Rating 120VAC / 60Hz / 12A
Air Outlet Size
1
/
4
″ -18 NPT
Air Pressure
Shut-off 125 PSI
Restart 95 PSI
Air Tank Capacity 4 Gallons
Air Flow Capacity
3.5 SCFM @ 90 PSI
4.4 SCFM @ 40 PSI
Sound Level 92.8 dB @ 3′
Oil Capacity 8.5 oz.
Oil Type SAE 30W, non-detergent, Air Compressor Oil
Instructions for putting into use
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and unplug the Air Compressor from its electrical
outlet before assembling or making any adjustments to the compressor.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Air Outlet
Power
Switch
Regulator
Knob
Air
Filter
Oil Sight
Glass
Reset
Button
Tank
Pressure
Output
Pressure
Handle
Safety
Valve
Tank Drain
Valve

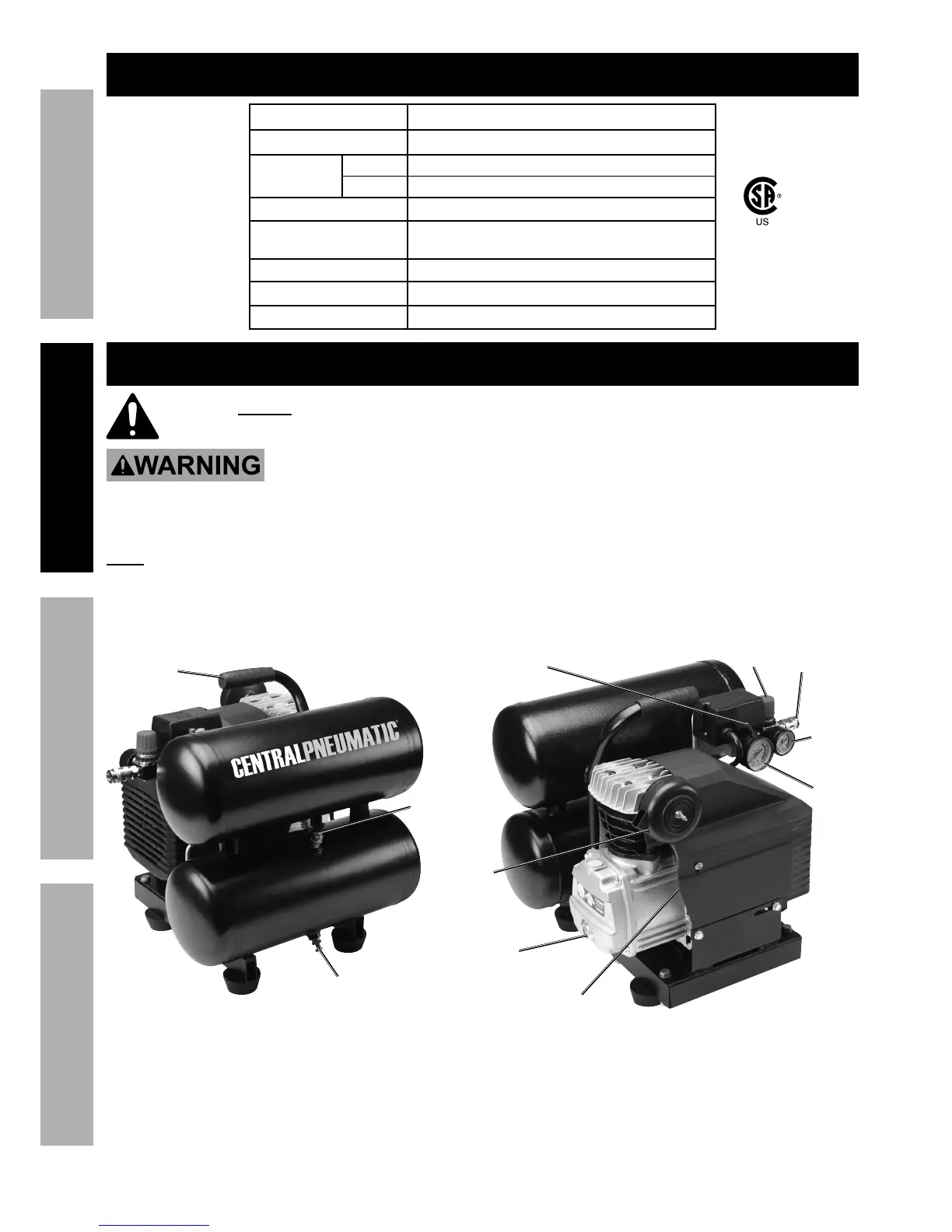

Figure A: Functions
226892
