Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V~
Volts Alternating Current
A
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute
(RPM)

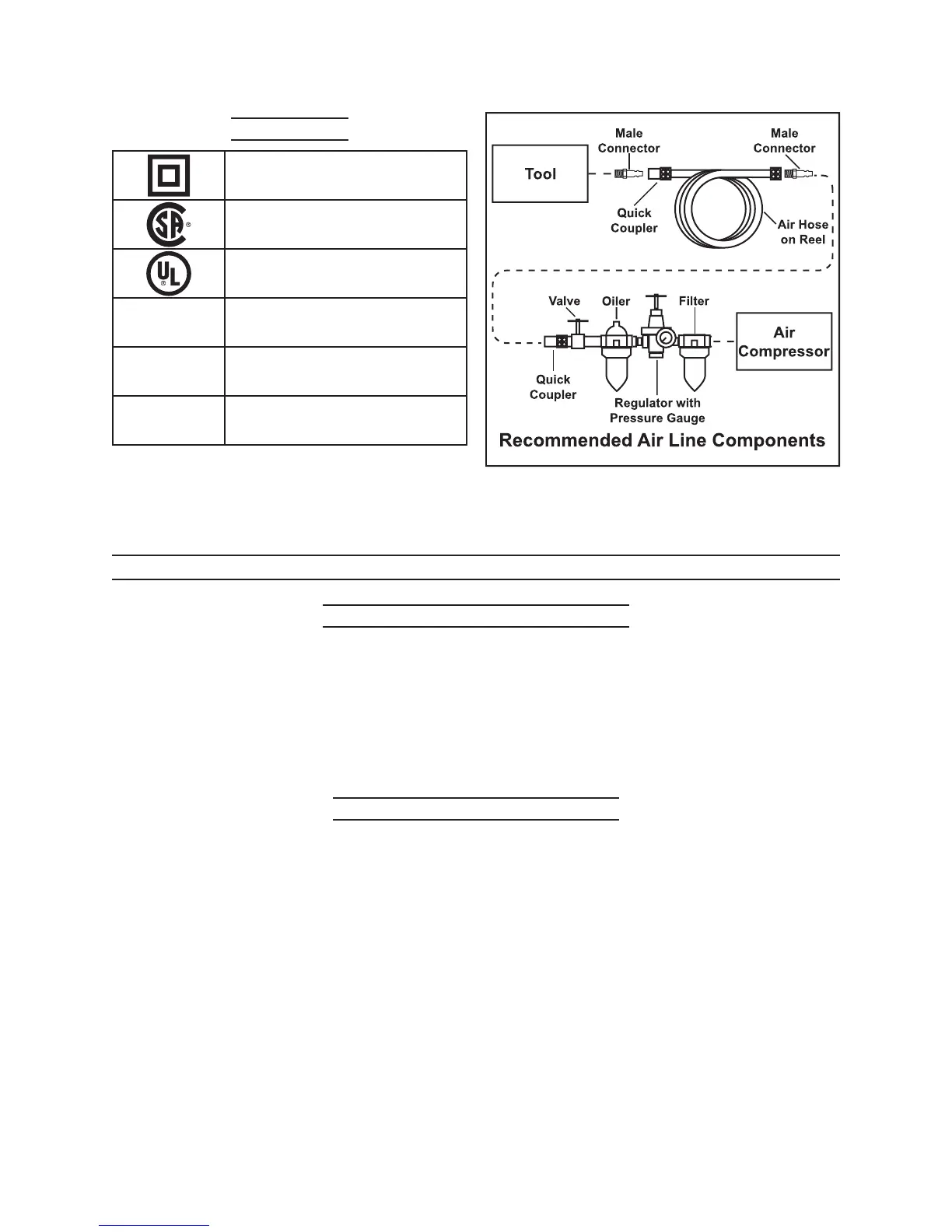

To extend the life of your air tools and equipment, install an oiler and water lter
in series with the Air Outlet Valve (4) of the Air Compressor.
ASSEMBLY INSTRUCTIONS
To Attach A Power Cord Plug:
The Power Cord (31) requires the attachment of a 240 volt, grounded,
3-Prong Plug (not included). For safety purposes, only a qualied, certied, electrician
should attach a Plug to the Power Cord. Never modify the Plug in any way. To com-
ply with the National Electric Code, and to provide additional protection from the risk of
electrical shock, this product should only be connected to a 240 volt electrical outlet that
is properly grounded.
To Attach Quick Connector:
Prior to use, the Air Compressor requires the attachment of a 1/4” NPT Quick
Connector (not included) to the Air Outlet Valve (4). To do so, wrap approximately 4” of
pipe thread sealant tape (not included) around the male threads of the Quick Connector.
Then, rmly screw the Quick Connector into the Air Outlet Valve. (See Figure D.)
