To Adjust The Depth To Which A Nail Is Driven
1. The depth to which a nail is driven is controlled by the Safety (38).
(See Figures B and C).
2. To adjust the depth of drive, loosen the Screw (37). Slide Safety (38) up or down
to the desired position. Then, re-tighten the Screw. Note: Sliding Safety (38)
upward increases the depth of drive. Sliding Safety downward decreases the
depth of drive. (See Figure C).
3. Test re a nail, and check its depth of drive. Repeat Step #2 as necessary to
achieve the desired depth of drive. (See Figure C).

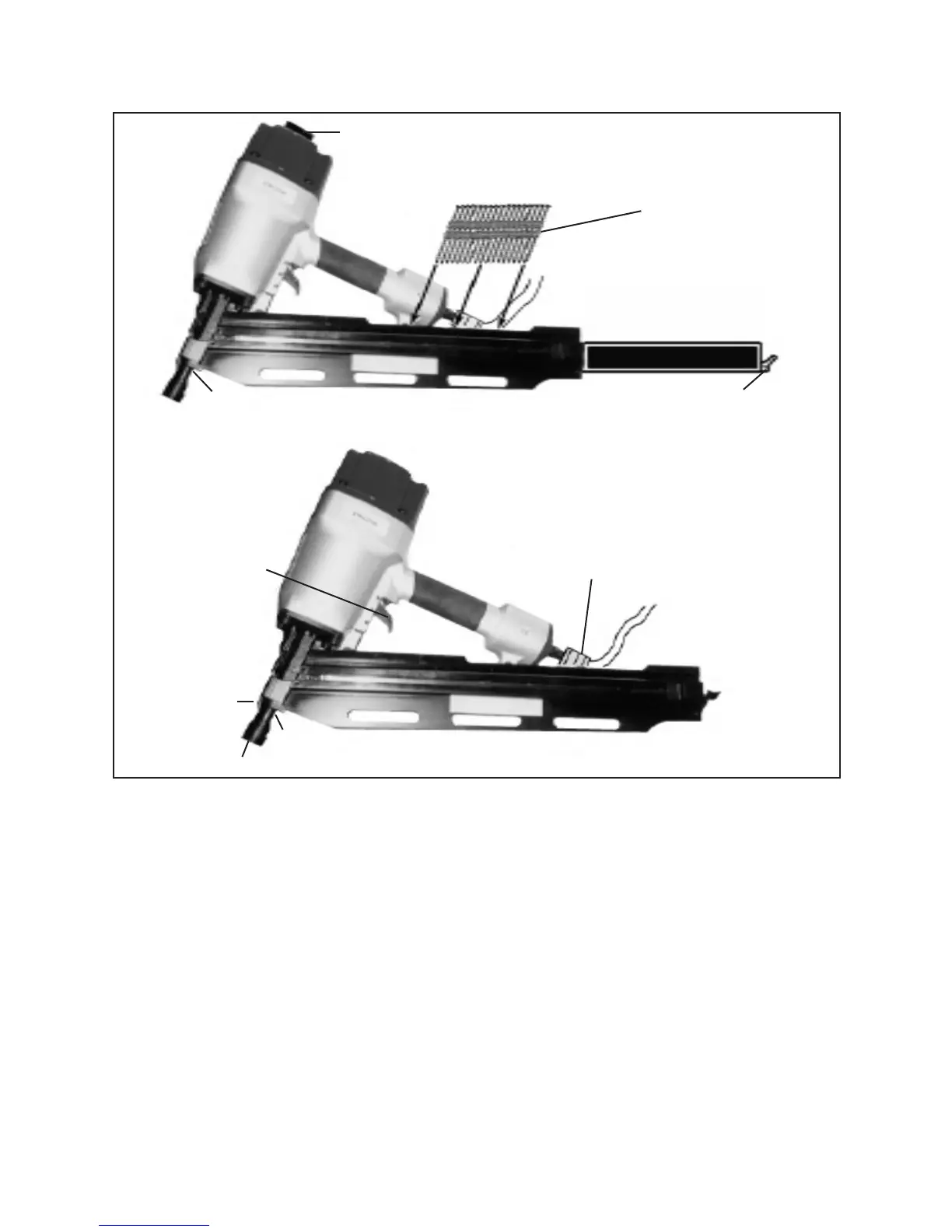

EXHAUST COVER (4)
NAILS
(10 GAUGE)
(2-3/16” TO 3-1/2” LONG)
FEEDER SHOE
(52)
NOSE (29)
BRACKET A
(35)
SAFETY (38)
TRIGGER
(44)
NOSE (29)
QUICK COUPLER &
AIR SUPPLY HOSE
(NOT INCLUDED)
