NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.
D=H6BCQR6S=B?Q>@=?>B6>=>;6 D6BTR
S*4&(9%R(&9'4$]#%D*(",7%>'5+*(%X*(*-%
>&$*- If product has no serial number, record month and year of purchase instead.
>&$*- Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175046031 when ordering parts.

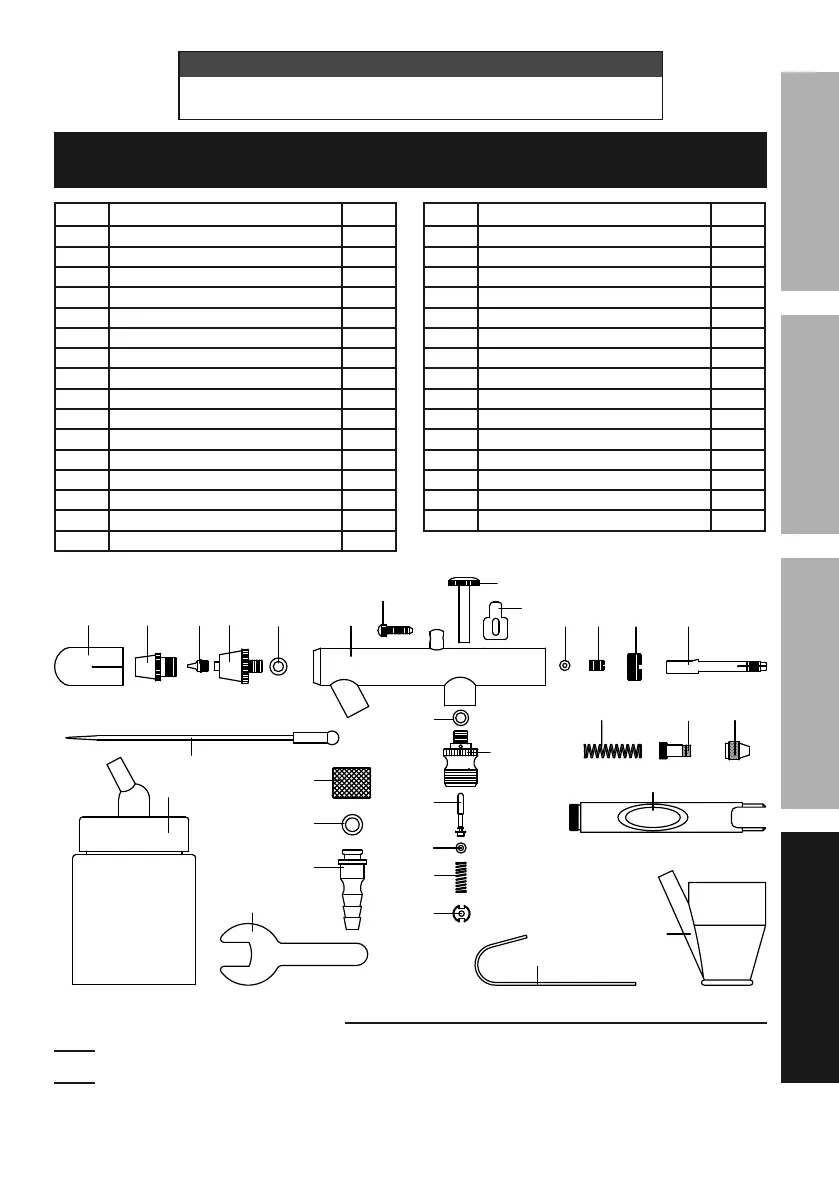

PARTS LIST AND DIAGRAM
R,($ A*#4("/$"&8 h$E
1 Cap 1
2 Air Cap 1
3 Nozzle 1
4 Air Cap Body 1
5 O-Ring 1
6 Packing 1
7 Packing Nut 1
8 Housing 1
9 Needle Adjustment Screw 1
10 Finger Lever 1
11 Rocker 1
12 Needle Adjusting Sleeve 1
13 Needle Chucking Guide 1
14 Spring 1
15 Needle Chucking Nut 1
16 Needle Cover (Handle) 1
R,($ A*#4("/$"&8 h$E
17 Rear Cover 1
18 Needle 1
19 O-Ring 1
20 Valve Rod 1
21 O-Ring 1
22 Spring 1
23 Valve Screw 1
24 Valve Body 1
25 Hose Connector Nut 1
26 Hose Connector O-Ring 1
27 Hose Connector 1
28 Metal Cup 1
29 7mm Wrench 1
30 Metal Hanger 1
31 0.74 fl. oz. Jar 1
17
18
43
621
19
9
8
11
21
20
22
23
31
28
29
30
5
24
25
26
27
16
7
14
12 13
15
To Next Page
