SKU 94481 For technical questions, please call 1-800-444-3353 PAGE 6

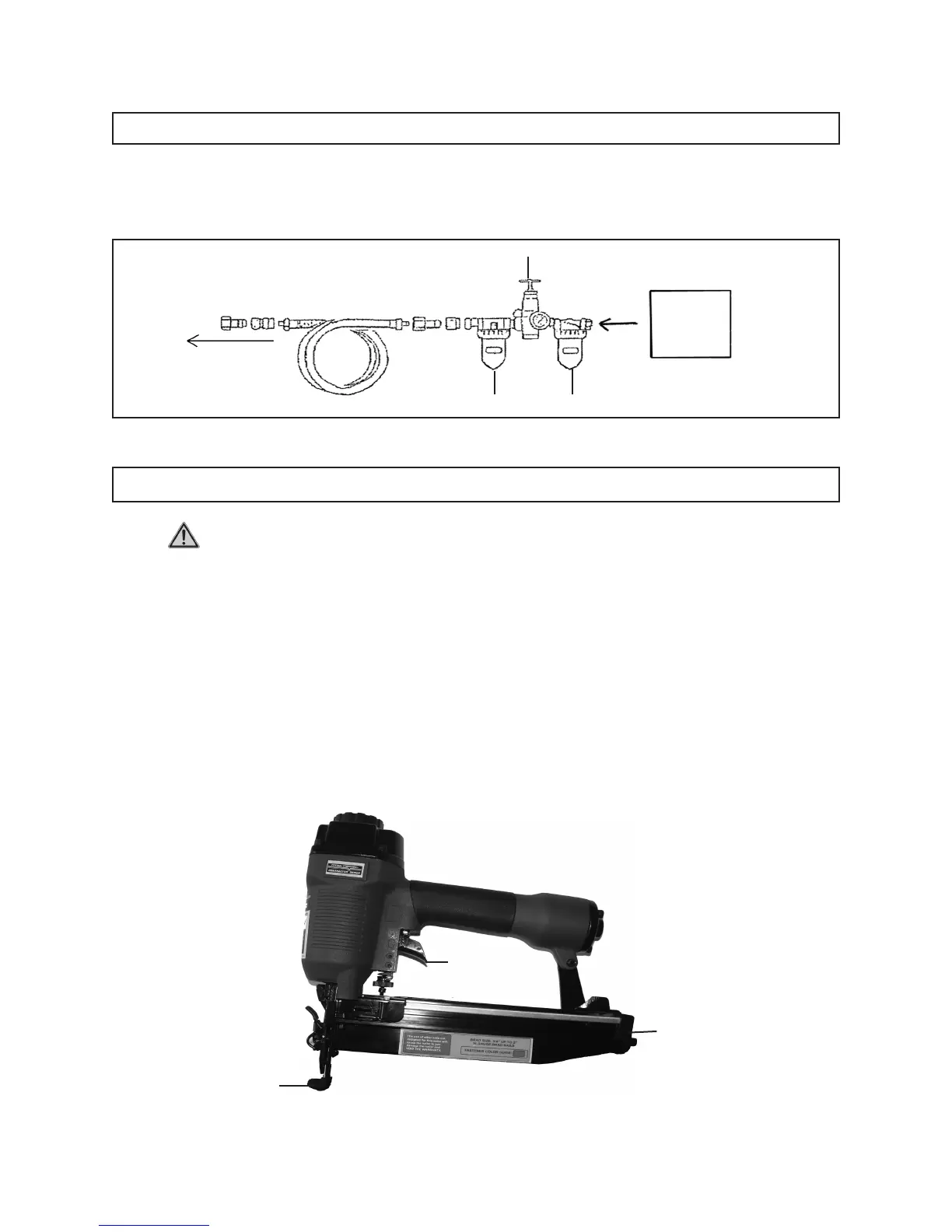

TESTING THE FULL SEQUENTIAL SAFETY TRIP MECHANISM
WARNING: Even though the Nailer should be empty during this procedure,
ALWAYS point the Nailer at a piece of scrap wood when testing.
1. Make sure the tool is disconnected from its air supply.
2. Completely empty the Magazine Assembly (70) of Brads.
3. The Nailer should not re if the Safety (50A) is not depressed against the
workpiece.
4. Make sure the Trigger (36) and Safety (50A) move freely, without sticking.
OPERATION
For best service, you should incorporate a regulator and an in-line lter and oiler
as shown in the diagram below. Hoses, couplers, regulators, lters, and oilers
are all available from Harbor Freight Tools.
AIR
COMPRESSOR
OILERFILTER
REGULATOR
TO
AIR BRAD
FINISH
NAILER
Trigger (36)
Magazine Assembly
(70)
Safety (50A)
REV 08g
