HOMEOWNER - WHF OPERATION
For single speed WHFs, the fan speed will be displayed as Hi and cannot be adjusted. For 2 speed WHFs, the speed
can be adjusted by pressing the Fan Speed and using the UP and DOWN Keys.
Changing 2-Speed WHFs

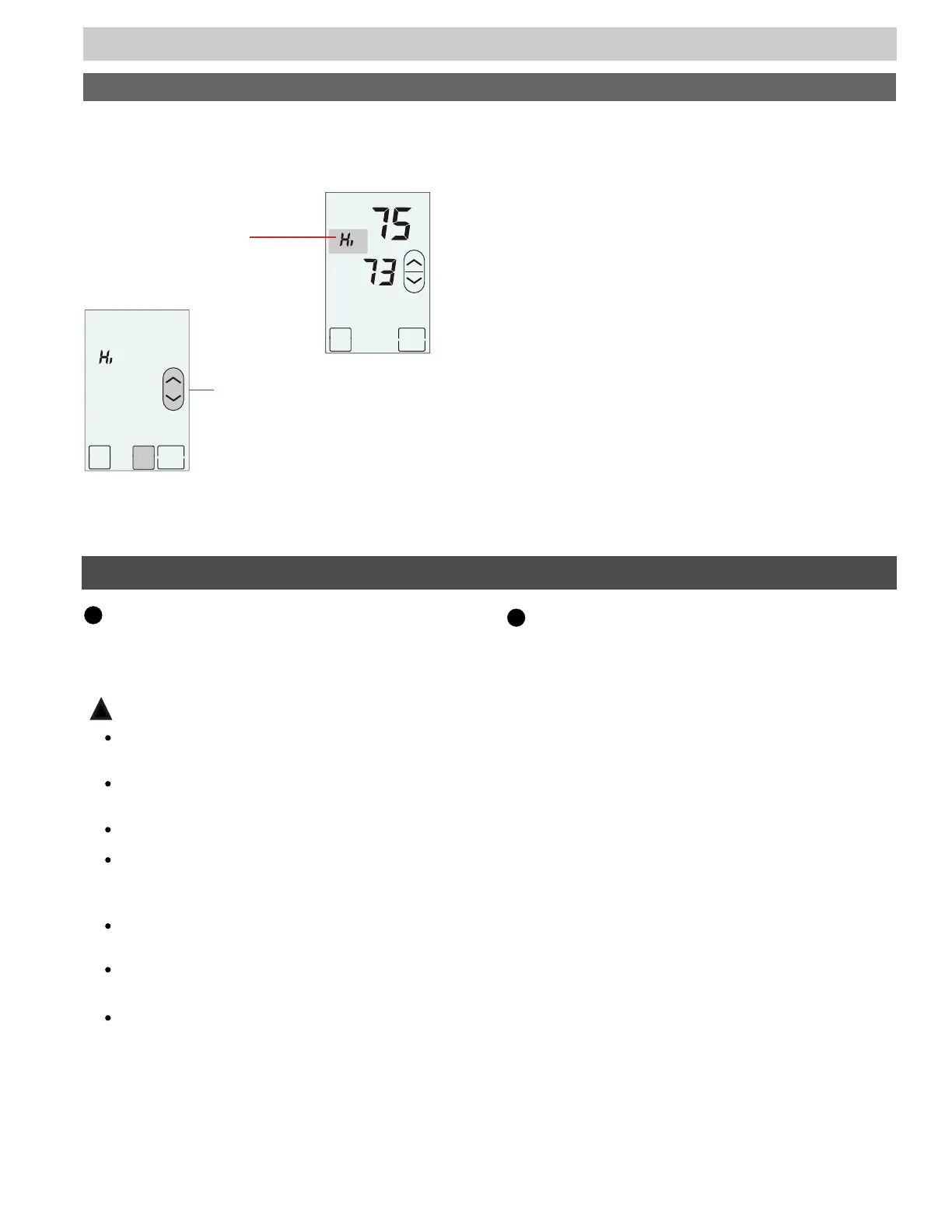

Press here to change
the WHF speed.
Use the UP and DOWN keys to
select the fan speed then press
ENTER.
High speed (Hi)
Low speed (Lo)
Outdoors
Link
Menu
ed
Set To
Cool
Indoors
Econo
Cooling
ON
o
F
Link
Menu
ed
Econo
Cooling
ON
Change the Fan Speed
Enter
INSTALLATION
CAUTIONS
Use cautions when mounting components to surfaces
that may have concealed wiring beneath the surface.
!
Turn off power before installing whole house fan or
WHF controls.
Read and follow all instructions carefully, including
those included with the whole house fan.
Follow all local electrical codes during installation. All
wiring must conform to local and national electrical
codes.
i
ATTENTION INSTALLER
Read entire manual before installing products.
When servicing WHF Controls or accessing products,
turn off all power to these items.
If not already done, connect the WHF to the RM2
radio module using the plug&play cable provided.
1)
i
Homes with plaster walls with steel lathe may
experience wireless communication interference
when using wireless controls.
Install optional Outdoor Temperature Sensor and
wire to the RM2.
2)
Set Installer Options
Select Fan Speed
3)
Installation should be performed by a qualified
individual with sufficient experience and skill.
An optional Damper Control can be installed. See
the Damper Control Manual for wiring information.
To Next Page
