INSTALLATION
6
The RT2 wireless control and the RM2 radio module
included in this kit have been programmed with a unique
ID number and ONLY communicate with each other.
This enables multiple WHF installations in the same home
or in neighboring homes without interference.
The ID Number on the RT2 should always match the ID
Number on the RM2 - see below.
i
WIRELESS COMMUNICATION
Same
ID Number
ID #
01-02
1467 / 19-01
RM2
V. X.XX
ID #
01-02
1234 / 19-01
RT2
Ver X.XX

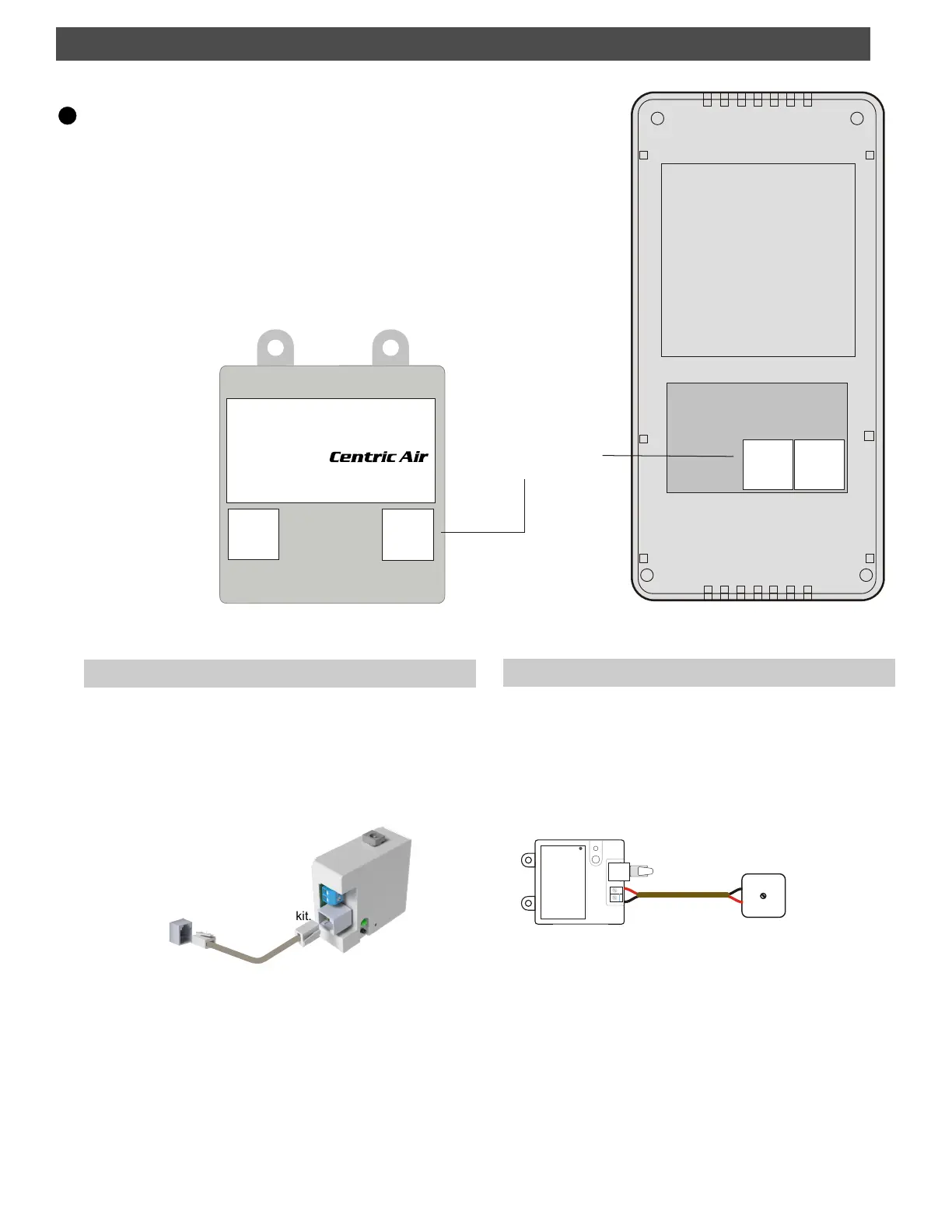

Bring the wireless remote into the attic but do not power
yet. Plug one end of the plug&play cable into the fan
control, if not already done. Make sure the connection is
secure. Plug the other end of the cable into the RM2
radio module, making sure the connection is secure.
Jack on WHF
Control Board
RM2 Radio Module
7-foot cable
supplied in kit.
Connect the RM2 Radio Module1)
Contains Transmitter Module FCC ID:
OA3MRF89XAM9A
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Model RT2
Pat. Pend.
Made in USA
RSM, CA / CentricAir.com
Centric Air
Wireless WHF Control
Model RM2
WHF Radio Module
ODT
ODT
RSM, CA
The radio module should be place in a location away
from metal objects that may hinder wireless
communication. The module can be placed on the attic
floor below the WHF.
Avoid placing the radio module above the WHF or metal
flex duct. Find a location that has a more direct wireless
communication path. If needed, a 25 foot cable is
available. Contact the manufacturer, eControls at 949-
916-6701.
The optional TS3 Outdoor Temperature Sensor should
be installed under the eaves of the home and out of
direct sun light. The outdoor temperature sensor is used
to delay WHF operation when the outdoor temperature is
too warm to provide cooling.
Use 2-conductor AWG 20 to 24 wire to connect the
temperature sensor to the ODT terminals on the RM2
Radio Module. The sensor is not polarized.
Optional Outdoor Temperature Sensor2)
RM2 Radio Module
ODT
ODT
To Next Page
