Z059 User and Installation Guide January 2010
Page 5

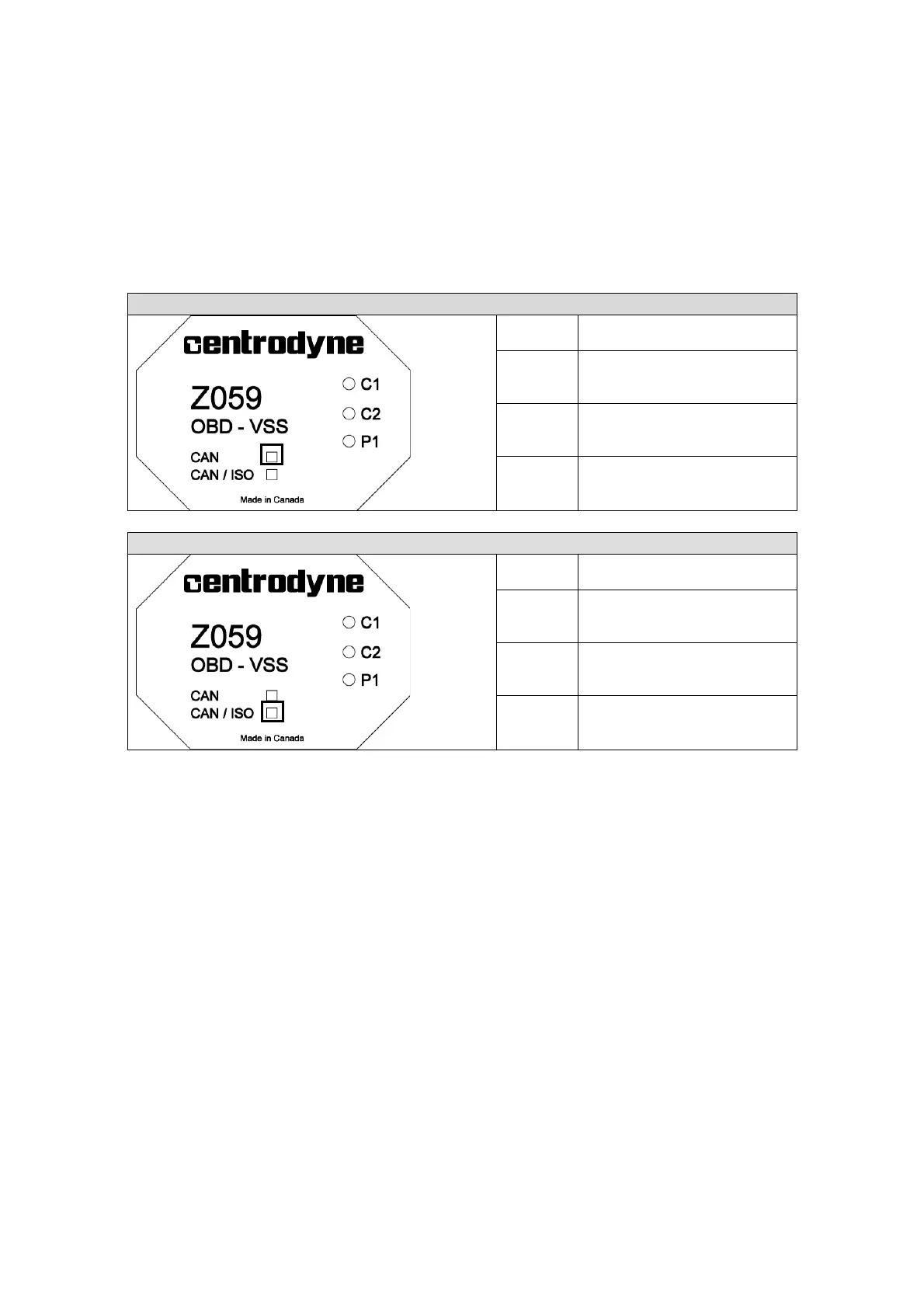

Status LED Indicators
CAN Only Model
Status
LED
Description
C1
CAN protocol – 29 bit
Solid - protocol found
Flashing - searching
C2
CAN protocol – 11 bit
Solid - protocol found
Flashing - searching
P
Speed pulse
Flashes with pulses
Off – No speed
CAN / ISO Model
Status
LED
Description
C1
ISO protocol
Solid - protocol found
Flashing - searching
C2
CAN protocol
Solid - protocol found
Flashing - searching
P
Speed pulse
Flashes with pulses
Off – No speed
Calibration
The Z059 Converter outputs a fixed value of 14400 pulses per Km or 23175 pulses per
mile. The taximeter must still be calibrated owing to differences in vehicle
characteristics. Refer to the calibration procedure in the relevent taximeter docoument.
Operation Notes
The ISO protocol connection may take 5 to 10 seconds to activate after the engine is
turned on.. The taximeter may not see VSS pulses during this start-up time.
The Status LEDs will extiquish about 2 minutes after the engine is turned off.
