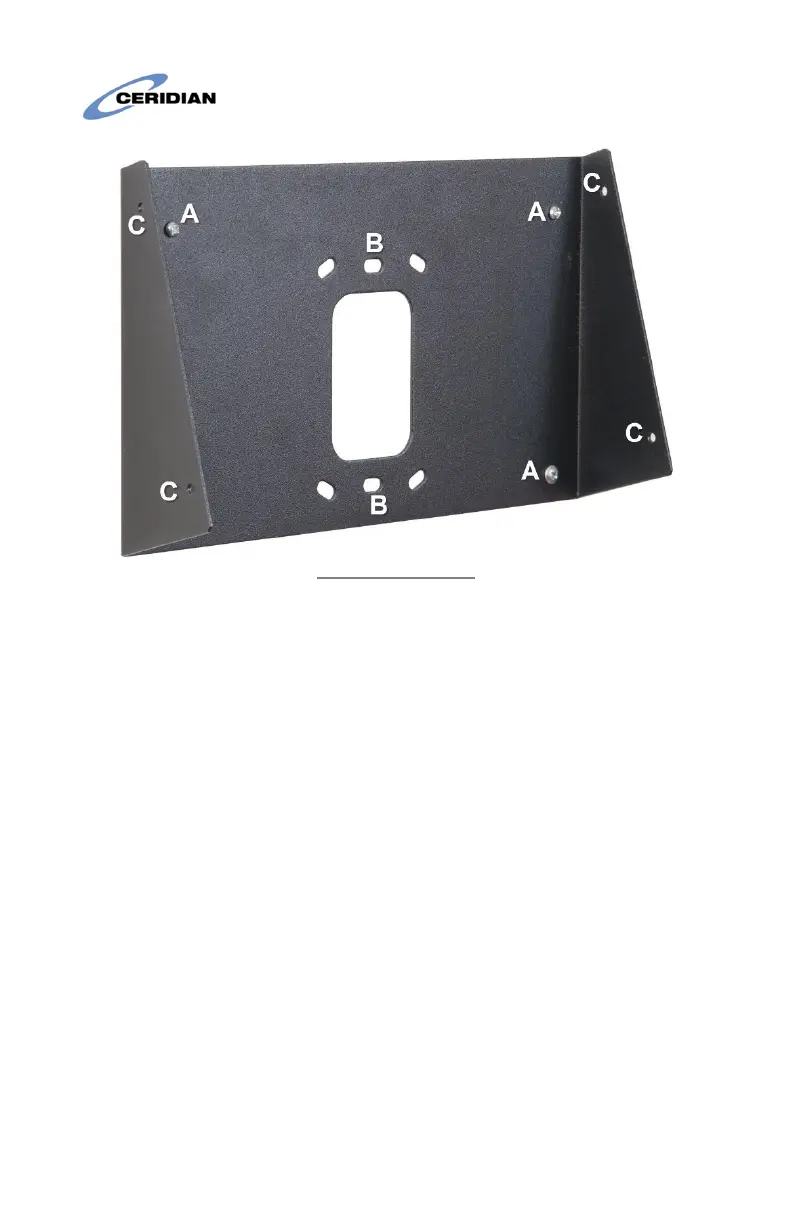

Figure 2: Wall-mount
Use the holes marked B in Figure 2 to attach the wall-mount to a
standard NEMA electrical box, or the holes marked A to mount the clock
to a wall.
The recommended height for mounting the clock differs depending on
your organization’s needs:
• To accommodate users in wheelchairs, install the wall-mount
with its top edge 48 inches from the ground.
• If the camera feature will be used, or if wheelchair access is not
required, install the wall mount with its top edge 56 inches from
the ground.
If the wall-mount is attached to an electrical box, feed the low-voltage
power cable and network cable through the wall, into the box, and
through the cut-out opening of the wall-mount.
