Hydraulic System
1 Sample water Inlet
Outlet water pipe ring fitting

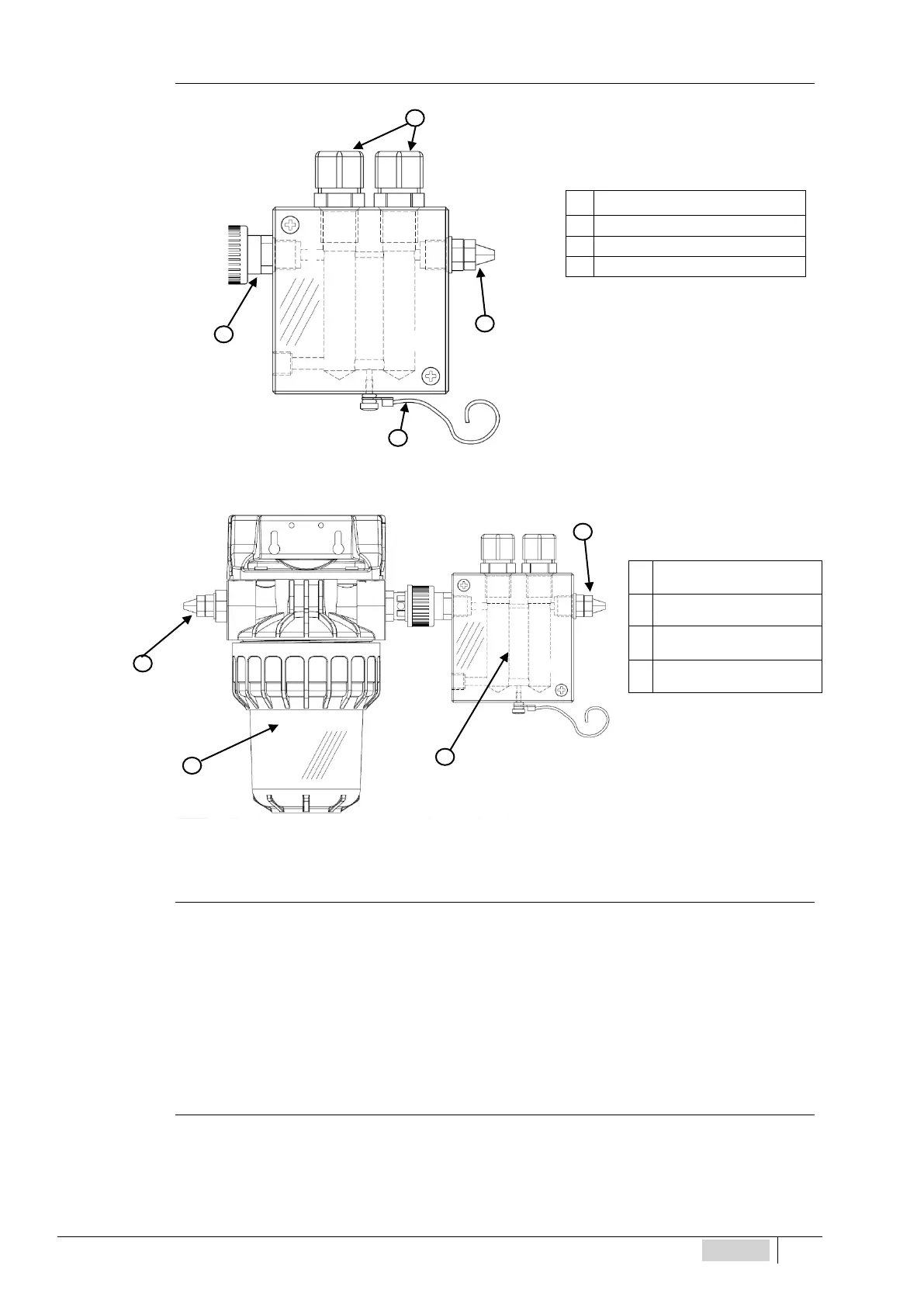

Figure 2 - Probe holder
1 Water flow inlet
2 In-line filter
3 Electrode holder
4 Water flow outlet
Figure3 – Hydraulic part
Technical specifications
• Device manufactured in compliance with European CE directives.
• Control panel assembled on a rigid PVC sheet
• Power supply 230 V 50-60 Hz
• Protection grade: IP65 (instrument metering pumps), IP55 (junction box), IP2X (outer container)
• Environmental conditions: closed environment, maximum altitude 2000 m, ambient temperature
from 5°C to 40°C, maximum relative humidity 80% up to maximum 31° C (decreases linearly
until reaching 50% at 40°C)
• Classification with regard to protection against direct contacts: CLASS I, the device is provided
with a protective conductor
Compliance
The device complies with the following directives:
• 2006/95/EC: "Low voltage"
• 2004/108/EC: "Electromagnetic compatibility"
