Front brake hose runs in the lower
fork, and exits out the upper fork,
below the crown.
6
It is recommended that the hydraulic brake hoses or brake cable housing is installed
prior to BB install. These routing illustrations are intended as a supplement to the
manufacturer’s installation instructions only. For both hydraulic and mechanical disc
brakes, please refer to the component manufacturer’s service center or website for
further information.

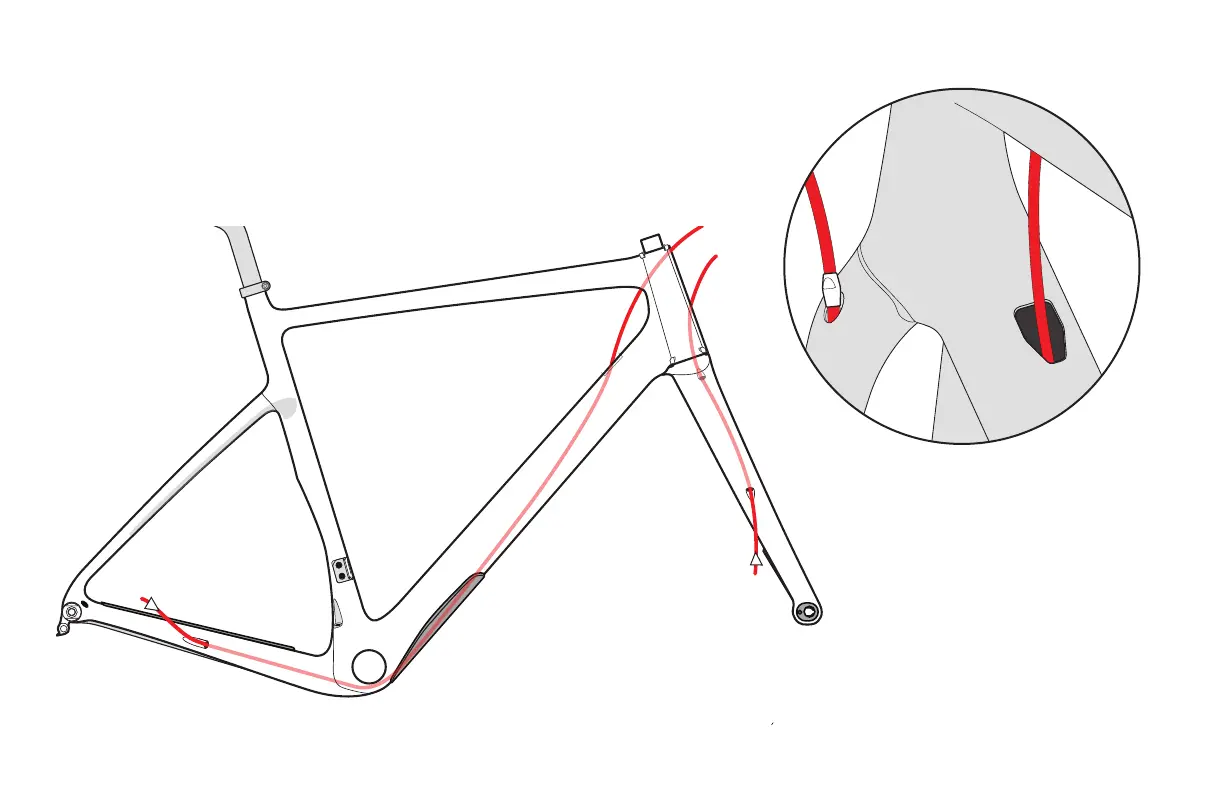

BRAKE HOUSING ROUTING
Route rear brake hose in
through the chainstay and out
the down tube internal cable
port (behind the Head tube)
To Next Page
