4.2.- RECEIVER
Make sure the machine is stopped for the entire duration of the
installation process. Keep the work area free from unnecessary clutter
and wear protective clothing.
Park the crane and position the end-stops (if these are not available
use appropriate signs) at a suitable distance so that other cranes on
the same runway do not hit it.
Check the power-supply voltage and turn off the main line disconnect
switch. ENSURE THE POWER SUPPLY IS OFF.

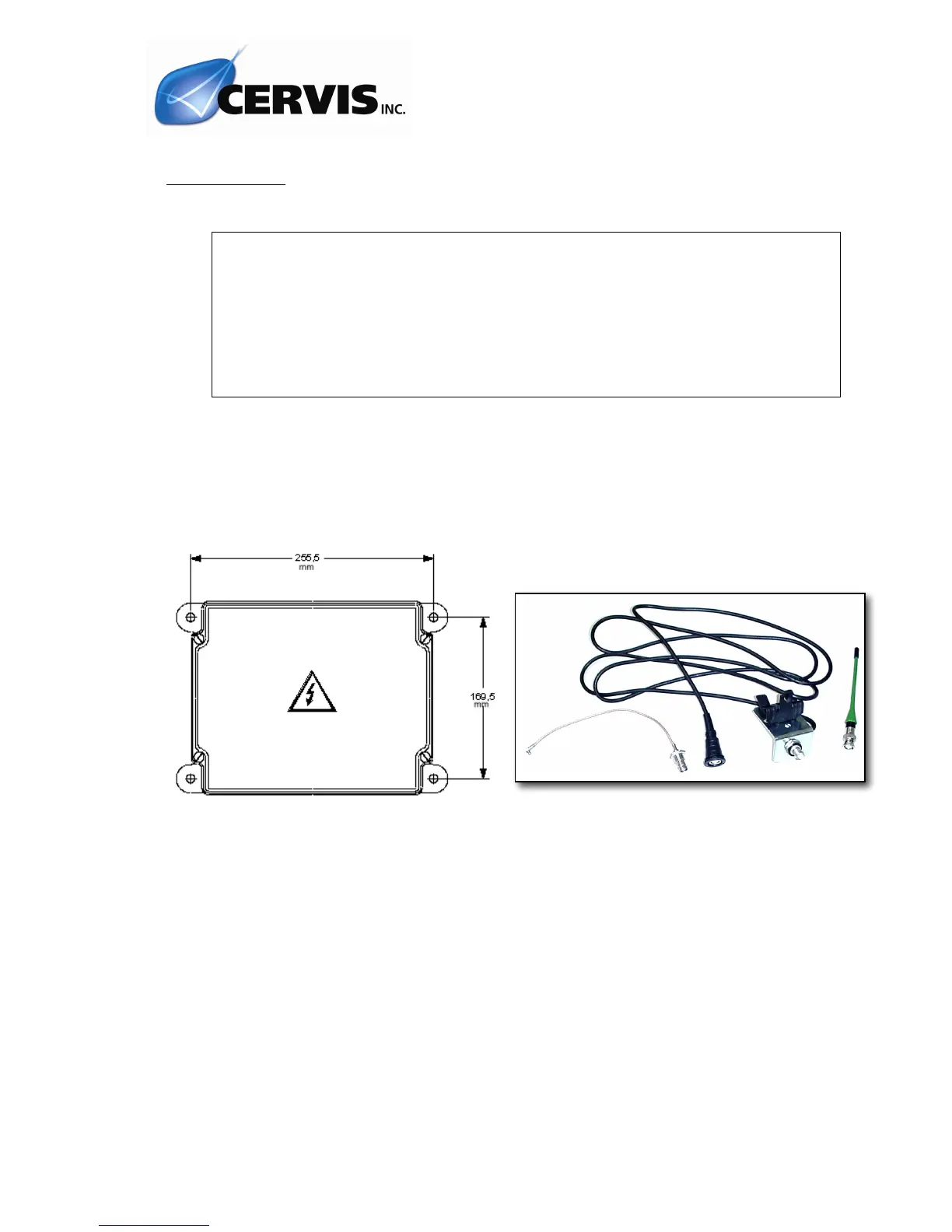

Find a suitable location for the receiver with clear access to the transmitter’s radio
signal. Always mount the receiver and antenna away from any intense radio or electric
disturbance sources.
On machines with high vibration it is recommended that the receiver is installed using 4
elastic absorbers.
If necessary, it is possible to improve signal reception, by using the extension cables
and external antenna kit.
Connect the power supply and the receiver outputs on the relay board plug-in
terminals. Do this following the outputs diagram, which is supplied with the system.
This diagram indicates the relationship between the transmitter commands and the
receiver outputs.
