Installation
5

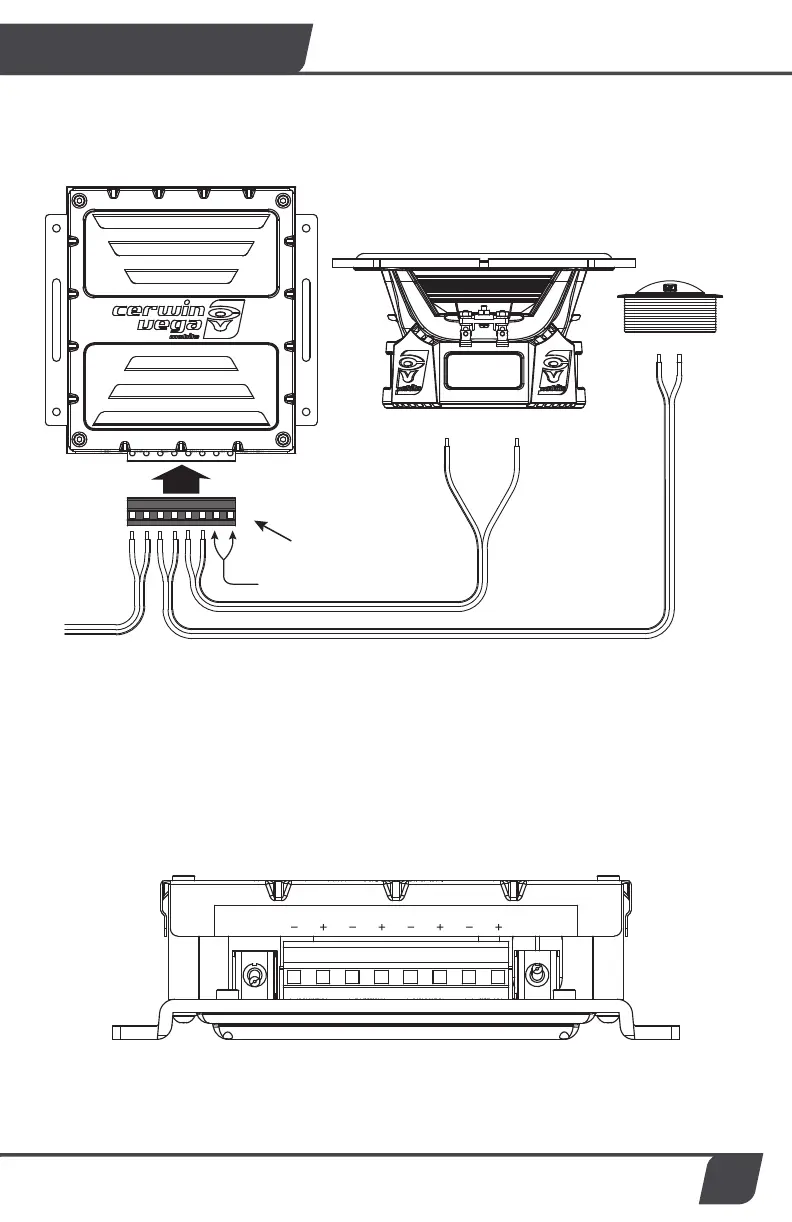

The illustration below shows how to connect one channel of the ST65C component system
(SPRO65C is same in connection)
Crossover Programing
Each ST65C / SPRO65C component system comes with a pair of model specific adjustable crossovers
giving you attentuation and phase adjustments. The tweeter adjustment has settings for -2dB of
attenuation, OdB or +2dB of gain. There is also a “Phase switch” that you may use in different
application/locations to correct for acoustical phase issues casued by placement of the drivers in the
vehicles particular enviroment.
To Amplifier
Midbass Driver
Tweeter
INPUT WOOFER TWEETER RAF
0
- 2
+2
180
0
TW
PHASE
TW
LEVEL
Optional RAF
Removable
Plug
To Next Page
