CESSNA 400 MARKER BEACON
(TYPE R-402A)
PILOT'S OPERATING HANDBOOK
SUPPLEMENT
TYPICAL INSTALLATION
ON ALL 150 MODEL SERIES
PKQNÏ
TYPICAL INSTALLATION
ON ALL 172, 177, 177RG,
180 & 185 MODEL SERIES
TYPICAL INSTALLATION
ON ALL 337 MODEL SERIES
TYPICAL INSTALLATION
ON ALL 182, 206, 207
& 210 MODEL SERIES

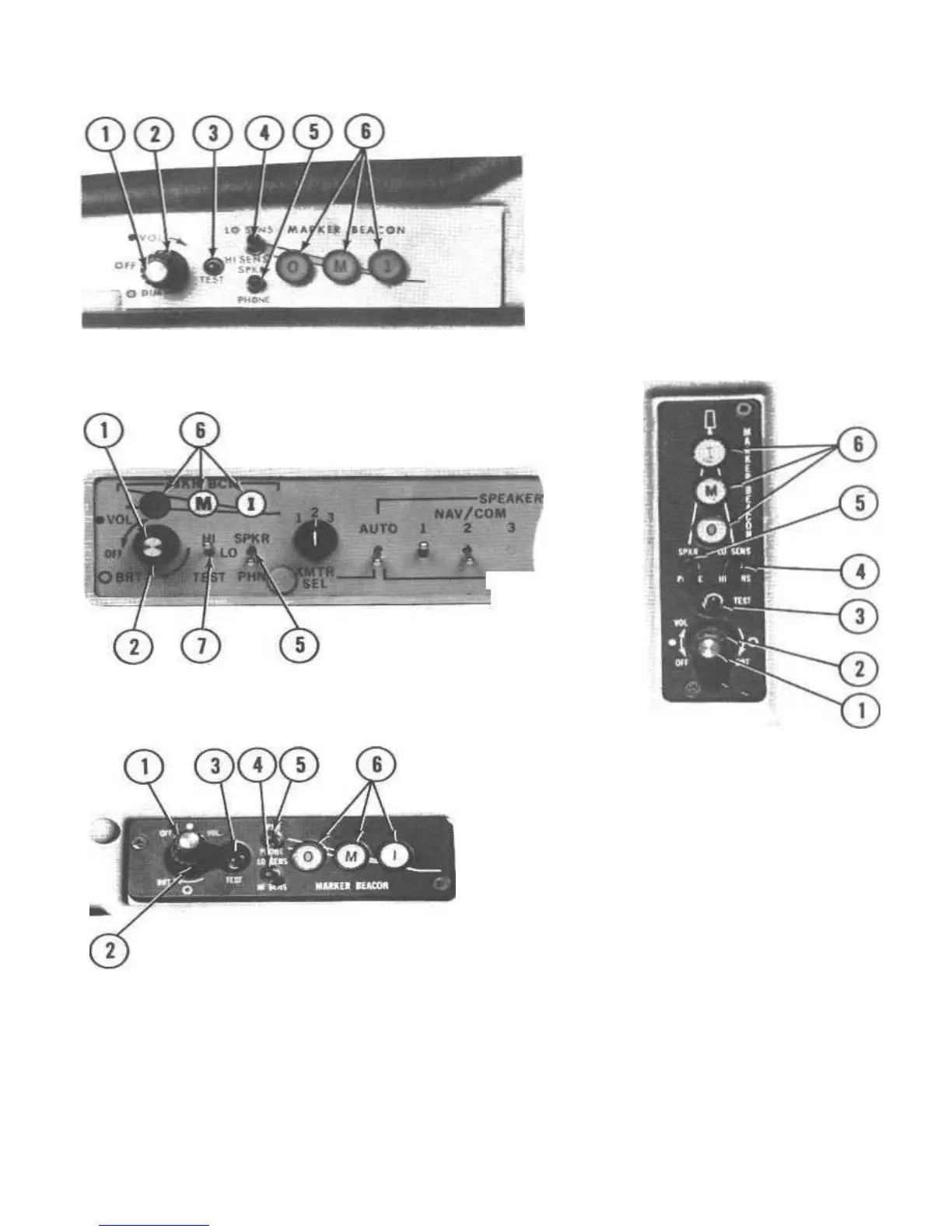

Figure 1. Cessna 400 Marker Beacon Operating Controls
and Indicator Lights (Sheet 1 of 2)
2
