Cessna 172S Nav III Information Manual

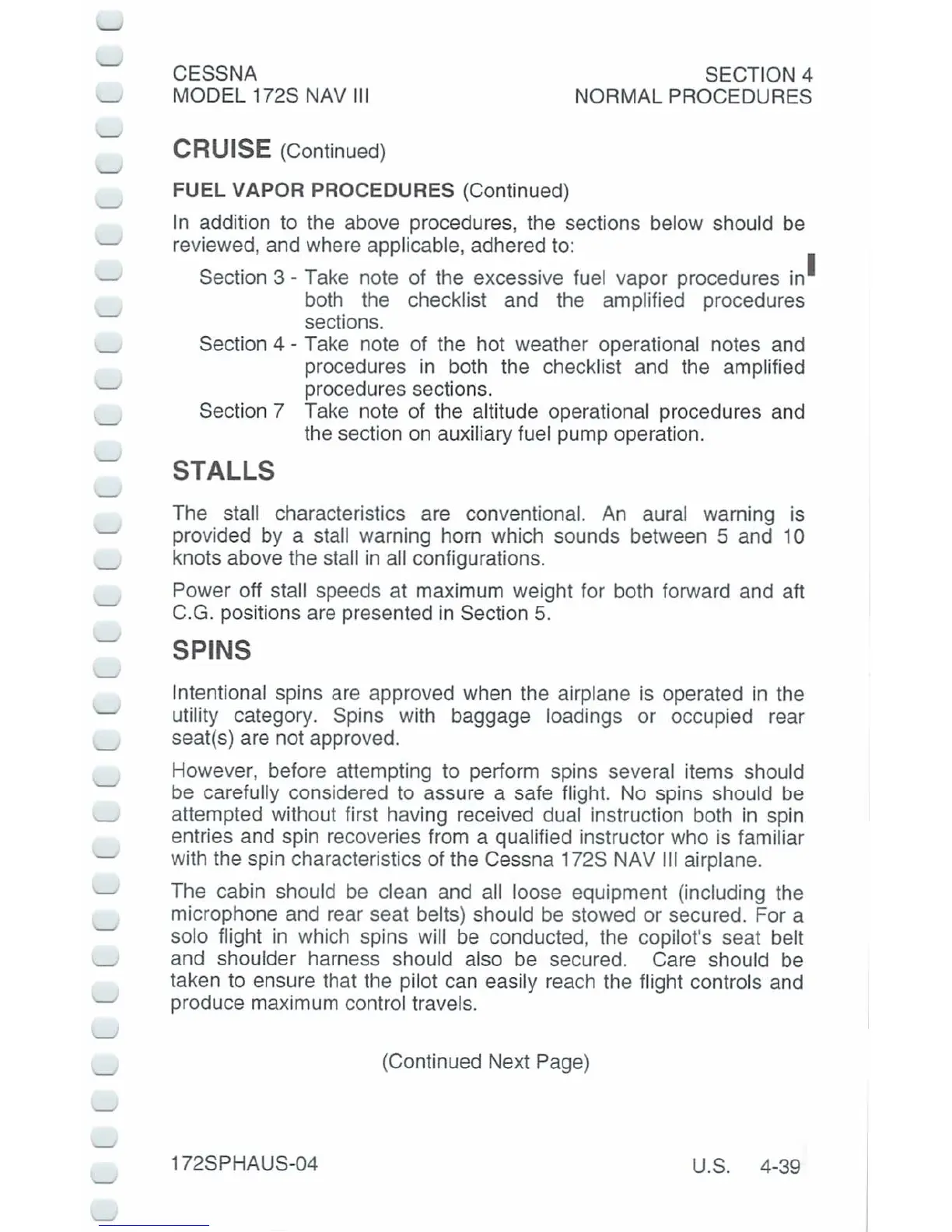

CESSNA SECTION 4
MODEL 172S NAV III NORMAL PROCEDURES
CRUISE (Continued)
FUEL VAPOR PROCEDURES (Continued)
In addition to the above procedures, the sections below should be
reviewed, and where applicable, adhered to:
Section 3 - Take note of the excessive fuel vapor procedures in
both the checklist and the amplified procedures
sections.
Section 4 - Take note of the hot weather operational notes and
procedures in both the checklist and the amplified
procedures sections.
Section 7 Take note of the altitude operational procedures and
the section on auxiliary fuel pump operation.
STALLS
The stall characteristics are conventional. An aural warning is
provided by a stall warning horn which sounds between 5 and 10
knots above the stall in all configurations.
Power off stall speeds at maximum weight for both forward and aft
C.G. positions are presented in Section 5.
SPINS
Intentional spins are approved when the airplane is operated in the
utility category. Spins with baggage loadings or occupied rear
seat(s) are not approved.
However, before attempting to perform spins several items should
be carefully considered to assure a safe flight. No spins should be
attempted without first having received dual instruction both in spin
entries and spin recoveries from a qualified instructor who is familiar
with the spin characteristics of the Cessna 172S NAV III airplane.
The cabin should be clean and all loose equipment (including the
microphone and rear seat belts) should be stowed or secured. For a
solo flight in which spins will be conducted, the copilot's seat belt
and shoulder harness should also be secured. Care should be
taken to ensure that the pilot can easily reach the flight controls and
produce maximum control travels.
(Continued Next Page)
172SPHAUS-04 U.S. 4-39

Cessna 172S Nav III Specifications

General

Manufacturer	Cessna
Model	172S Nav III
Engine	Lycoming IO-360-L2A
Horsepower	180 hp
Cruise Speed	124 knots (143 mph, 230 km/h)
Service Ceiling	13, 500 ft (4, 115 m)
Takeoff Distance (Ground Roll)	960 ft (293 m)
Landing Distance (Ground Roll)	575 ft (175 m)
Seating Capacity	4
Type	Single-engine, high-wing
Propeller	2-blade, constant-speed
Fuel Capacity	56 gallons
Wingspan	36 ft 1 in
Length	27 ft 2 in
Height	8 ft 11 in
Stall Speed	47 knots
Range	640 nautical miles
Rate of Climb	720 ft/min (3.7 m/s)
Avionics	Garmin G1000
Maximum Takeoff Weight	2, 550 lbs (1, 157 kg)
