Cessna 172S Nav III Information Manual

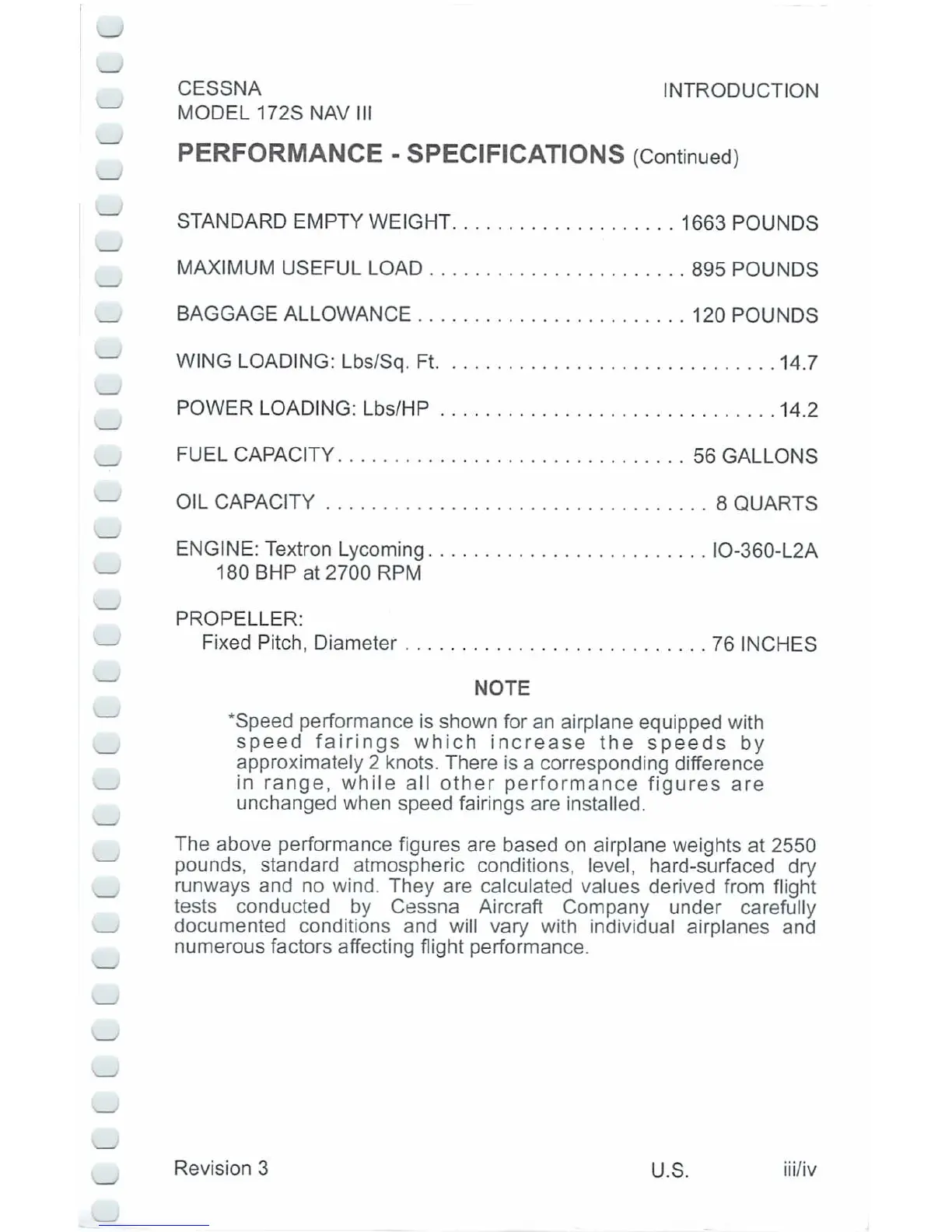

CESSNA INTRODUCTION
MODEL 172SNAV III
PERFORMANCE - SPECIFICATIONS (Continued)
STANDARD EMPTY WEIGHT 1663 POUNDS
MAXIMUM USEFUL LOAD 895 POUNDS
BAGGAGE ALLOWANCE 120 POUNDS
WING LOADING: Lbs/Sq. Ft 14.7
POWER LOADING: Lbs/HP 14.2
FUEL CAPACITY 56 GALLONS
OIL CAPACITY 8 QUARTS
ENGINE: Textron Lycoming IO-360-L2A
180BHPat2700RPM
PROPELLER:
Fixed Pitch, Diameter 76 INCHES
NOTE
*Speed performance is shown for an airplane equipped with
speed fairings which increase the speeds by
approximately 2 knots. There is a corresponding difference
in range, while all other performance figures are
unchanged when speed fairings are installed.
The above performance figures are based on airplane weights at 2550
pounds, standard atmospheric conditions, level, hard-surfaced dry
runways and no wind. They are calculated values derived from flight
tests conducted by Cessna Aircraft Company under carefully
documented conditions and will vary with individual airplanes and
numerous factors affecting flight performance.
Revision 3 U.S. iii/iv

Cessna 172S Nav III Specifications

General

Manufacturer	Cessna
Model	172S Nav III
Engine	Lycoming IO-360-L2A
Horsepower	180 hp
Cruise Speed	124 knots (143 mph, 230 km/h)
Service Ceiling	13, 500 ft (4, 115 m)
Takeoff Distance (Ground Roll)	960 ft (293 m)
Landing Distance (Ground Roll)	575 ft (175 m)
Seating Capacity	4
Type	Single-engine, high-wing
Propeller	2-blade, constant-speed
Fuel Capacity	56 gallons
Wingspan	36 ft 1 in
Length	27 ft 2 in
Height	8 ft 11 in
Stall Speed	47 knots
Range	640 nautical miles
Rate of Climb	720 ft/min (3.7 m/s)
Avionics	Garmin G1000
Maximum Takeoff Weight	2, 550 lbs (1, 157 kg)
