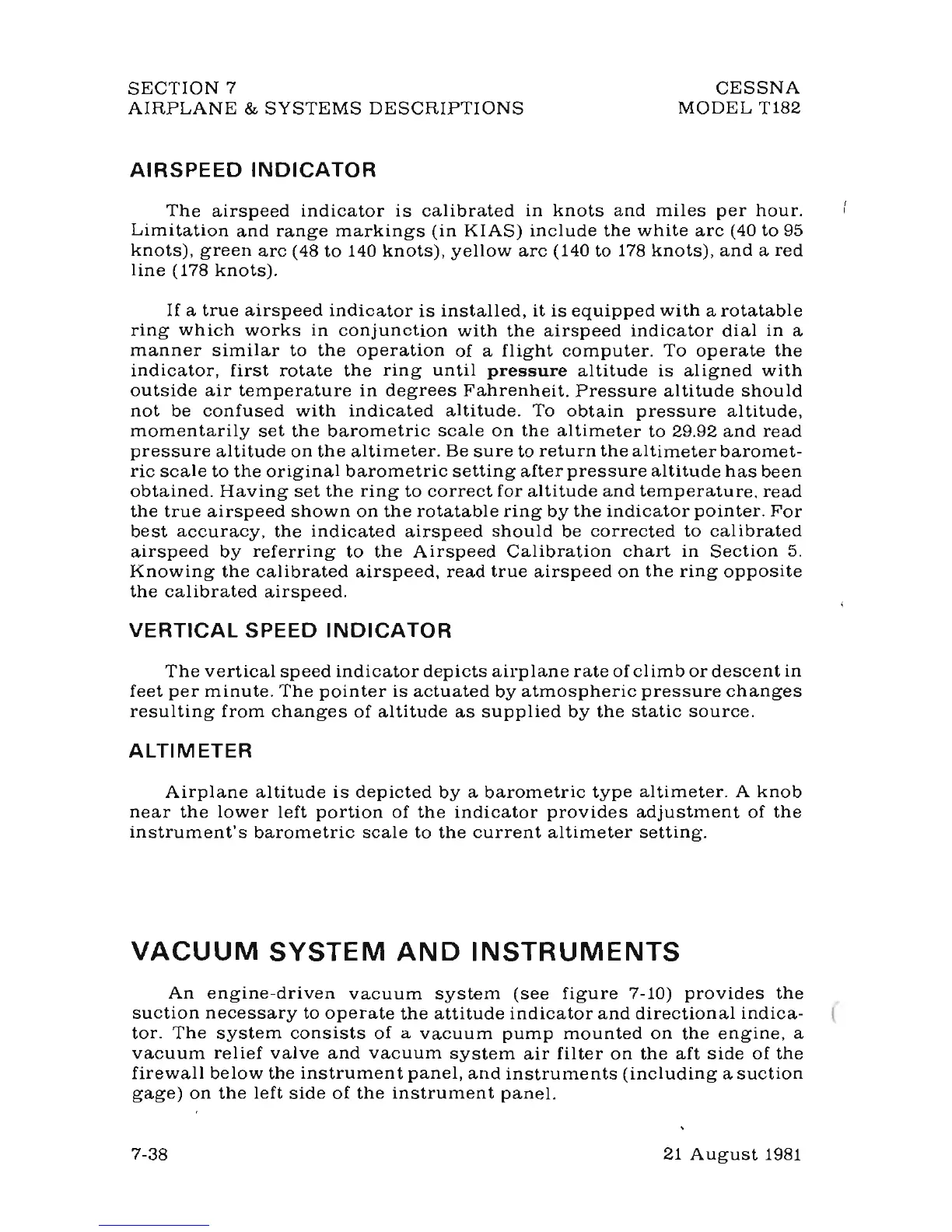

SECTION
7
CESSNA
AIRPLANE
&
SYSTEMS
DESCRIPTIONS
MODEL
T182
AIRSPEED
INDICATOR
The
airspeed
indicator
is
calibrated
in
knots
and
miles
per
hour.
Limitation
and
range
markings
(in
KIAS)
include
the
white
arc
(40
to
95
knots),
green
arc
(48
to
140
knots),
yellow
arc
(140
to
178
knots),
and
a
red
line
(178
knots).
If
a
true
airspeed
indicator
is
installed,
it
is
equipped
with
a
rotatable
ring
which
works
in
conjunction
with
the
airspeed
indicator
dial
in
a
manner
similar
to
the
operation
of
a
flight
computer.
To
operate
the
indicator,
first
rotate
the
ring
until
pressure
altitude
is
aligned
with
outside
air
temperature
in
degrees
Fahrenheit.
Pressure
altitude
should
not
be
confused
with
indicated
altitude.
To
obtain
pressure
altitude,
momentarily
set
the
barometric
scale
on
the
altimeter
to
29.92
and
read
pressure
altitude
on
the
altimeter.
Be
sure
to
return
the
altimeter
baromet-
ric
scale
to
the
original
barometric
setting
after
pressure
altitude
has
been
obtained.
Having
set
the
ring
to
correct
for
altitude
and
temperature,
read
the
true
airspeed
shown
on
the
rotatable
ring
by
the
indicator
pointer.
For
best
accuracy,
the
indicated
airspeed
should
be
corrected
to
calibrated
airspeed
by
referring
to
the
Airspeed
Calibration
chart
in
Section
5.
Knowing
the
calibrated
airspeed,
read
true
airspeed
on
the
ring
opposite
the
calibrated
airspeed.
VERTICAL
SPEED
INDICATOR
The
vertical
speed
indicator
depicts
airplane
rate
of
clim
b
or
descent
in
feet
per
minute.
The
pointer
is
actuated
by
atmospheric
pressure
changes
resulting
from
changes
of
altitude
as
supplied
by
the
static
source.
ALTIMETER
Airplane
altitude
is
depicted
by
a
barometric
type
altimeter.
A
knob
near
the
lower
left
portion
of
the
indicator
provides
adjustment
of
the
instrument's
barometric
scale
to
the
current
altimeter
setting.
VACUUM
SYSTEM
AND
INSTRUMENTS
An
engine-driven
vacuum
system
(see
figure
7-10)
provides
the
suction
necessary
to
operate
the
attitude
indicator
and
directional
indica-
tor.
The
system
consists
of
a
vacuum
pump
mounted
on
the
engine,
a
vacuum
relief
valve
and
vacuum
system
air
filter
on
the
aft
side
of
the
firewall
below
the
instrument
panel,
and
instruments
(including
a
suction
gage)
on
the
left
side
of
the
instrument
panel.
7-38
21
August
1981
,
(
