Table 2-1 Designations on the battery
Item
Designatio
n
Definition
1
Running
Battery normally working without fault
2
Fault
Battery is in a warning state, see troubleshooting in Chapter
8
3
SOC
Each green light represents 25% of the battery capacity.

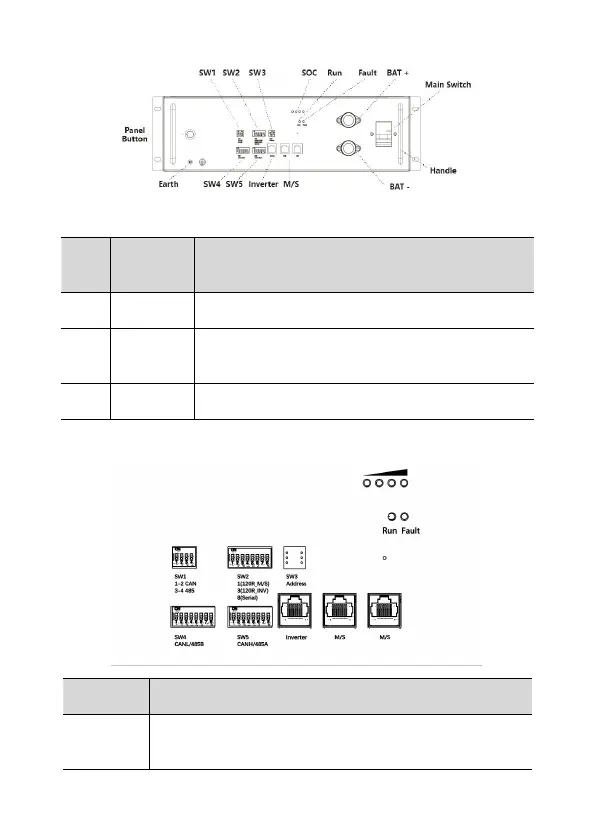

2.3 Communication interface plat
SW1
DIP switch selection for CAN or RS485
SW2
Resistance for communication and DIP switch for parallel/series
connection
