CFE CFE-5A - Final Cable Connections; Commissioning and Shutdown; Battery Commissioning

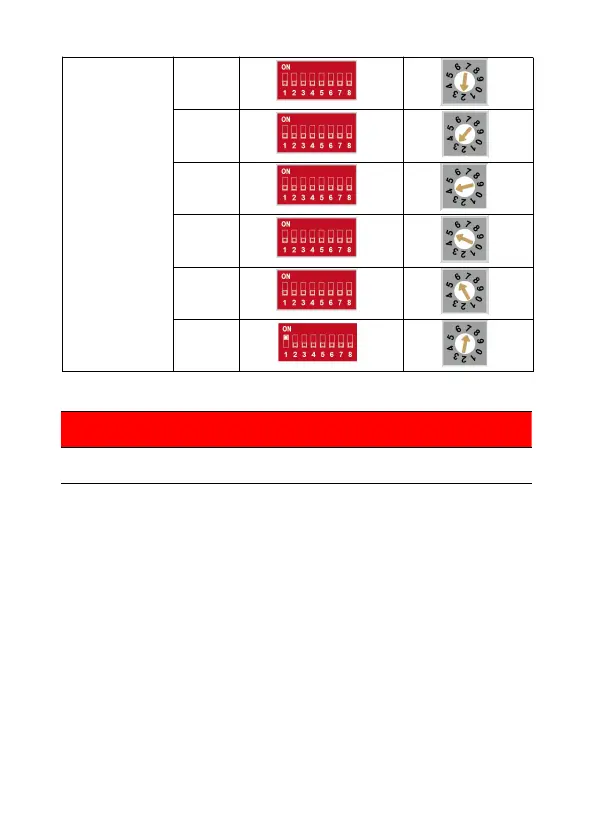

18
Slave 2
0
2
Slave 3
0
3
Slave 4
0
4
Slave 5
0
5
Slave 6
0
6
Slave 7
1
7
5.4 Cable connections
WARNING
Before connecting battery with inverter, please make sure the inverter turns off.
6 Commissioning
6.1 Commissioning battery
If there is only one battery installed, the following steps are used to put it in operation:
1) Press and hold the panel button on the left side of the unit for about 4s, and release
the panel button after the indicator lights on.
2) Make sure that the Run light is on. If it stays off, do not use the battery and contact
your distributor.
3) Turn the inverter on, and wait for the start-up sequence to complete fully.
When there are two or more batteries connected with parallel mode, after the charging
cable and the data cable are connected correctly, these steps are needed to follow to put
them in operation:
1) Check and ensure the battery voltage level is above 44V.
