2.1 MULTILEVEL INTERFACE
Different level of accessibility:
A first level with two simple knobs to set the
standard temperature of heating or domestic hot
water
Different level of accessibility:
A second level for the main user functions and to
the complete set of parameters by Menu

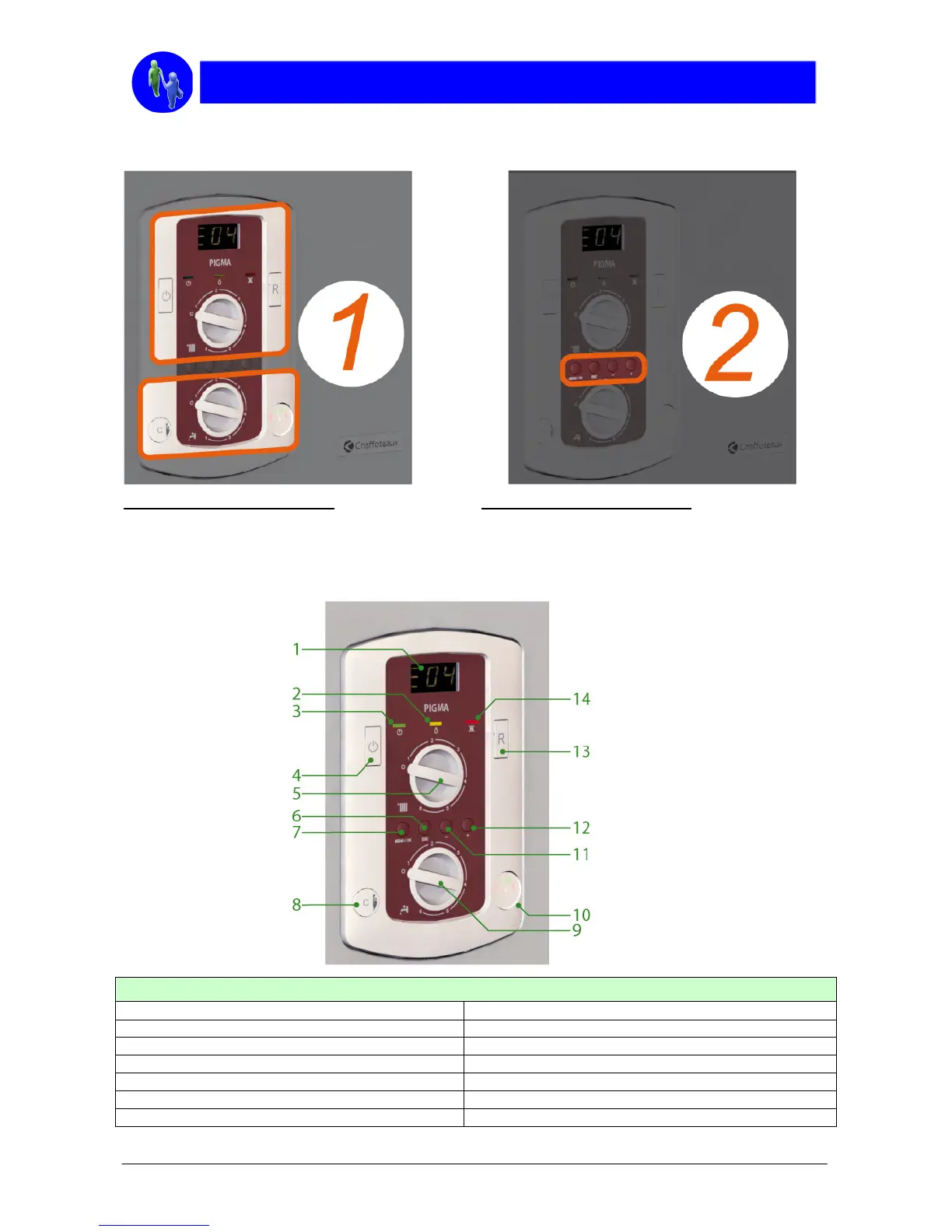

2.1.1 Interface description
LEGEND
1. Display 8. “Comfort” function button
2. Flame indicator (yellow light) 9. DHW temperature control knob
3. Power ON indicator (green light) 10. Manometer
4. ON-OFF button 11. “+” program button
5. CH temperature control knob 12. “-” program button
6. “Esc” button 13. “Reset” button
7. “Menu/Ok” button 14. “Lock out” indicator (red light)
