10.0 Parts List
23

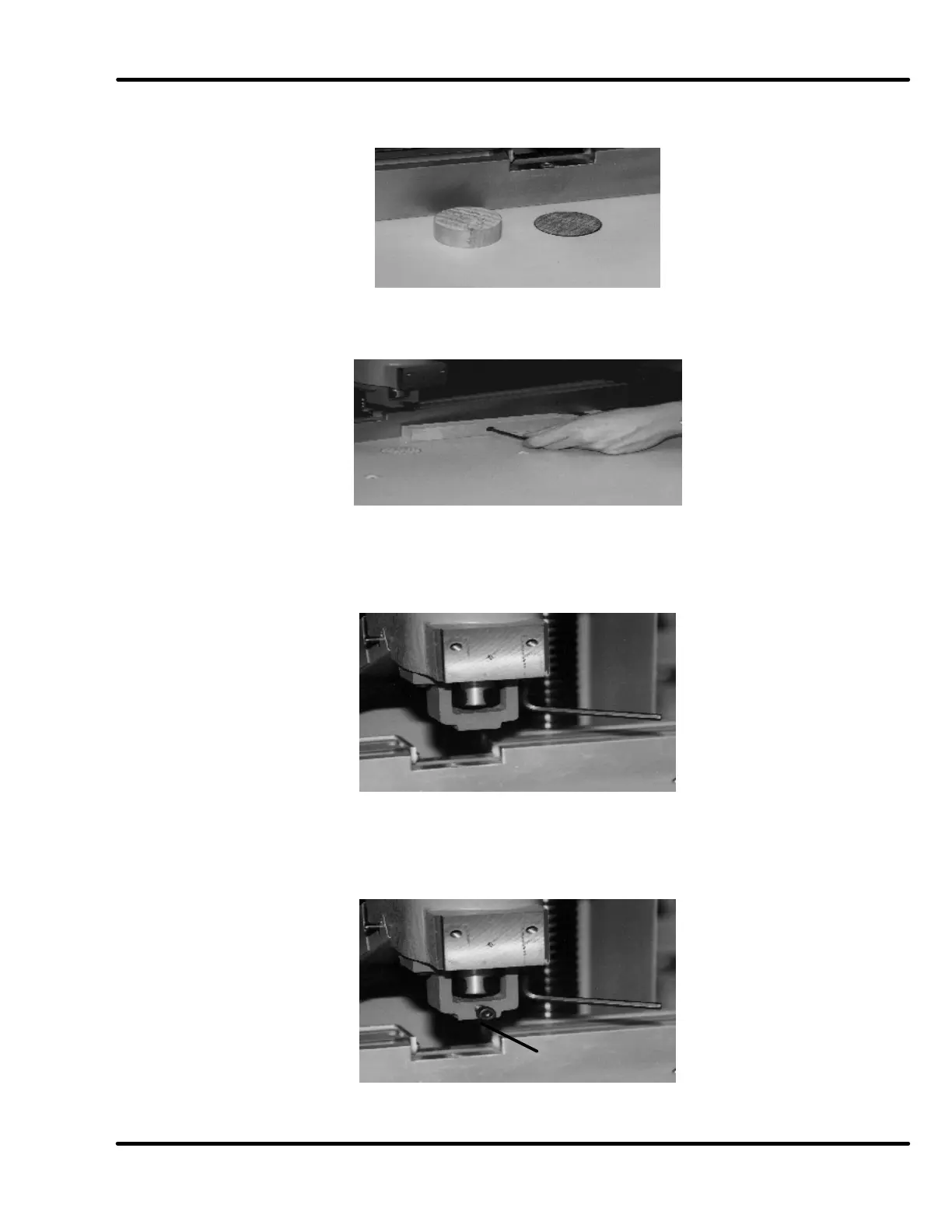

Next, remove the pressure foot by lifting up the foot and removing the two snap rings.
Figure 14
Replace the wooded drill block with the three fiber blocks.
Figure 15
Install the rear gage filler block on the right side of the backgauge.
Install the cornering attachment bracket as follows:
Figure 16
When using the cornering knives, the knife holder socket screw should face the rear of the machine;
this puts the bracket mounting holes in the rear position and centers the knife on the cutting block.
Figure 17
Socket Screw
