Safety

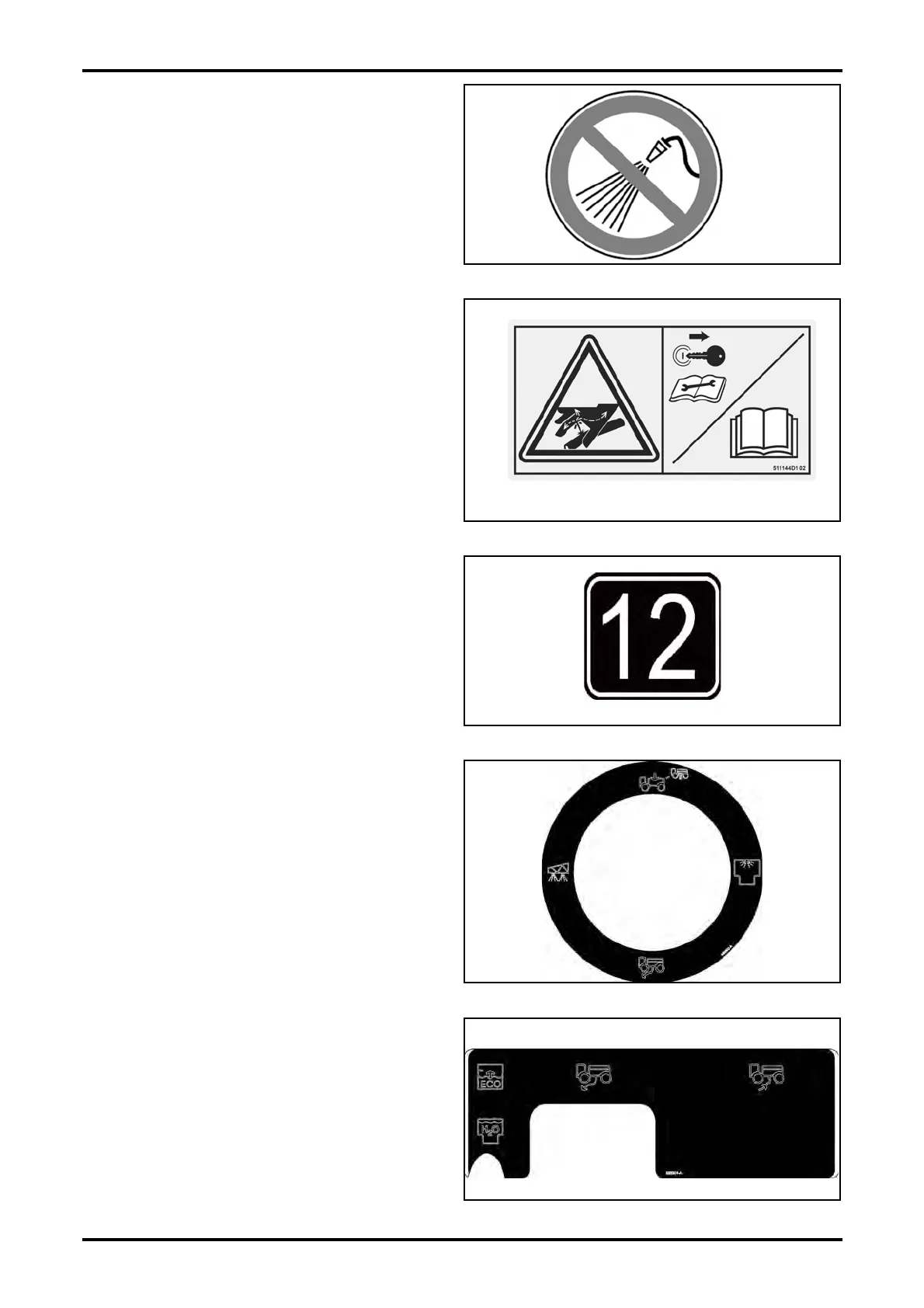

FIG. 25:
2. Warning - Never spray - On hydraulic and electric
equipment near this decal.
Safety sign is located on several places on the
machine near electric and hydraulic components.
Spraying with a high pressure washer on electric
and hydraulic components can cause malfunction
of the component or system.
FIG. 26:
3. Warning - High Pressurized fluid - Oil leak may
produce high pressure fluid stream which can
penetrate skin.
Safety sign is located near high pressurized fluid
tubes and hoses.
Do not touch stream or use hands to locate leak. If
spray penetrates skin, seek immediate medical
treatment.
FIG. 27:
4. Mesh size 12.
Decal (black) is located on suction filter housing.
Replace filters always by original filters.
FIG. 28:
5. 5 way ball valve.
Decal is located by the 5-way ball valve.
FIG. 29:
6. Fill and transfer valve spray tank.
Decal located on the left side by the coupling.
FIG. 25
FIG. 26
FIG. 27
FIG. 28
FIG. 29
