Safety
1-12 639782-1

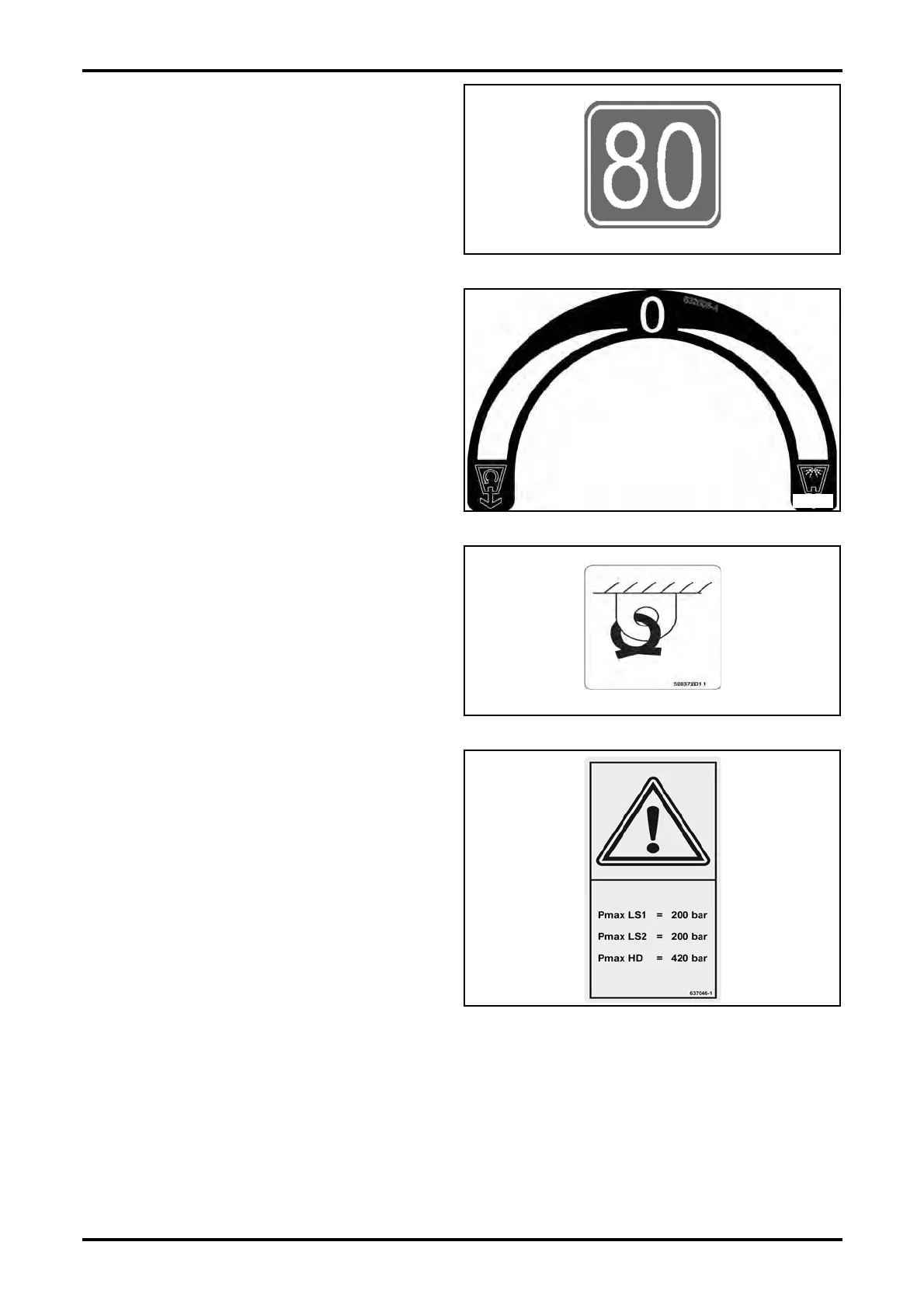

FIG. 30:
7. Mesh size 80.
Decal (blue) is located on suction filter housing.
Replace filters always by original filters.
FIG. 31:
8. Eductor valve.
Decal located on left side by ball valve.
FIG. 32:
9. Tie down.
Decal is located on front side under cab near
towing eye’s and on rear of machine next to towing
hook.
Use the eyes in the chassis for towing the machine
or tie down during transport on truck. Never use
other points, holes or hooks.
FIG. 33:
10. Pressures Hydraulic System.
Decal is located on left side of chassis behind
eductor.
The maximum pressure in the Hydraulic LS system
is 220 bar.
The maximum pressure in the Hydraulic HP
system is 420 bar.
FIG. 30
FIG. 31
FIG. 32
FIG. 33
