3 . INSTRUMENTS AND CONTROLS
3.20
Challenger MT500B EU
3.13 - BODY
Opening of side panels: turn the locking knobs approxi-
mately one quarter turn in an anticlockwise direction, then
lift the bonnet side panel.
To close the bonnet: repeat the operation in reverse order,
refitting the locking knobs in their original holes and turning
clockwise to ensure they hold in place correctly.
NOTE: Use the special wrench provided in the tool box
for the locking / unlocking operation.

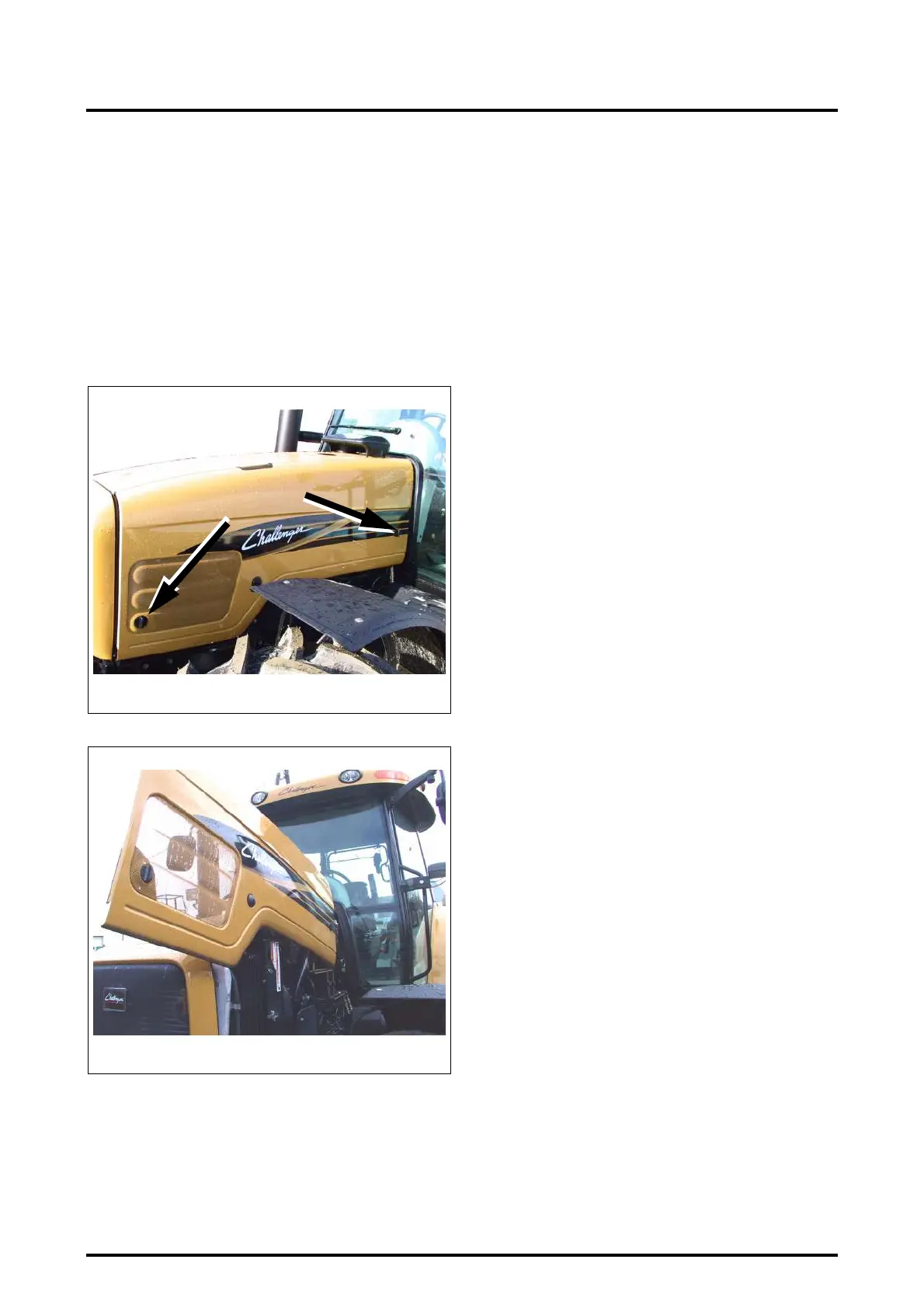

Fig. 28
MT-0131103
Fig. 29
MT-0141103
