5 . MAINTENANCE AND ADJUSTMENTS
5.11
Challenger MT500B EU
5

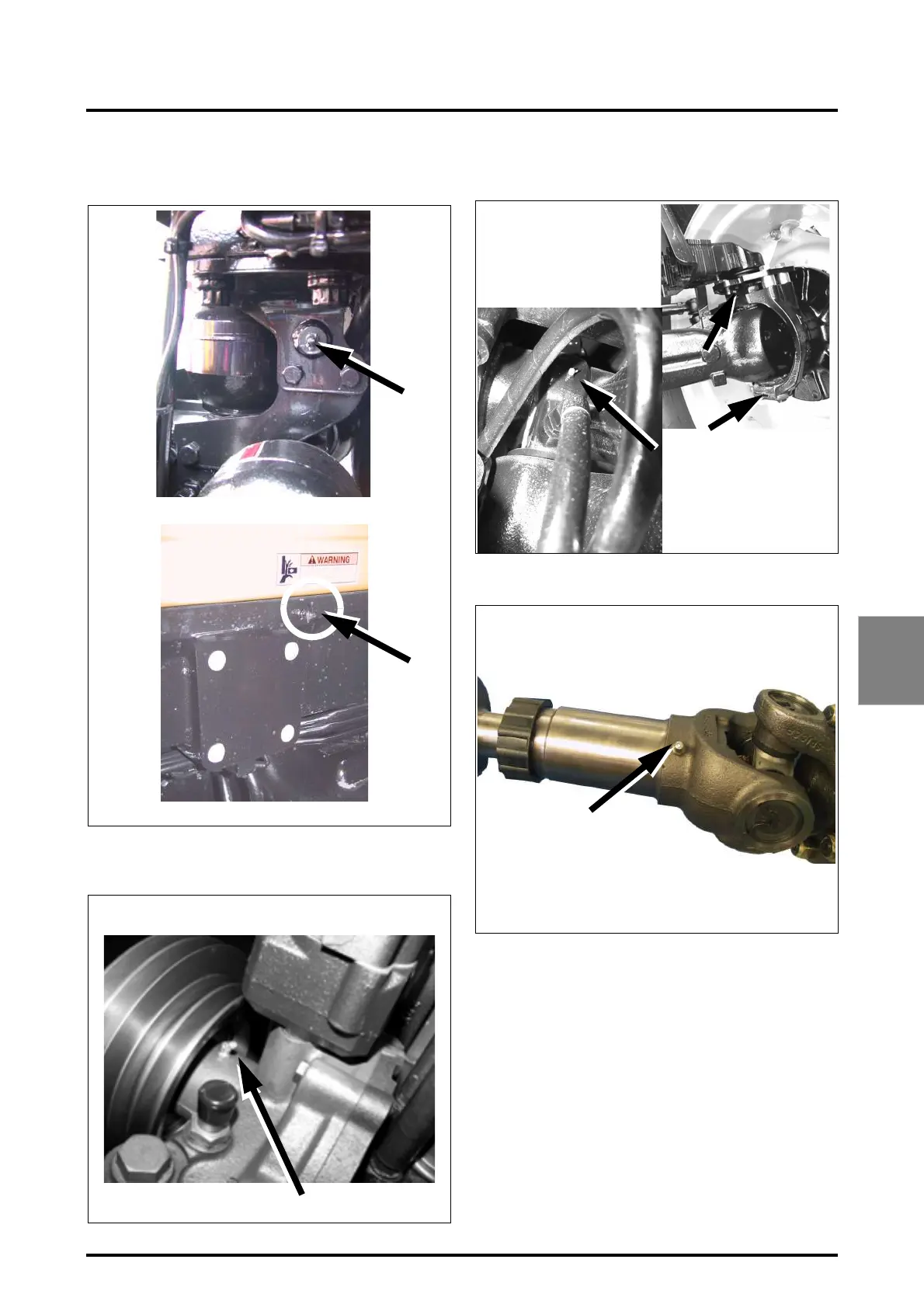

5. 4WD front and rear bearings (2 grease nipples)
NOTE: Lift the tractor before greasing.
6. Sisu engines: Grease engine water pump (1 grease
nipple)
7. Front stub pivot pins (4WD) (4 grease nipples)
8. Suspended front axle ram pivot pins (1 grease nipple)
9. 4WD drive shaft (rear) (1 grease nipple)
Fig. 5
MT-0251103
MT-0181103
Fig. 6
Z2-646-09-04
Fig. 7
Z2-581-05-03
Z2-582-05-03
Fig. 8
Z2-647-09-04
