5 . MAINTENANCE AND ADJUSTMENTS
5.33
Challenger MT500B EU
5
A 175A fuse, located near the starter, protects the gen-
eral power supply.
A 150A fuse, located near the batteries, protects the
general cab power supply.
Battery main switch option: A 3A fuse, located near the
battery main switch, supplies the headlight module
and radio.
Num. Amp Use
F1 10
Front right and rear left side light, back lighting
switches/console/cigarette lighter
F4 10
Instrument panel, gearbox/differential/4WD/cab
PTO/creeper neutral switches
F5 15 Stop lights
F6 10 Dyna VT actuator
F7 5
Electronic injection control module (ECM), reversing
light relay
F9 15 Suspended front axle (Optional)/front PTO (optional)
F11 10 Air conditioning compressor
F12 15 Auto IV Calculator
F13 7,5 Work headlights module
F14 7,5 Electric rear-view mirror (optional)
F16 30 Fuel injection pump solenoid valve (EEM)
F17 3 Brake switches
F18 7,5 Linkage / Diagnostics
F19 25 Pneumatic seat, fuel heater
F21 7,5 Linkage
F22 10
Start switch, Boc/Toc switches, Dynashift control
lever on steering wheel, throttle pedal sensor, PTO
switch back lighting, armrest
F23 30 Cigarette lighter
F25 25 Hazard warning light switch, permanent 12 volts
F26 30 Power socket
F27 25 Electronic injection control module (ECM)
F28 20 Electronic injection control module (ECM)
F30 15
Electronic injection control module (ECM), ther-
mostart
F32 10 Electronic injection control module (ECM)
F33 5 Electronic injection control module (ECM)
F34 15 Dipped lights
F35 7,5 Horn
F36 15 Road lights
F37 5 Clutch safety switch
F38 7,5
Front left and rear right side light, instrument panel
back lighting
F39 20 Handrail side / road lights switch
F40 15 Left-hand direction indicator
F41 15 Control buttons on Joystick (optional)
F44 15 Right-hand direction indicator
F46 15 Rear windscreen wiper
F47 10 Radio
F48 7,5 Suspended front axle (optional)
F49 50 Cab suspension (optional)
F50 50 Air conditioning, radio
F51 15 Instrument panel
F52 10 Power socket
F53 25 Front windscreen wiper
F54 30 Front work headlights
F55 25 Rear work headlights
F56 25 Work headlights on handrails and/or rear fenders
F57 30 Work headlights on handrails and/or footstep
F58 7,5 Work headlights module
F59 10 Flashing beacon (optional)
F60 10 + ignition on relay control
F61 25 Hazard warning lights
F62 40 Auto IV Calculator
SH2 30 Handrail work headlights
SH4 15 Without handrail road lights
SH5 15 Without handrail road lights
SH7 15 Direction indicators
SH9 15 Direction indicators
SH11 15 Direction indicators
SH13 15 Direction indicators
SH14 15 Direction indicators
R1 Handrail road lights
R3 Electronic injection control module (ECM)
R4 Reversing lights (optional)
R5 Stop lights
R6 Control buttons on Joystick (optional)
R7 Control buttons on Joystick (optional)
R8 Handrail road lights
R9 Electronic injection control module (ECM)
R10 Power socket
R11 Dyna VT actuator
R12 Wiper timer
R14 Air conditioning, radio
R15 + ignition on
R16 Cab suspension (optional)
R17 Front work headlights
R18 Rear work headlights
R19 Work headlights on handrails and/or rear fenders
R20 Footstep work headlights
R21 Left-hand direction indicator
R24 Right-hand direction indicator
R27 Flashing beacon (optional)
R28 Central direction indicator unit
R29 Manual air conditioning
Num. Amp Use

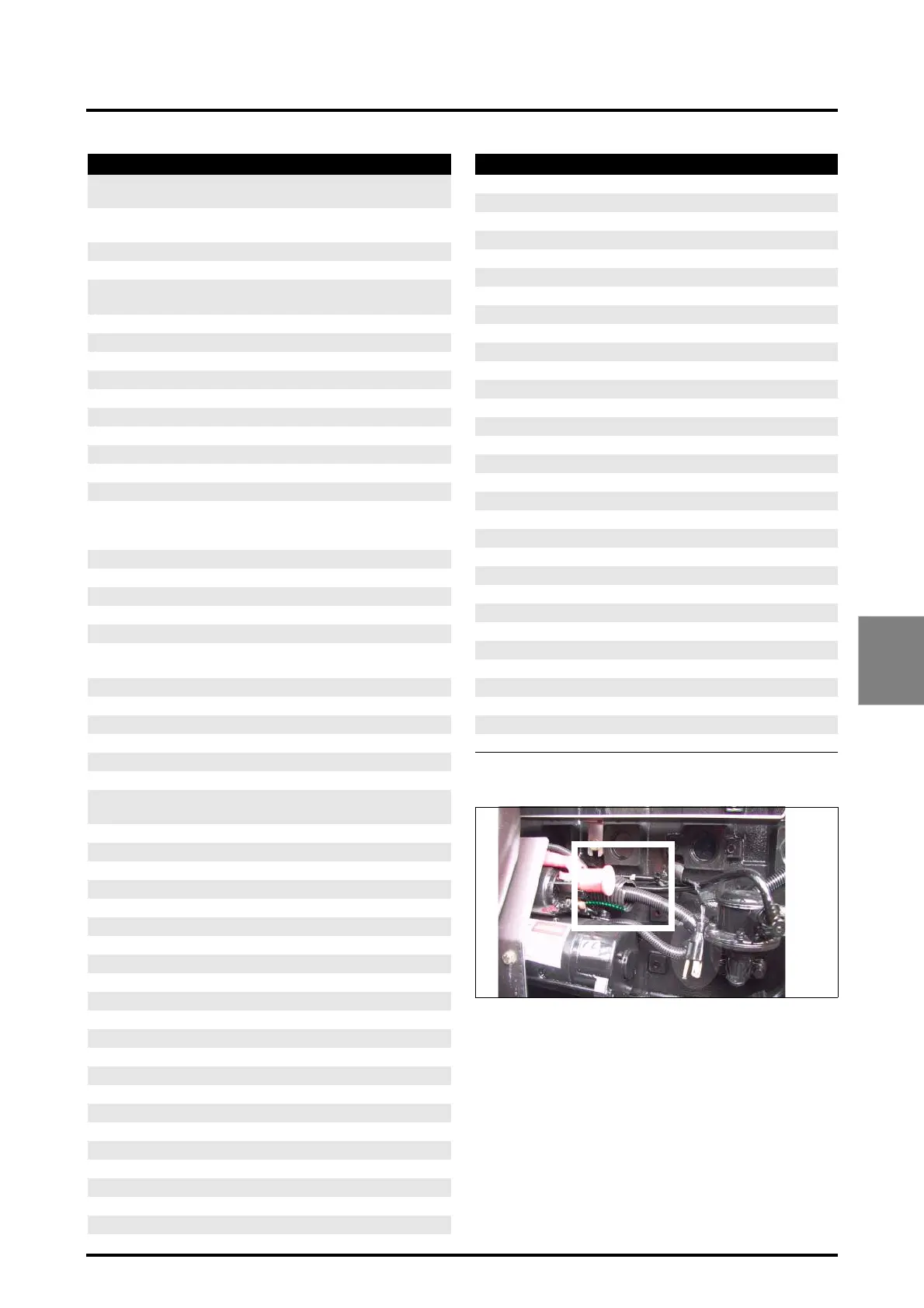

Fig. 50
