4 . MAINTENANCE AND ADJUSTMENTS
4.36
Challenger MT500B EU
4.18 - TOWING PROCEDURES AND
INSTRUCTIONS
• Open the cover located on the cab floor (right-hand side)
(Fig. 73).
• Remove the protective shield (Fig. 74 and Fig. 75).
• Position the emergency lever on the control unit (C) (Fig.
76).
• Move the "TECHstar CVT" transmission to neutral posi-
tion (middle position Ref. 1 Fig. 77).

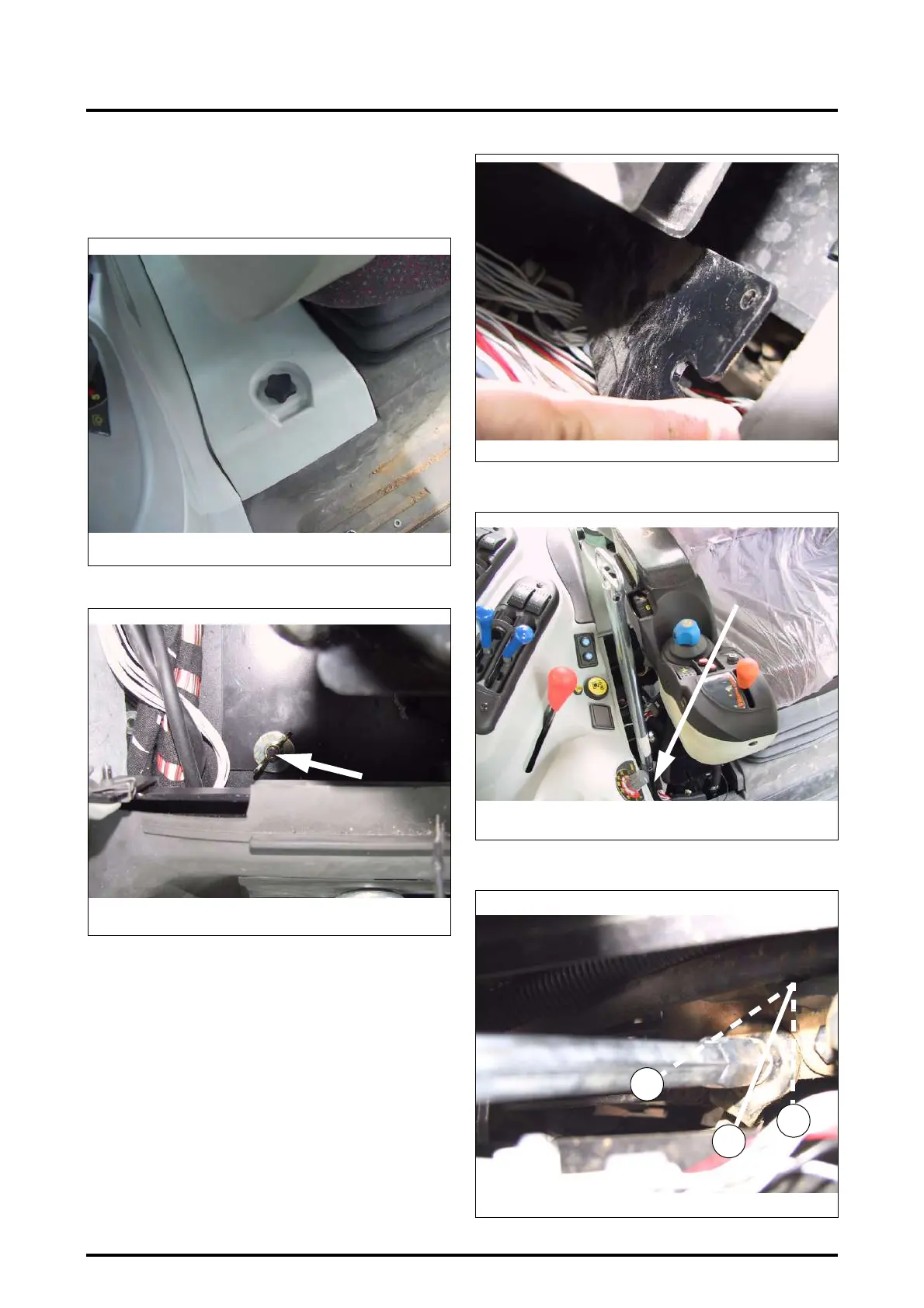

Fig. 73
Z2-597-05-03
Fig. 74
Z3A-777-07-04
Fig. 75
Z2-599-05-03
Fig. 76
Z3A-741-07-04
Fig. 77
2
1
3
Z2-601-0 7-03
