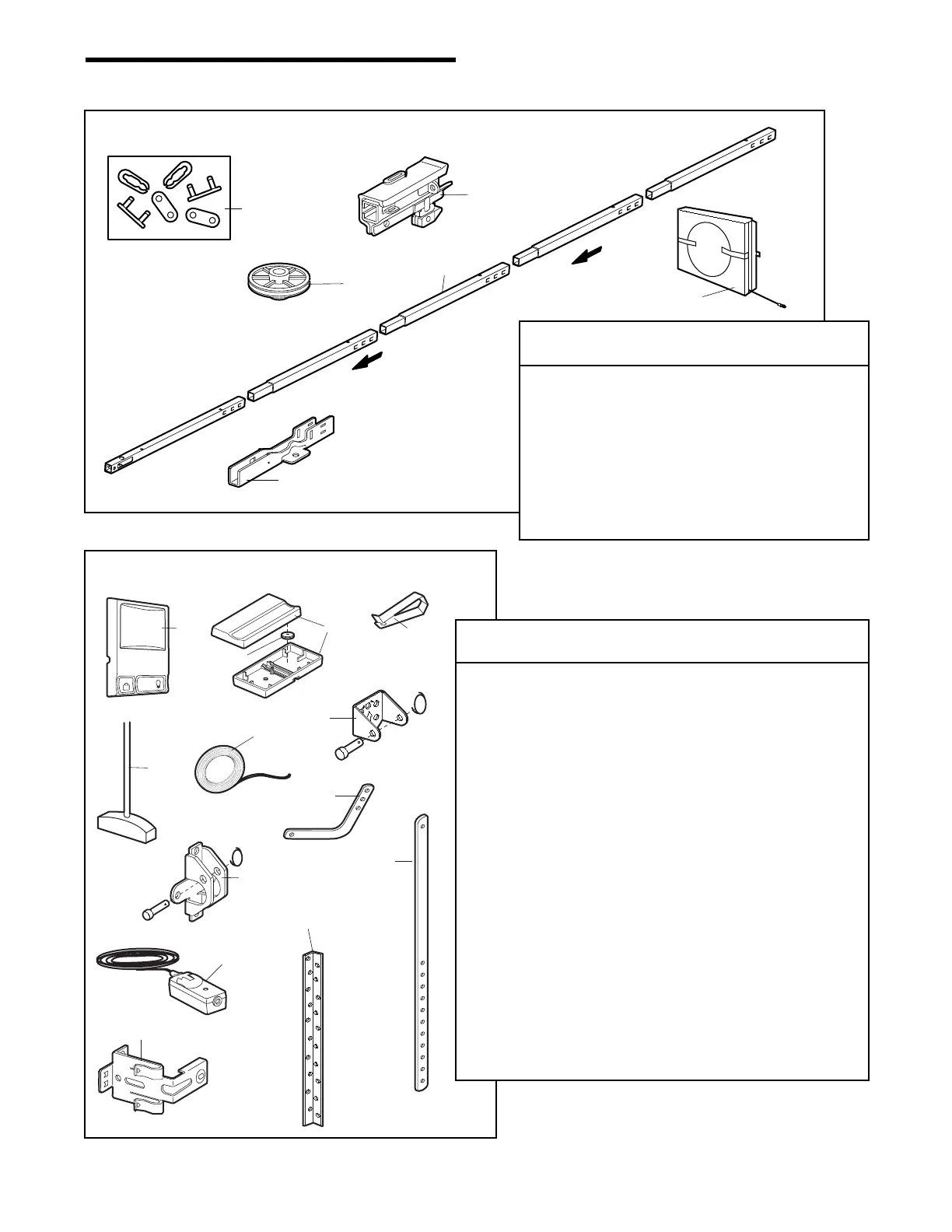

REPAIR PARTS
Rail Assembly Parts
KEY PART
NO. NO. DESCRIPTION
1 4A1008 Master link kit
2 41C5141-1 Complete trolley assembly
3 41A5665-2 Complete rail
4 144C56 Idler pulley
5 41A5807 Chain and cable
6 12D598-1 “U” bracket
NOT SHOWN
183A163 Wear pads
7
U
P
C
E
I
L
I
N
G
M
O
U
N
T
O
N
L
Y
9
10
11
NOTICE
5
6
8
4
12
13
3
2
1
L
O
C
K
L
IG
H
T
Installation Parts
KEY PART
NO. NO. DESCRIPTION
1 41C494-1 Multi-Function door control panel
2 950C Single-Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 217A238 2-Conductor bell wire, white and
white/red
7 41A5047 Door bracket w/clevis pin & fastener
8 41A5047-2 Header bracket w/clevis pin & fastener
9 178B35 Curved door arm section
10 178B34 Straight door arm section
11 12B776 Hanging brackets
12 41A5034 Safety sensor kit (receiving and sending
eyes) with 3' (.9 m) 2-conductor bell
wire
13 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A5258-11 Installation hardware bag
(includes hardware listed on page 7)
114A2860 Owner's manual
