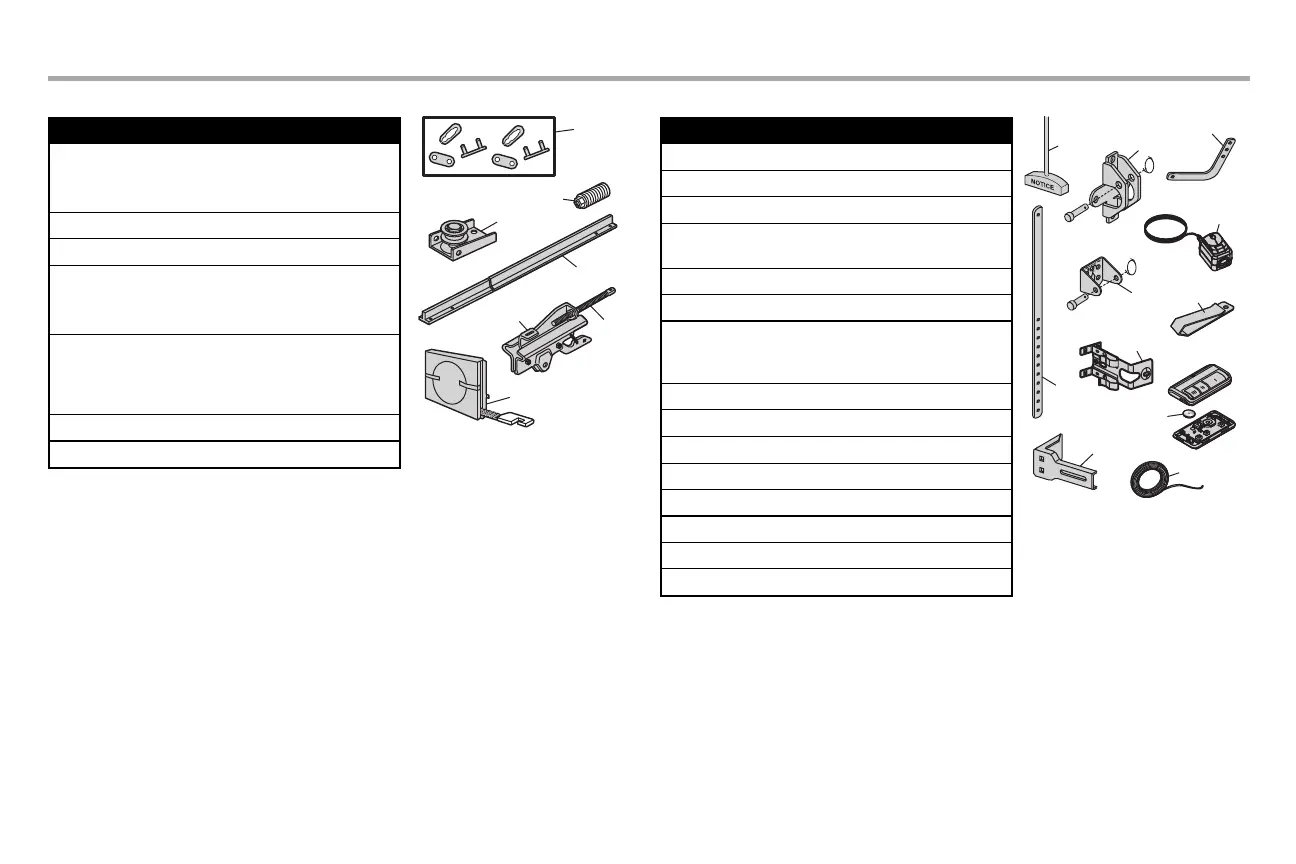

Rail Assembly Parts 87504-267
Description Part Number
1 Belt - for 7 foot door 041A5434-11A
Belt - for 8 foot door
041A5434-13A
Belt - for 10 foot door
041A5434-14A
2 Belt Pulley Bracket 041B5424
3 Master link 004A1008
4 One-Piece Rail 7feet (2.1m) 2777BD
One-Piece Rail 8feet (2.4m)
2778BD
One-Piece Rail 10feet (3m)
2770BD
5 Trolley Assembly Includes: MasterLink
(2), ClevisPin (1), Ring (1), BeltClip (1),
ThreadedShaft (1), and
TensionerAssembly (1)
041B3869-3A
6 Tensioner Assembly 041B4103
7 Trolley Threaded Shaft 041A6689
1
3
4
5
7
6
2
Installation Parts
Description Part Number
1 Curved door arm 041B0035B
2 Door bracket with clevis pin and fastener 041A5047-1
3 Emergency release rope and handle 041A2828
4 Header bracket with clevis pin and
fastener
041A4353-1
5 Remote control visor clip K029B0137
6 Safety sensor bracket 041-0155-000
7 Safety sensor kit with receiving and
sending sensors with 3 feet (.9 m) 2-
conductor wire
041-0136
8 Straight door arm 4178B0034B
9 White and red/white wire 041B4494-1
10 3V CR2032 lithium battery K010A0020
11 Extension bracket (optional) 041A5281-1
Not Shown
Installation hardware bag 041A2770-17
User’s Guide 114-5835-000
Owner's Manual 114-5835-000
1
2
3
4
6
7
8
10
5
9
11
