Chamberlain C273 - Hardware; Assembly


*CTFYCTG
ASSEMBLY INSTALLATION
DOOR CONTROL
Insulated Staples
(Not Shown)

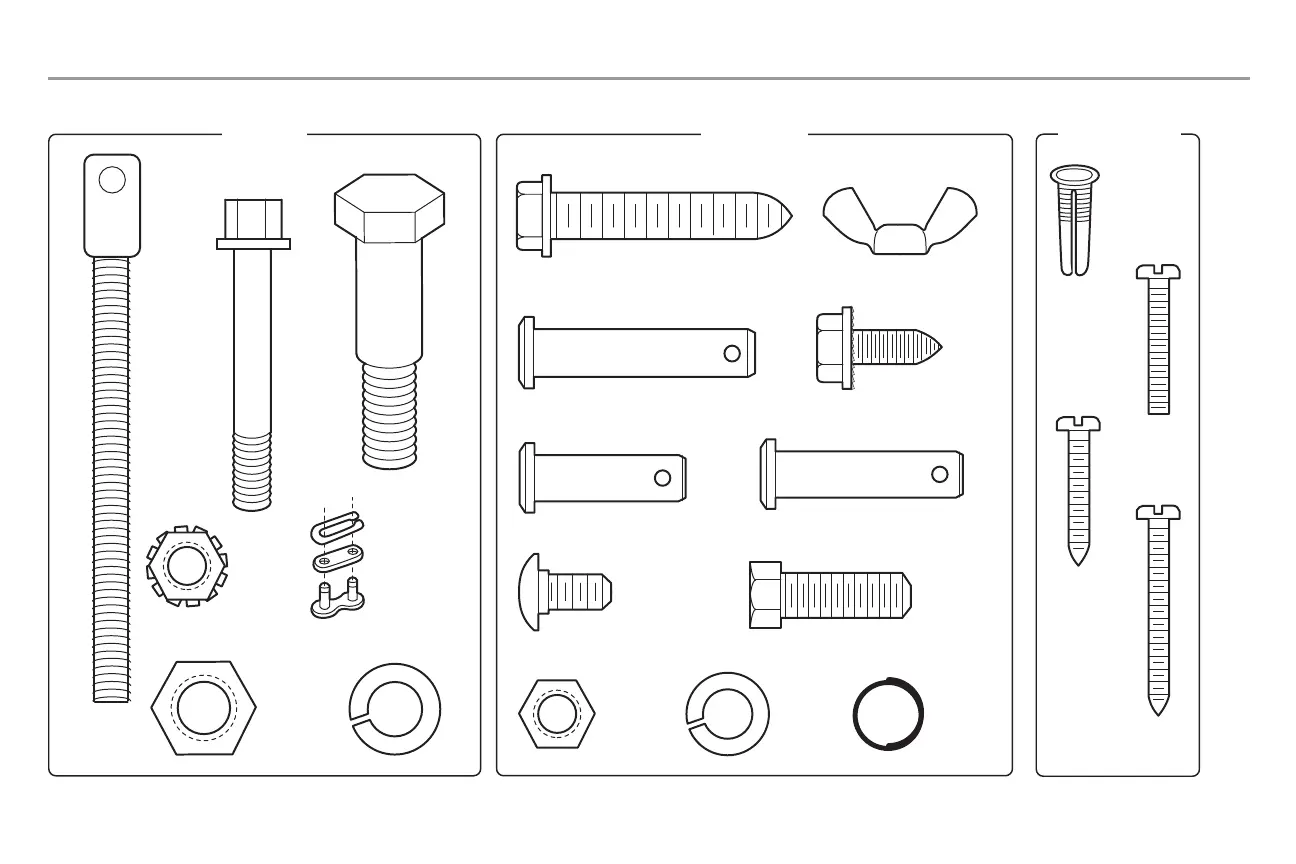

Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
Bolt
Nut 3/8" Lock Washer 3/8"
Master Link (2)
Threaded
Shaft
Clevis Pin 5/16"x1-1/2"
Ring
Fastener (3)
Hex Bolt 5/16"-18x7/8" (4)
Lock Washer
5/16"-18 (5)
Nut
5/16"-18 (6)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"
Carriage Bolt
1/4"-20x1/2" (2)
Wing Nut
1/4"-20 (2)
Lag Screw 5/16"-9x1-5/8" (4)
Screw
6ABx1" (2)
Screw
6ABx1-1/2" (2)
Drywall
Anchors (2)
Screw
6-32x1" (2)
