Chamberlain Elite RSL12V Replacement Parts

NOT SHOWN (continued)
29-NP712 7AH Battery, 12 Vdc
K94-35225 7AH Battery Harness
A12330SGLPK 33AH Battery with Harness
©2010 The Chamberlain Group, Inc.
01-35629F All Rights Reserved
ITEM PART NUMBER DESCRIPTION
1 K1A6426-2 Control Board
2 K1C3196-5 Antenna
3 K13-34729 Dust Guard
4 K13-34745 Learn Limit Nut
5 K15-36001 Output Sprocket
6 K16-GT2-4 Drive Belt
7 K19-25087M #25 Chain with Master Link
8 K204B195-1 Transformer, 14.5 Vac, 30 VA
9 K20-9012B-1 Motor, 12 Vdc
10 K32-34701-2 Gear Reducer
11 K73-34718-1 Chassis
12 K75-34709-1 Control Enclosure with Mounting Hardware
13 K75-35662 Limit Chain and Sprocket
14 K76-34743 Access Panel, 120 Vac with Receptacles
15 K76-35664 RPM Module
16 K94-35225 Battery Harness Assembly
17 K94-35659 Reset Switch and Harness
18 K29-50279-1 Alarm
19 Q029 Learn Limit Switch
20 K1A6636 Receiver Module 315 MHz
21 Q013 Idler Pulley (1) with Mounting Hardware
NOT SHOWN
K1A6636-1 Receiver Module 390 MHz (optional)
K13-34720 Operator Cover
1941240 Gate Chain #41 (10 ft)
1950307 Master Link #41
Q003 Chain Bolt
Q004 Chain Bracket

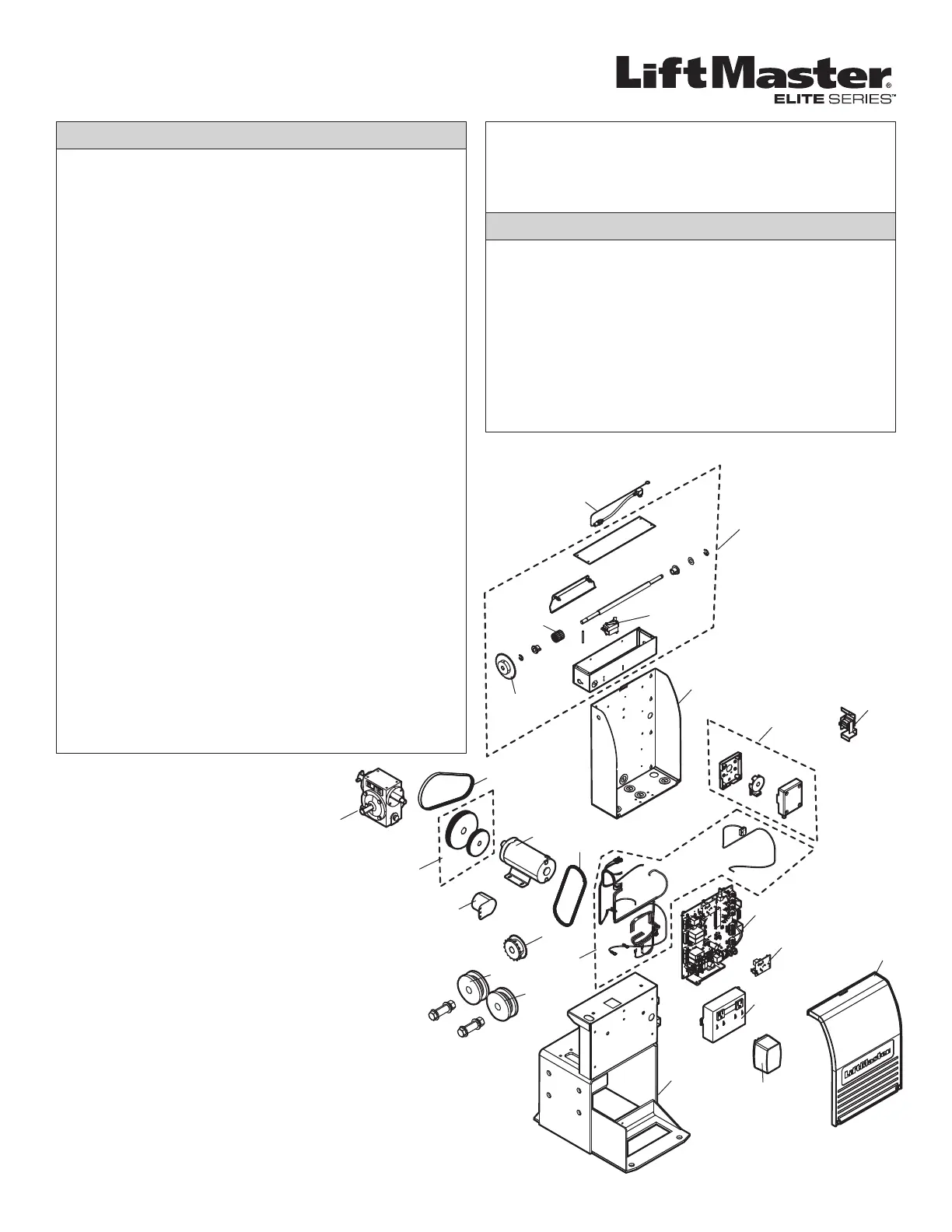

REPLACEMENT PARTS
MODEL RSL12V™ & RSL12VH™
INDIVIDUAL PARTS
ITEM PART NUMBER DESCRIPTION
K1 K17-35661 Pulley Kit
Complete with: Gear Reducer Pulley,
Motor Pulley
K2 K76-34740 Learn Limit Assembly Kit
Complete with: Learn Limit Switch, Learn
Limit Nut, Limit Shaft Assembly, Sprocket,
Wire Harness
K3 K94-35658 Wiring Harness Kit
Complete with: Wiring, Limit/Battery/RPM
KITS
1
2
4
5
21
K3
K2
6
7
8
9
10
11
12
13
14
15
16
17
18
20
3
19
21
K1
