Carton Inventory/Repair Parts
Your garage door opener is packaged in one carton which contains the motor unit and all parts
illustrated below.Accessories vary depending on the garage door opener model purchased. Depending
on your model, other accessories may be included with your garage door opener. Instructions for these
accessories will be attached to the accessory and are not included in this manual. Save the carton and
packing material until the installation and adjustment is complete. The images throughout this manual
are for reference only and your product may look different.

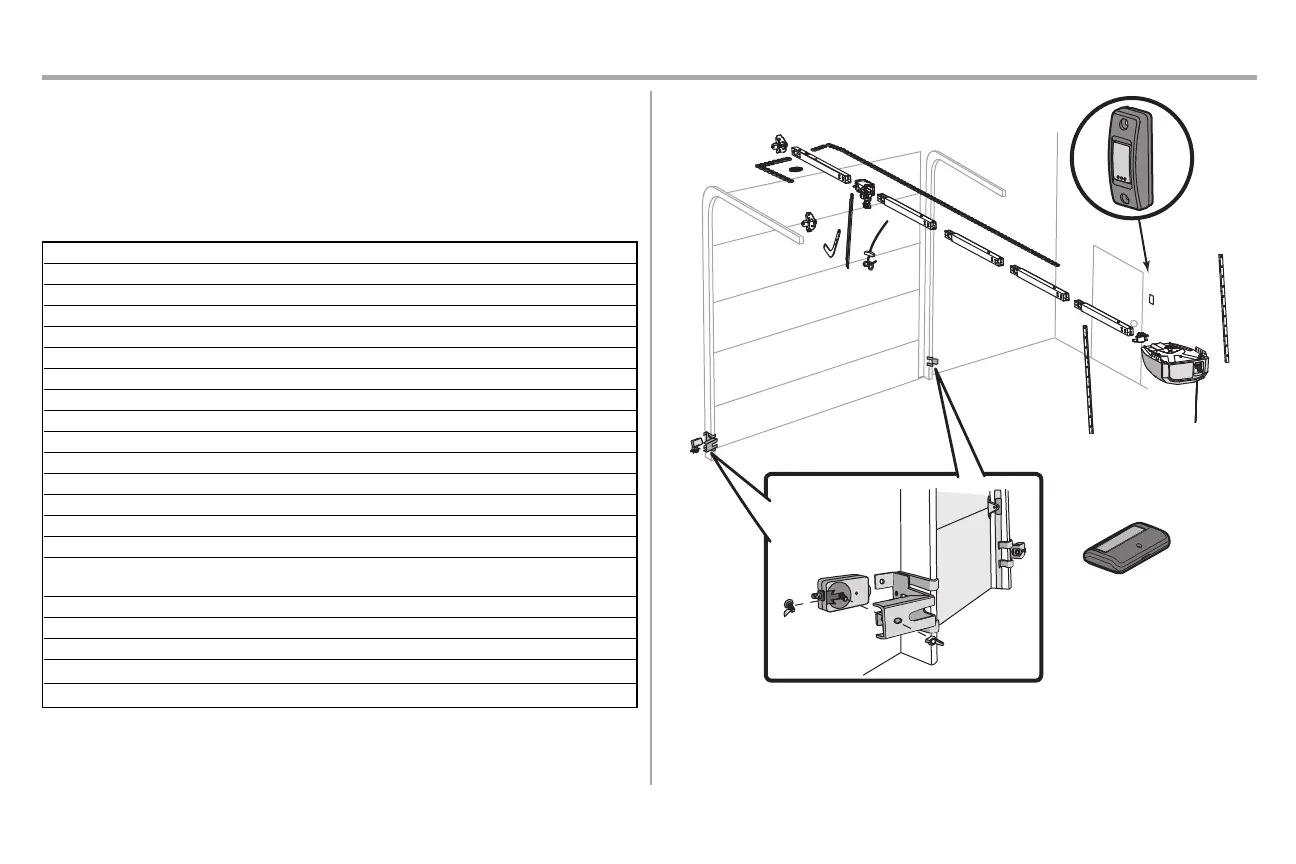

Key Description Part #
A Header bracket 41A5047-1
B Pulley (In hardware bag)
C Door bracket 41A5047
D Curved door arm
E Straight door arm (Packaged inside front rail section)
F Trolley NOTE: Be sure to assemble the trolley before sliding onto rail. 41C5141-1
G Emergency release rope and handle (In hardware bag)
H Rail (1 front and 4 center sections)
I Hanging brackets (2) (Packaged inside the front rail section)
J Garage door opener (motor unit)
K Chain spreader (In hardware bag)
L Chain and cable
M Door control 041A7367-3
N Remote control 950ESTD
O
The Protector System
®
Safety reversing sensors with 2 conductor white and white/black
wire attached: Sending Sensor (1), Receiving Sensor (1)
41A5034
P Safety Sensor Brackets (2) 041A5266-1
NOT SHOWN
White and red/white wire 41B4494-1
Owner's manual 114A4706
