13
Installation

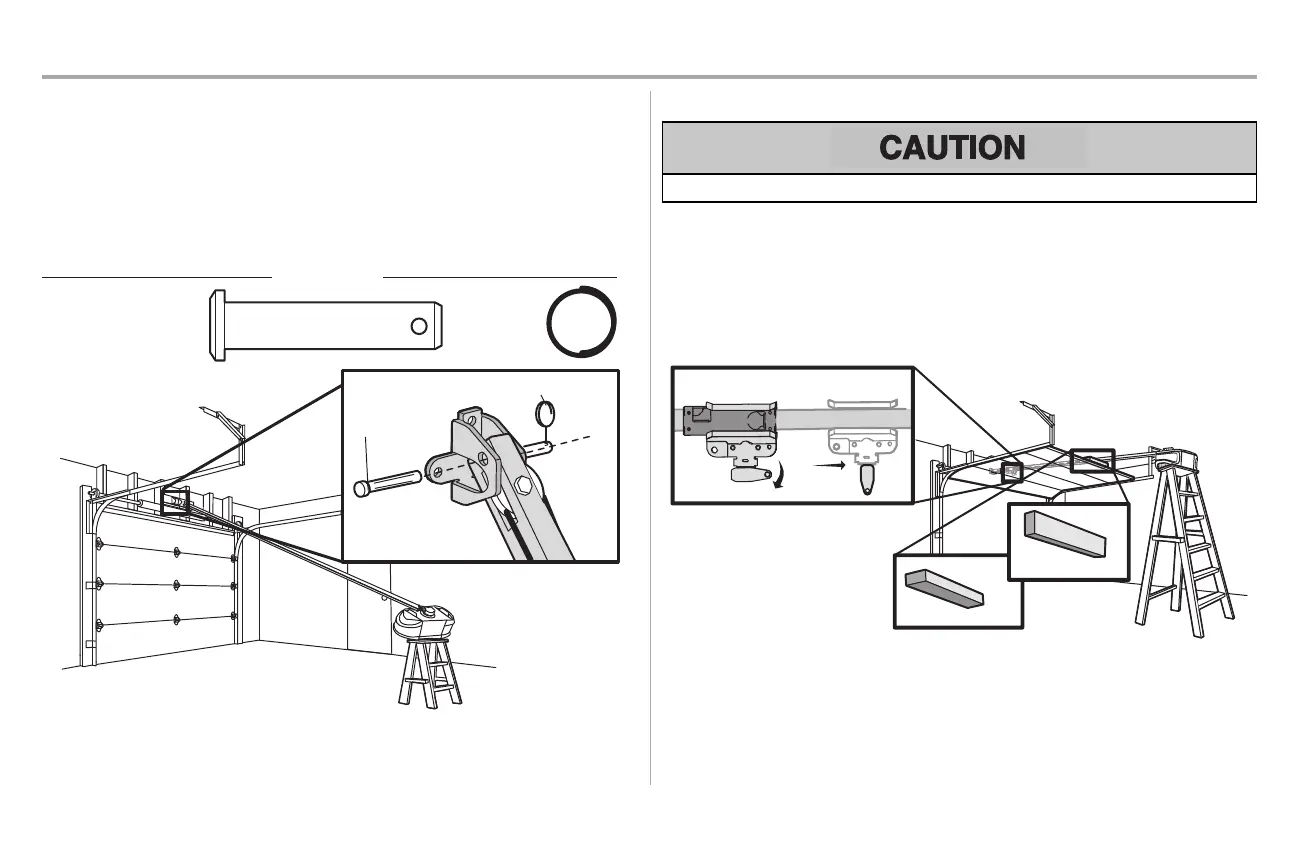

STEP 3 Attach the rail to the header bracket
1. Position the opener on the garage floor below the header bracket. Use packing material as a
protective base.
NOTE: If the door spring is in the way, you will need help. Have someone hold the opener
securely on a temporary support to allow the rail to clear the spring.
2. Position the rail bracket againstthe header bracket.
3. Align the bracketholes and join with a clevispin as shown.
4. Inserta ring fastener to secure.
HARDWARE
Clevis Pin 5/16"x1-1/2"
Ring Fastener
Clevis Pin
5/16"x1-1/2"
Ring Fastener
STEP 4 Position the garage door opener
To preventdamage to garage door, restgarage door opener rail on 2x4 placed on top section of door.
1. Remove the packing material and liftthe garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.For one-piece doors without tracks,
lay the 2x4 on it's side.
NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall
enough you will need help at this point. If the door hits the trolley when it is raised, pull the trolley release
arm down to disconnect the inner and outer trolley. Slide the outer trolley toward the garage door
opener. The trolley can remain disconnected until instructed.
One-piece
door without
tracks
All other door types
Connected Disconnected
