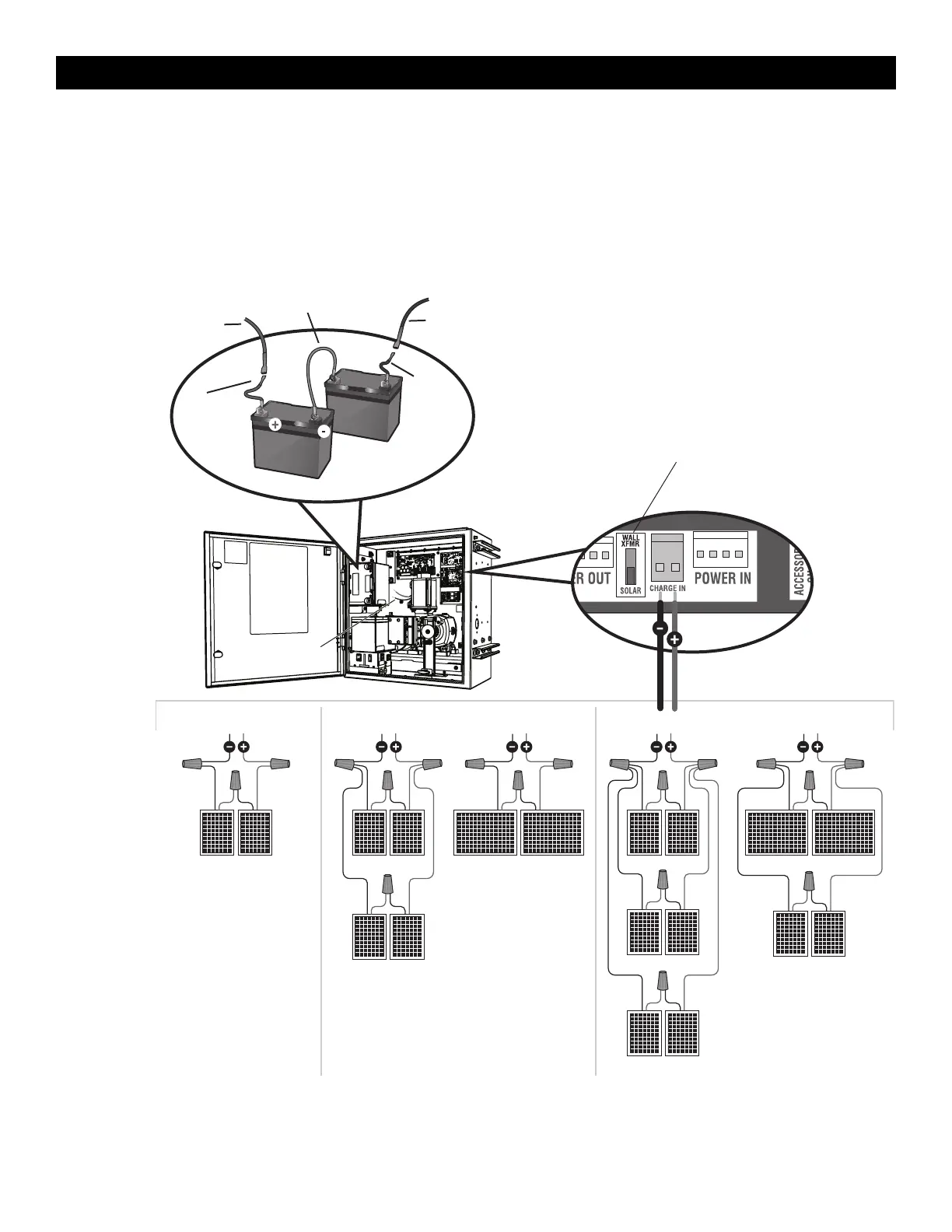

Wire the Solar Panels and Batteries
20W min. - 60Wmax. for solar applications.
NOTE: 33AH batteries are strongly recommended for optimal solar
performance.
1. Connect (+) wire from solar panels to (+) pin on CHARGE IN
connector on control board.
2. Connect (-) wire from solar panels to (-) pin on CHARGE IN
connector on Control board.
3. Set the WALL XFMR/SOLAR switch to SOLAR.
10W 10W
10W 10W
40W APPLICATION IN SERIES
10W 10W
10W 10W
20W 20W
60W APPLICATION IN SERIES
10W 10W
10W 10W
10W 10W
20W 20W
20W APPLICATION IN SERIES
Battery Wiring
Control Board
Red Wire
Black Wire
Jumper (White Wire)
from K41-0102-000
Red wire from
battery harness
33AH, HD Gates
K41-0102-000
Black wire
from battery
harness 33AH,
HD Gates
K41-0102-000
33AH Batteries
Set Switch to SOLAR
SOLAR PANELS
