Chamberlain JDC7S1BMC - JDC;JHDC Assembly; Configure the Operator

16
JDC/JHDC Assembly
Congure the Operator
Units are now dual handed and can be used in either the right or left side.

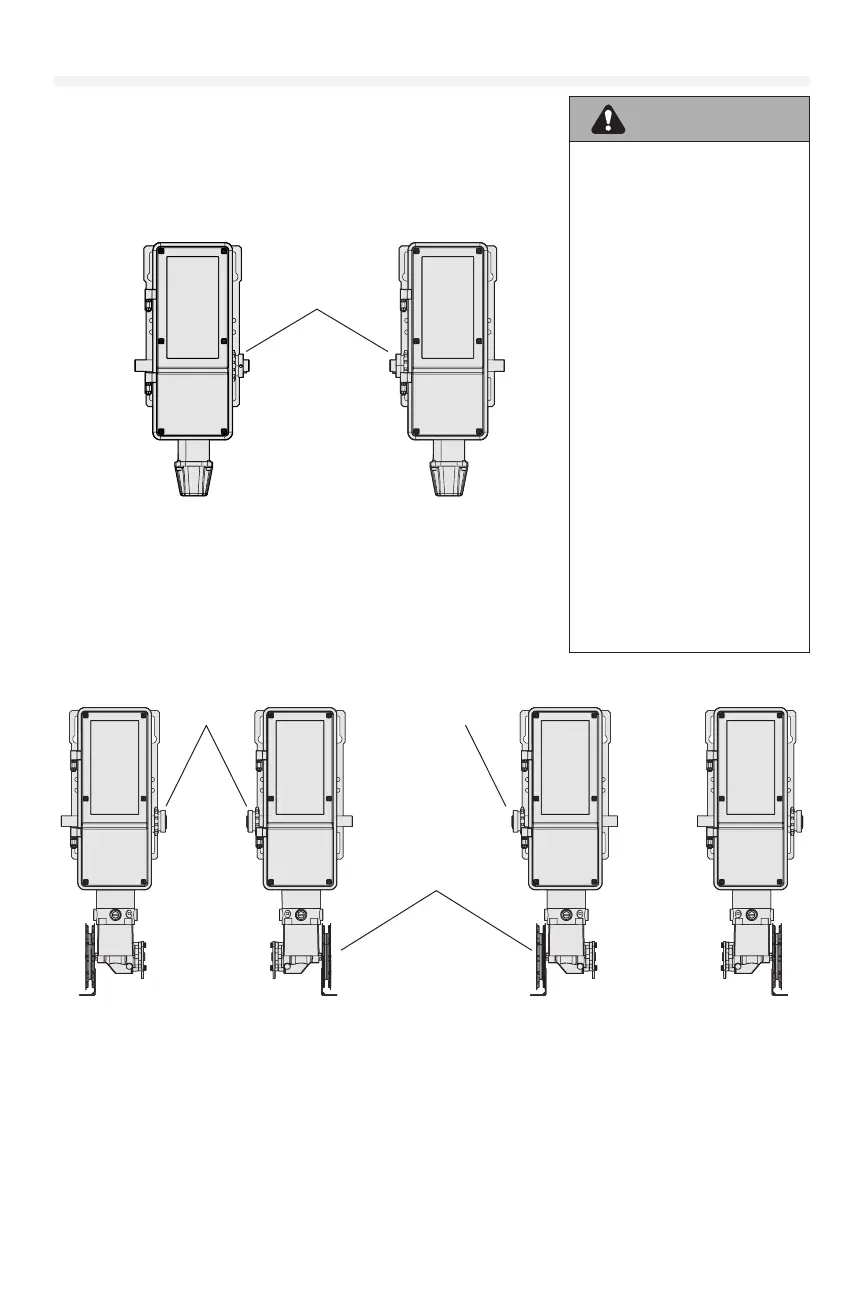

1. Select right (R) or left (L) handing for the sprocket and hoist as
needed.
• For JDC models, the drive sprocket can be mounted on either
the right or left side.
• For JHDC models with manual hand chain systems, the drive
sprocket can be installed as a right (R) hand or left (L) hand.
NOTE: The hoist will need to change location depending on the wall
mount or front of hood application shown in the images below.
• To reposition the hoist:
a. Remove the four allen bolts.
b. Pull the housing down and away from the motor, then rotate the housing 180 degrees.
c. Place the housing back up to the motor and tighten back in place using the allen bolts.
2. Place the operator drive sprocket on the appropriate side of the operator for your installation type. To avoid
potential damage caused by an overhung load, position the sprocket as close to the center of the exposed drive
shaft.
WARNING
To prevent possible SERIOUS
INJURY or DEATH:
• DO NOT connect electric
power until instructed to do so.
• If the door lock needs to
remain functional, install an
interlock switch.
• ALWAYS call an Authorized
Service Technician if door
binds,sticks or is out of
balance. An unbalanced
door may NOT reverse when
required.
• NEVER try to loosen, move
or adjust doors, door
springs,cable, pulleys, brackets
or their hardware, ALL of which
are under EXTREME tension
and can cause SERIOUS
PERSONAL INJURY.
• Disable ALL locks and remove
ALL ropes connected to
door BEFORE installing and
operating door operator to
avoid entanglement.
• Fasten the operator SECURELY
to structural supports of the
building.
• Concrete anchors MUST be
used if installing ANY brackets.
L
Drive Sprocket
R
Wall Mount Front of Hood Mount
Drive
Socket
Drive
Socket
Hoist
R
L
R
L
