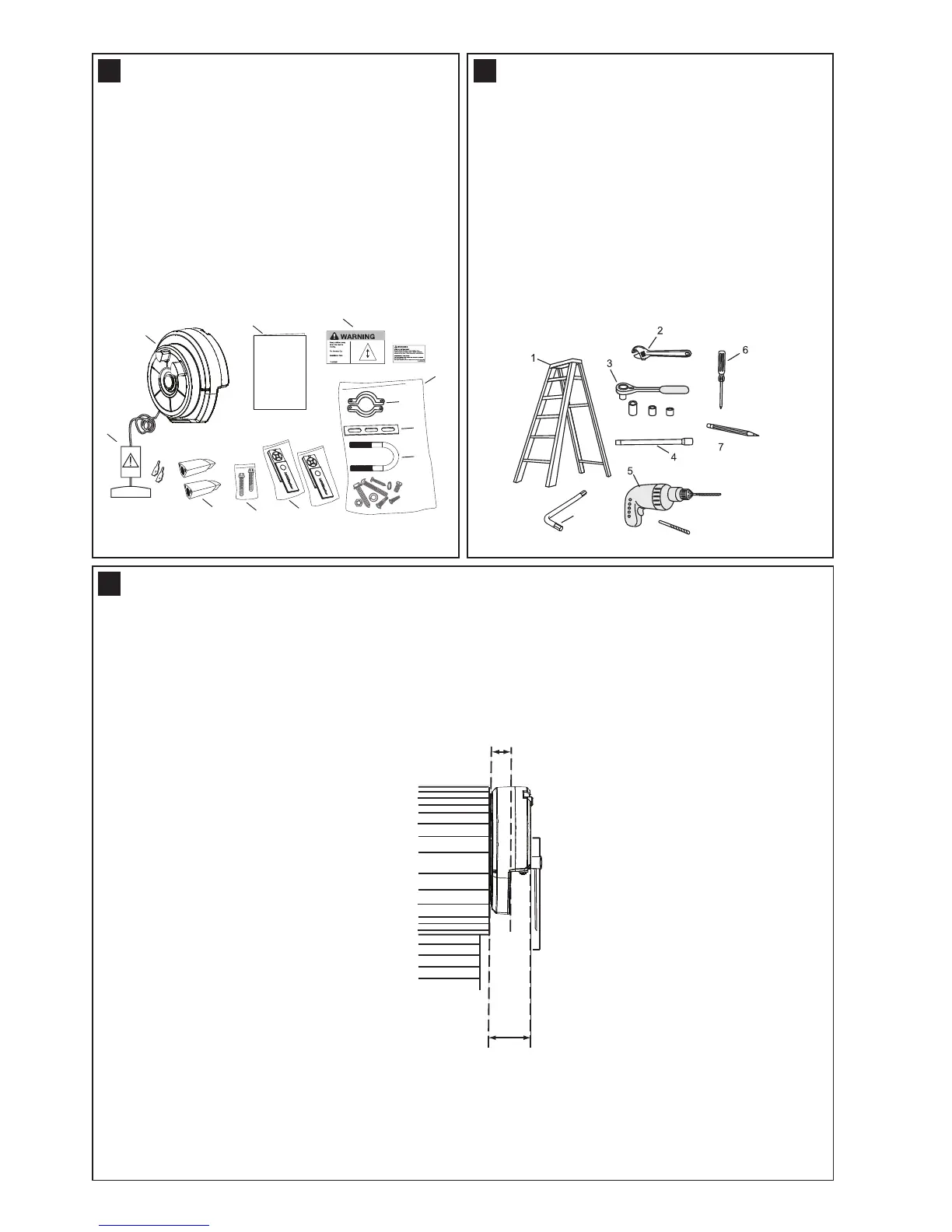

CARTON INVENTORY
1
13 mm, 10 mm,8mm
5.5 mm
8
TOOLS REQUIRED
2
1. Ladder
2. Adjustable wrench for U-bolts already installed
on the door
3.8mm socket, 10 mm socket and 13 mm extended
socket and socket wrench
4. 300 mm socket extension (for minimum side-room
installations)
5. Drill and 5.5 mm drill bit
6. Philips-head screwdriver
7. Marker pen
8.8mm allen key
9. Door stand or similar device to safely support door
(not shown)
DOOR REQUIREMENTS
3
Ensure that there is at least 40 mm from the edge of the curtain to the edge of the bracket. If the roller door
drum is on the edge of the curtain or isasmaller diameter, additional clearance may be required.
edge of curtain to edge of
door bracket 40 mm
Direct clamping
method
The maximum allowable door height is 5.5mwith a maximum curtain area of 15.0 m²* . The door must be spring
balanced.
*The Protector System™ (IR Beams) must be installed if the force at the edge of the closing door exceeds
400N(40 kgf). Door axle diameter must not exceed 35 mm.
4
MANUAL
1
2
3
4
5
6
7
8
9
10
11
1. Release handle, cord, keys and risk of entrapment card
2. Opener
3. Manual (this document)
4. Warning label and risk of entrapment label
5. Hardwarebag including...
6. Stop collar
7. Clamp plate
8. Clamp bracket
9. Transmitters
10. Screws for drive leg extensions
11. Drive leg extensions
