Chamberlain ML750 - Special Features Overview; Door Within a Door Connection; Flashing Light Connection

A
B
8
7
6
5

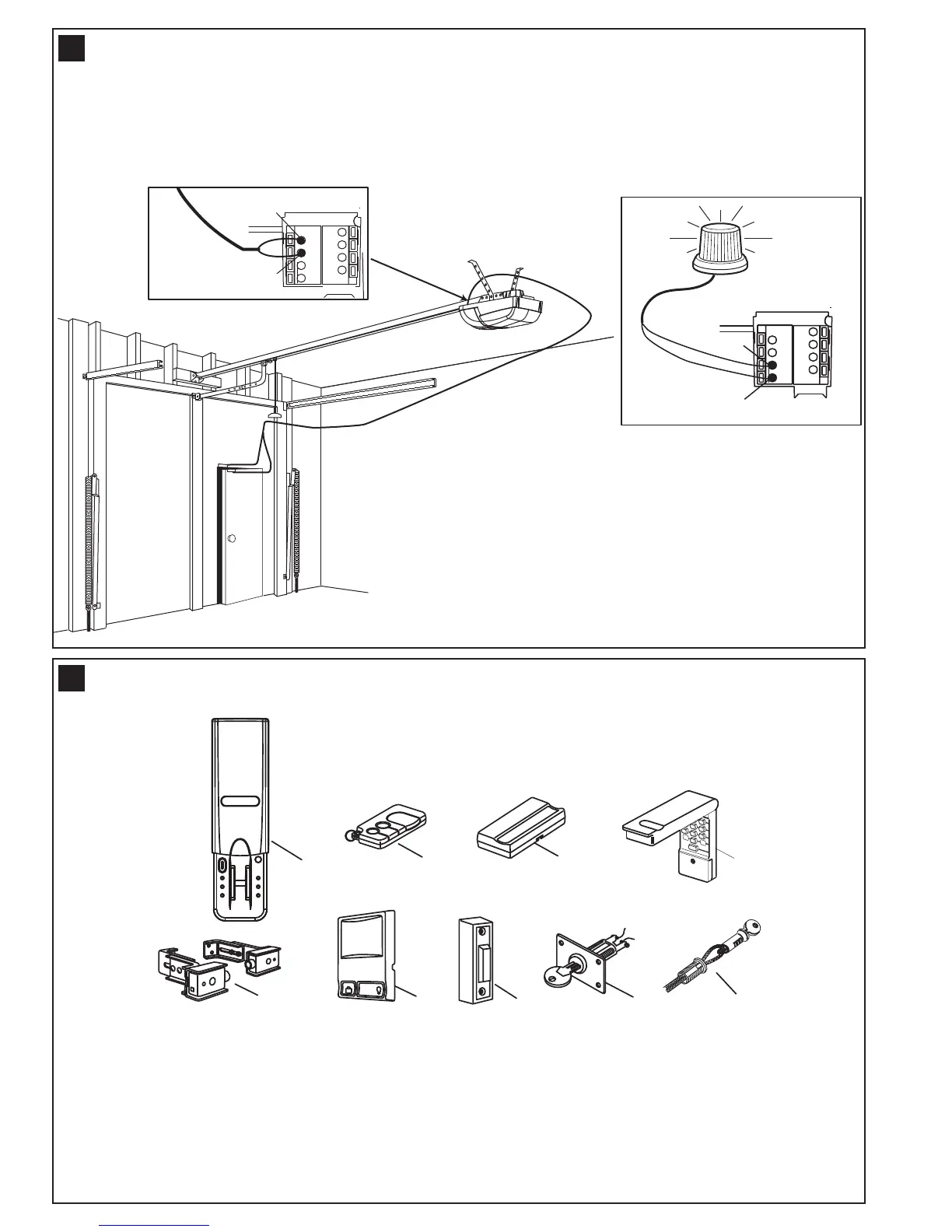

A. Door within a door connection
Open light lens. Locate auxiliary quick connect terminals (remove factory installed link). Insert bell wire into
quick connect terminals 8 and 7.
B
. Flashing light connection
The flashing light can be installed anywhere. Connect light leads to quick connect terminals 6 and 5. Terminal
5 is ground.
28
8
9
7
3
2
5
4
L
O
C
K
L
I
G
H
T
6
1
ENROLL
FAIL
RETRY
SEND
PASS
READY
ENROLL
29
1. Model C379 Fingerprint keyless entrypad
2. Model 84335AML 3 channel mini remote control
3. Model 84330AML 1 channel remote control
4. Model 8747AML keyless entry system
5. Model 770AML or C77 The Protector System
TM
6. Model 845AML Multi-function control panel
7. Model 75AML Illuminated button
8. Model 760AML Outdoor keyswitch
9. Model 1702AML or CM1702 Outside quick release
14
SPECIAL FEATURES
ACCESSORIES
