4
2
3
W
H
T
-
2
R
E
D
-
1
6
6mm
1
2
4
WHT
RED
1
4
LO
C
K
L
I
G
H
T
3
3
2
3
Multi-function wall control
Backlit push button
Operation of the door control using the multi-function door control
Press the push bar (1) to open or close the door. Press again to stop the door.
Light feature
Press the light button (2) to turn the opener light on or off, (it will not control the
opener light when the door is in motion). If you turn it on and then activate the opener,
the light will remain on for 2-1/2 minutes. Press again to turn it off sooner.
Lock feature
Designed to prevent operation of the door from hand-held remote controls. However,
the door will open and close from the door control, the outside keyswitch and the
keyless entry accessories.
To activate, press and hold the lock button (3) for 2 seconds. The push bar light will
flash as long as the lock feature is on.
To turn off, press and hold the lock button again for 2 seconds. The push bar light will
stop flashing. The lock feature will also turn off whenever the “LEARN” button on the
opener panel is activated.

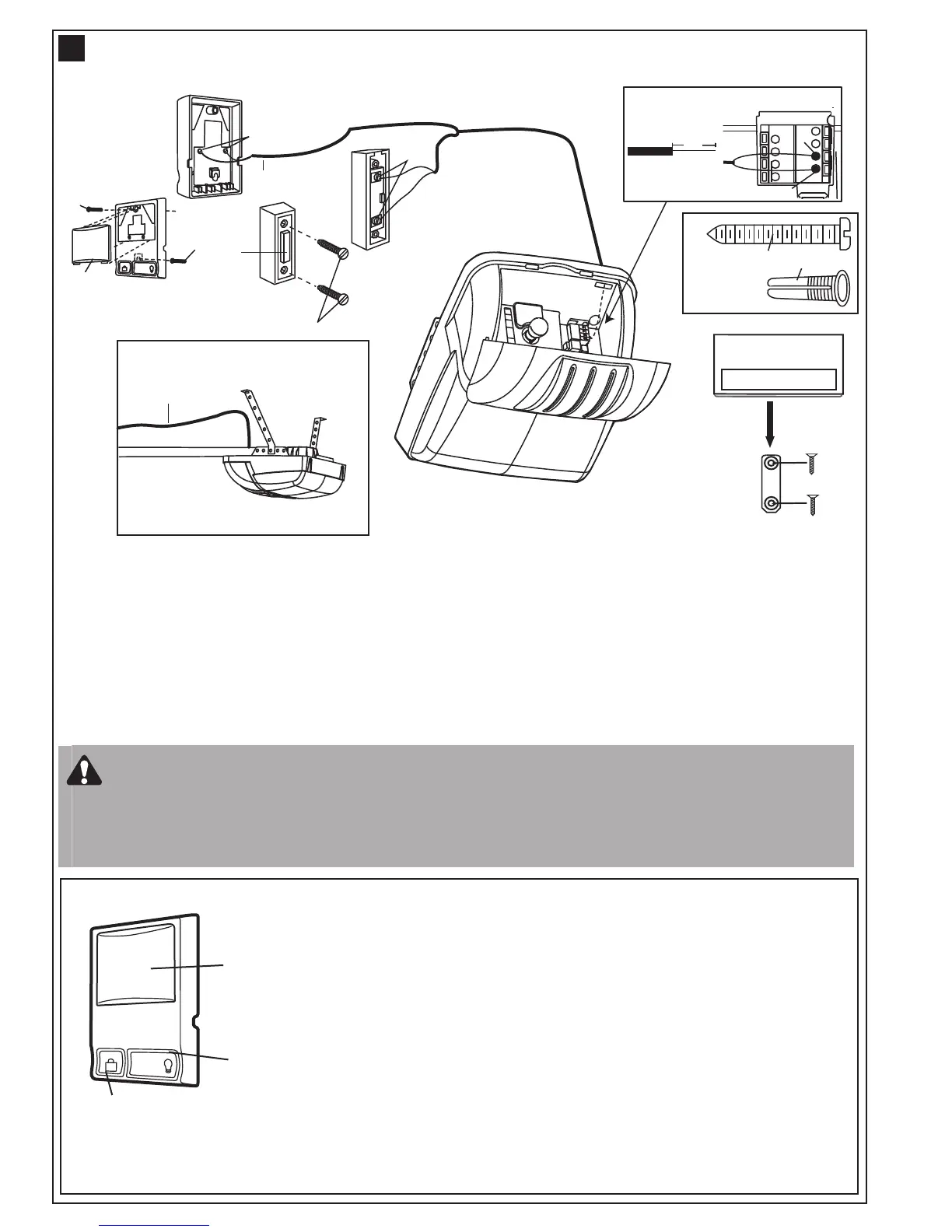

INSTALL DOOR CONTROL (OPTIONAL)
27
Locate door control where the garage door is visible, away from door and door hardware and out of
the reach of children. Mount at least 1.5 m (5 feet) above the floor.
Serious personal injury from a moving garage door may result from misuse of opener. Do not allow
children to operate the door control or remote control transmitter.
Permanently fasten the caution label to the wall near the door control as a reminder of safe operating
procedures.
1
2
3
13
Installation
There are 2 terminals (1) on the back of the door control. Strip about 6mm (1/4") of insulation from bell wire (4).
Separate wires enough to connect the white/red wire to RED terminal screw (1) and the white wire to WHT terminal
screw (2).
Fasten the door control to an inside garage wall with sheet metal screws (3) provided. Drill 4mm (5/32") holes and
use anchors (6) if installing onto plasterboard wall. A convenient place is beside the service door and out of reach
of children.
Run the bell wire up the wall and across the ceiling and connect to the garage door opener quick connect terminals
which are located behind the light lens of the opener. Connect the bell wire to the terminals as follows: white/red to
red (1) and white to white (2).Use a screwdriver or pen to press open the spring terminals, then insert the cable into
the terminal.
