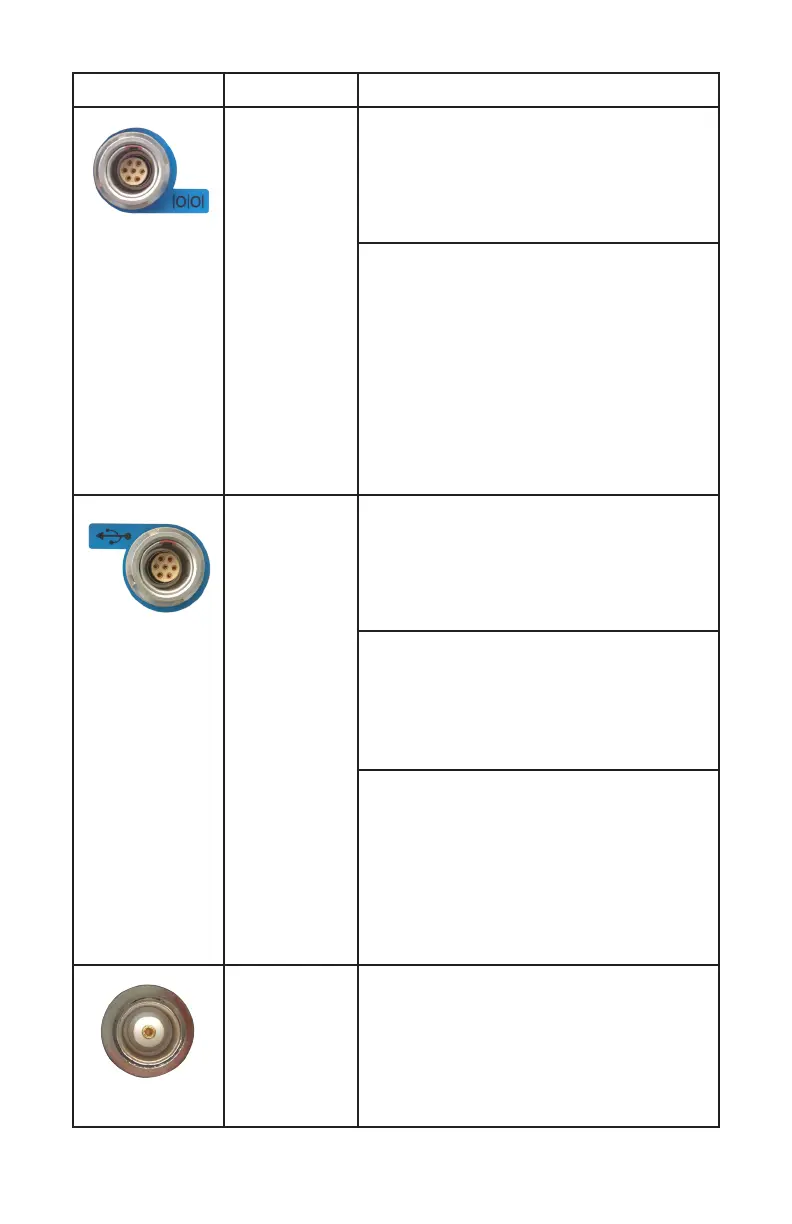

Port Name Description
I/O Port This port is a 7-pin Lemo
connector that supports RS-232
communications and external
power.
Users can use the optional GPS
to PC Data Cable to realize
RS-232 communications
between the receiver and
computer or controller. Also,
users can use the 7-pin cable to
transmit differential data to an
external radio.
USB Port This port is a 7-pin Lemo
connector that supports USB
communications and external
power.
Users can use the USB Cable
supplied with the system to
download the logged data to a
computer.
The optional OTG Cable can be
used to upgrade the
receiver firmware by connecting
the receiver to a USB flash disk
or directly log the static data to
a USB flash disk.
Radio
Antenna
Connector
Connect the UHF radio
antenna to the internal radio
of the receiver. This connector
is not used if you are using an
external radio.
