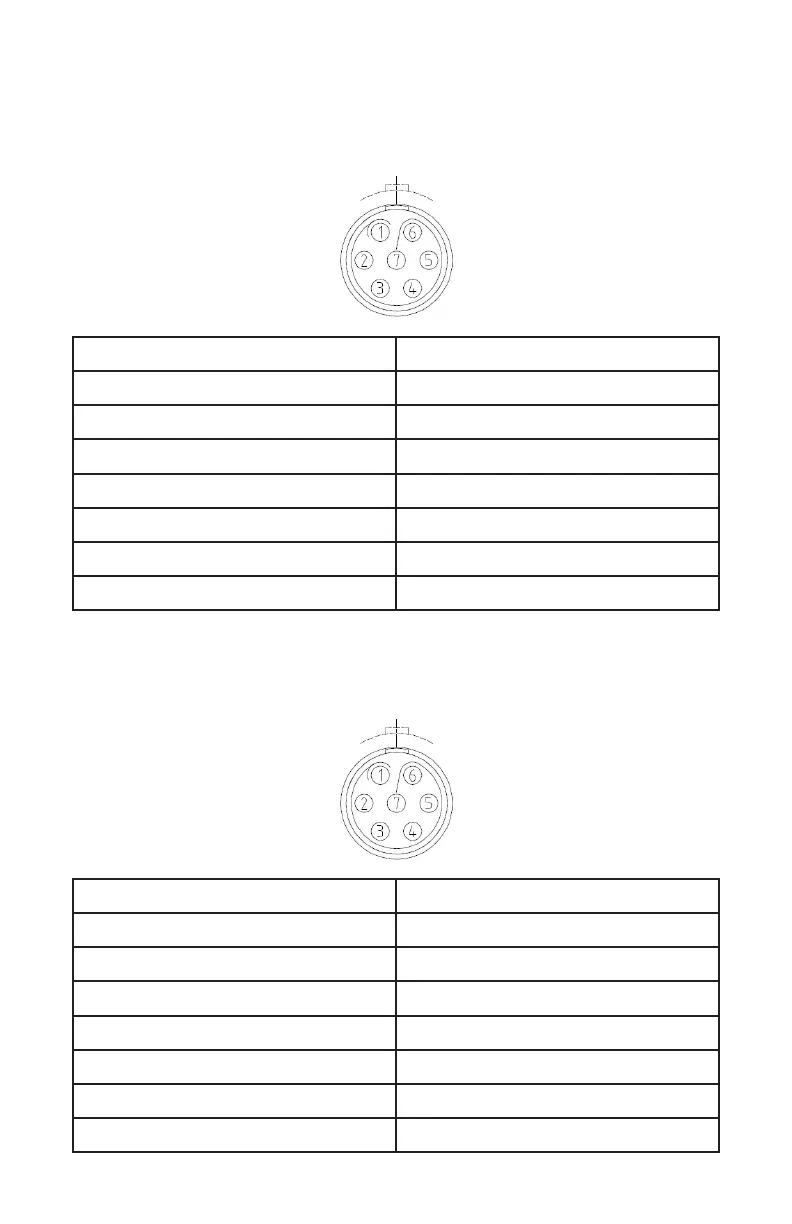

A. Communication Ports Deﬁnition

A.I. Champion PRO Receiver I/O Port (7-Pin Lemo Port)

Deﬁnition

A.II. Champion PRO Receiver USB Port (7-Pin Lemo Port)

Deﬁnition

Pin Function

1 Ground ( - )

2 Ground ( - )

3 RS232-TX (Output)

4 Not Used

5 Not Used

6 VIN

7 RS232-RX (Input)

Pin Function

1 Ground ( - )

2 Ground ( - )

3 VBUS

4 DM

5 DP

6 VIN

7 ID
